FORM NO. 56043107 - Advolution™ 2710 / UHR 70-1700 - 55
Item Description
A1 Speed Controller
CB1 Circuit Breaker, 5 Amp (Control)
CB2 Circuit Breaker, 40 Amp (Traction Drive)
F1 Fuse, 150 Amp
H1 Horn / Back-Up Alarm
K1 Contactor 36V (Pad Motor)
LP5 Headlight (Optional)
LP6 Beacon, Warning (Optional)
M1 Motor / Drive Wheel
M2 Motor (Pad Drive)
M3 Actuator, Motor
M4 Dust Control Vac Motor (Optional)
R1 Potentiometer, 5K
S1 Switch, Key (Main)
S2 Switch, Seat
S3 Sensor, Proximity
S10 Disconnect, Emergency

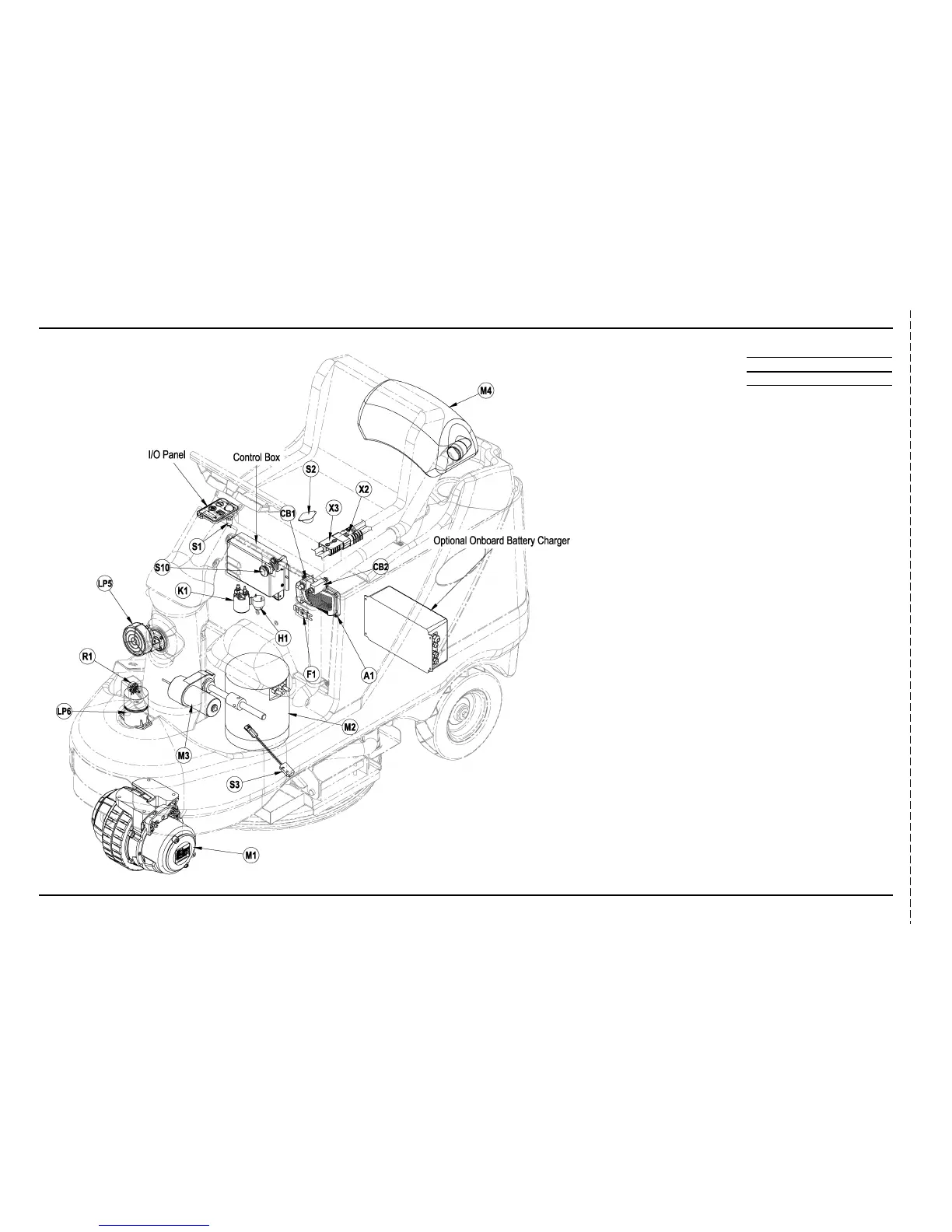

COMPONENT LOCATION
ELECTRICAL SYSTEM
