WHEEL DRIVE SYSTEM
ELECTROMAGNETIC BRAKE ASSEMBLY REMOVAL
WARNING!
Disconnect the battery pack by separating the battery connectors (7) whenever servicing the machine.
1 Disconnect battery and block rear wheels so that the machine will not roll when the brake is removed.
2 See Figure 8. Remove the (2) Nuts (A) then the Brake Cover (B).
3 Remove brake wiring at motor terminal block secured by (2) hex nuts.
4 Remove the (3) Screws (C) using a 4mm socket key wrench.
5 Separate the 3 parts that make up the brake assembly, items (D) Electromagnetic Housing, (E) Brake Rotor and (F) Brake Backing Ring.

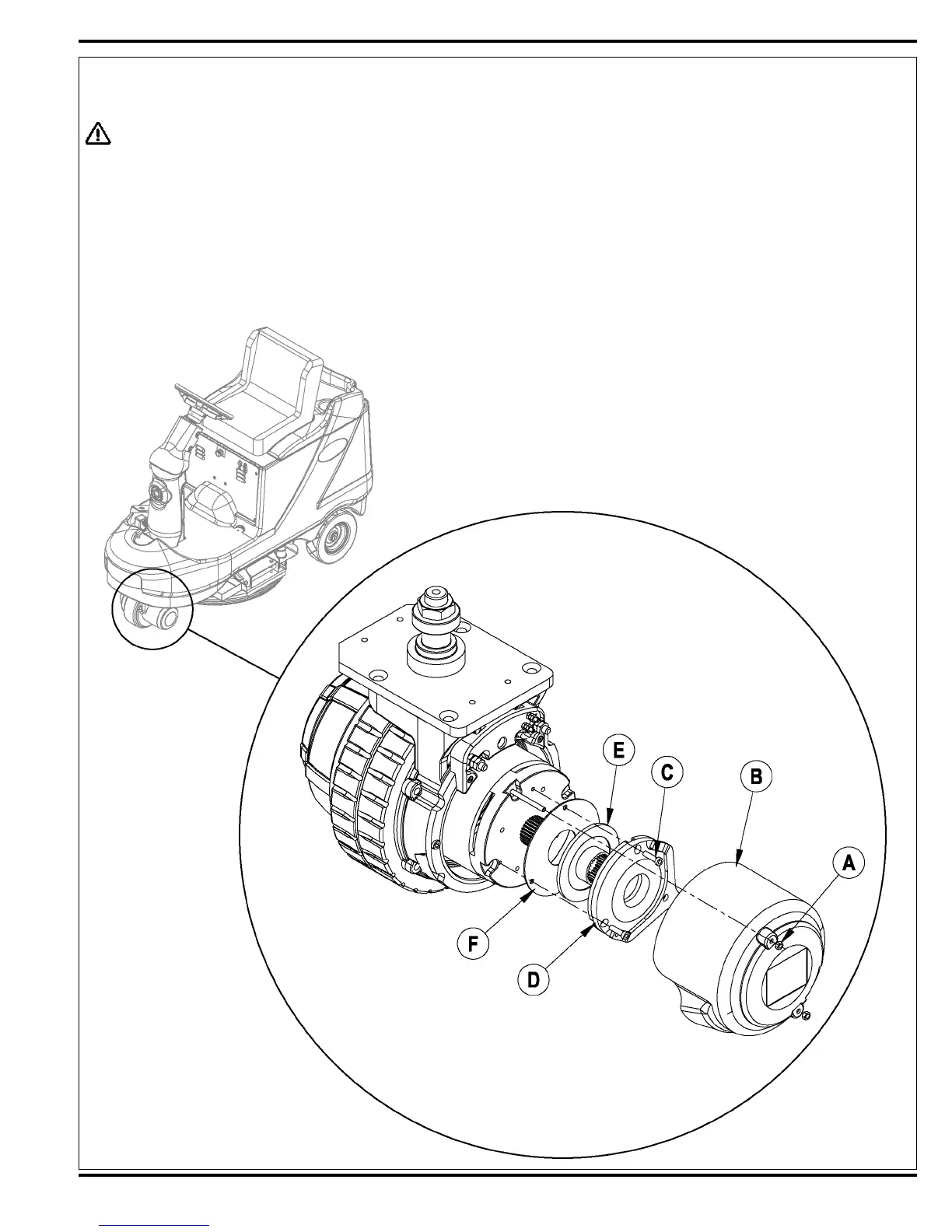

FIGURE 8
