Notifier AFP-2800 User Manual

Appendix
AFP-2800/2802 Manual – P/N 11249 11-Mar-08 113
8
8
.
.
7
7
.
.
3
3
L
L
O
O
O
O
P
P
I
I
N
N
T
T
E
E
R
R
F
F
A
A
C
C
E
E
M
M
O
O
D
D
U
U
L
L
E
E
(
(
L
L
I
I
M
M
)
)

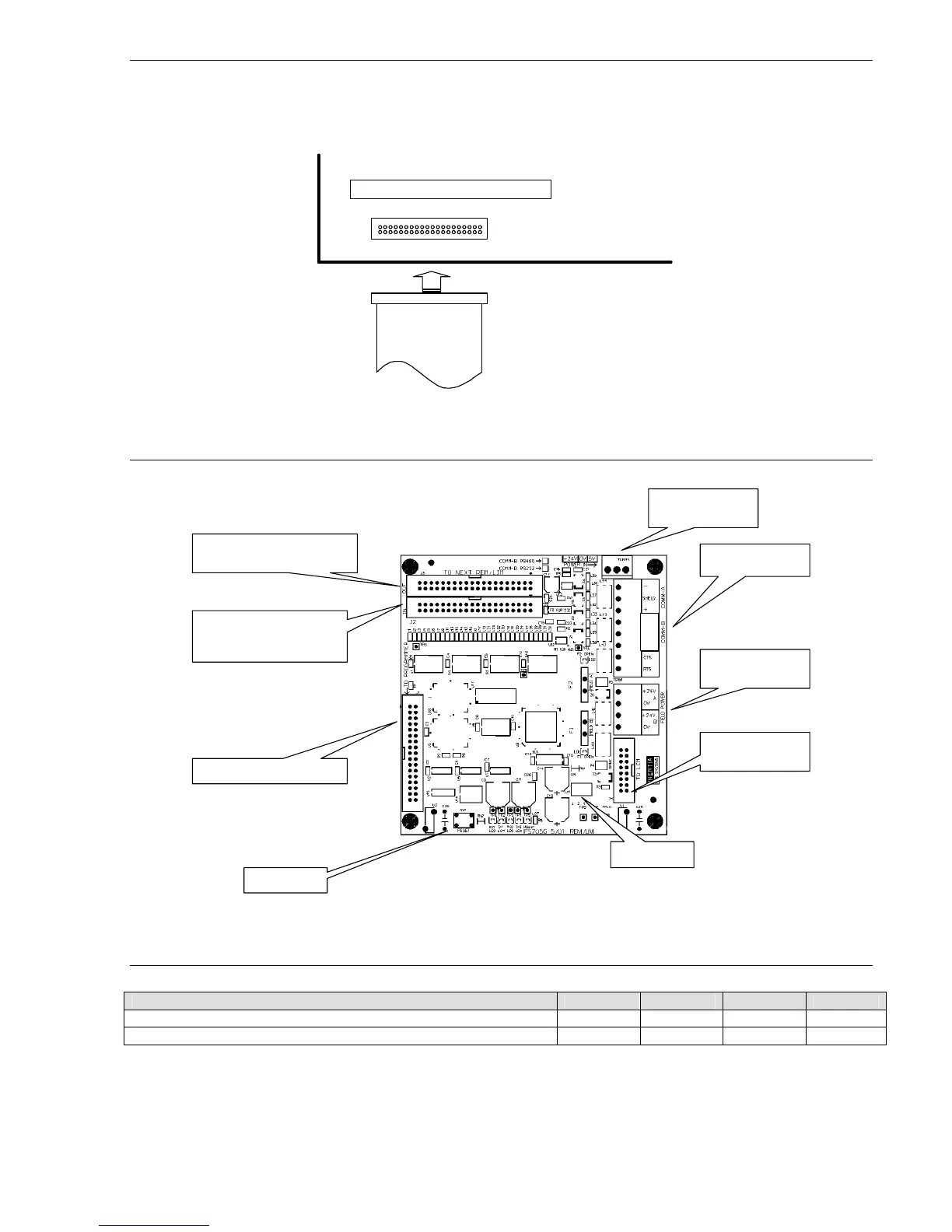

To Network Interface Module OR
Loop Interface Module if no NIM
exists
40 WAY
RIBBON
CABLE
MAIN TERMINATION BOARD (FIM)
J3
N
ot u
sed on LIM
Ribbon cable from FIM or
NIM (if fitted)
Power c
onnector
from FIM
Not used on LIM
Not used on LIM
20 way ribbon cable
to LCM/LEM boards
Factory Programming Port
Reset Switch
Address Switch
TX/-
S HIELD
RX/+
Address Settings:
Description
SW1 SW2 SW3 SW4
Loop Interface Module (For use with LCM’s)
OFF ON OFF OFF
Network Interface Module (For use with NCM’s)
ON ON OFF OFF
