Appendix C Maintenance Manual for Second Tray unit
43984801TH Rev.1
145 /
Oki Data CONFIDENTIAL
Appendix C Maintenance Manual for Second Tray unit
1 Overview
1.1 Function
The extended paper feed unit is installed under the printer. the device performs the auto paper feed by
the operation of the pulse motor (hopping) to control a signal from the printer.
The main function is as follows:
• Available paper
：
[Paper Type]
• Standard paper: (Ream weight 55 to 105 kg) A4, A5, B5, Custom, LETTER, Executive, LEGAL 13,
LEGAL14
*Tthe custom is 148 to 215.9mm for width and 210 to 355.6 mm for length.
[Weight/ Thickness]
•Standard paper (Ream weight 55 to 105kg)
1.2 Exterior and Parts Name

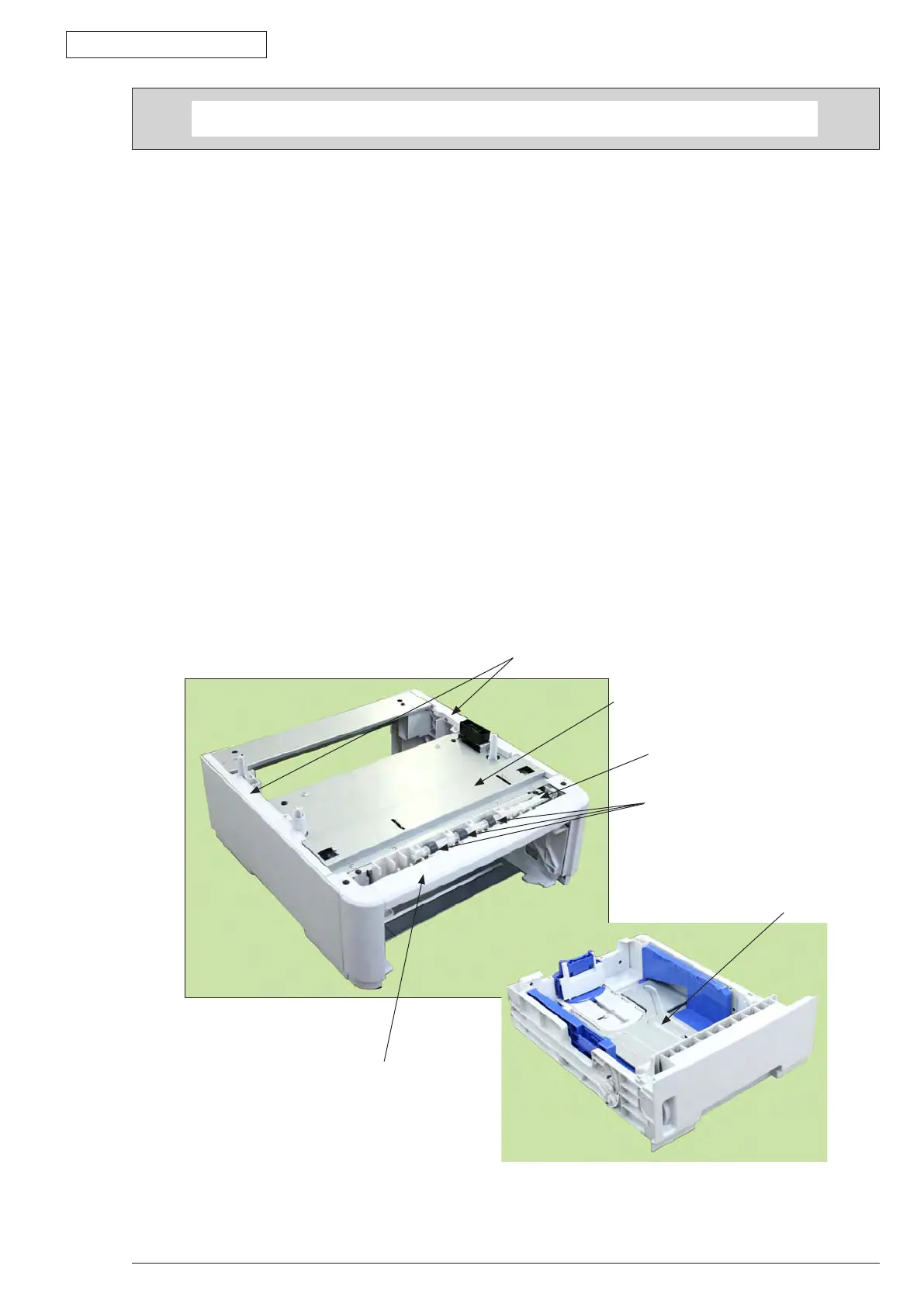

Figure.1-1 Exterior and Parts Name
Cover-Top-Opt
Plate-Top
Sheet Receive
Roller-Feed
Shaft-Roller-Feed(Opt)
Cover-Front
To Next Page
