3. Parts replacement

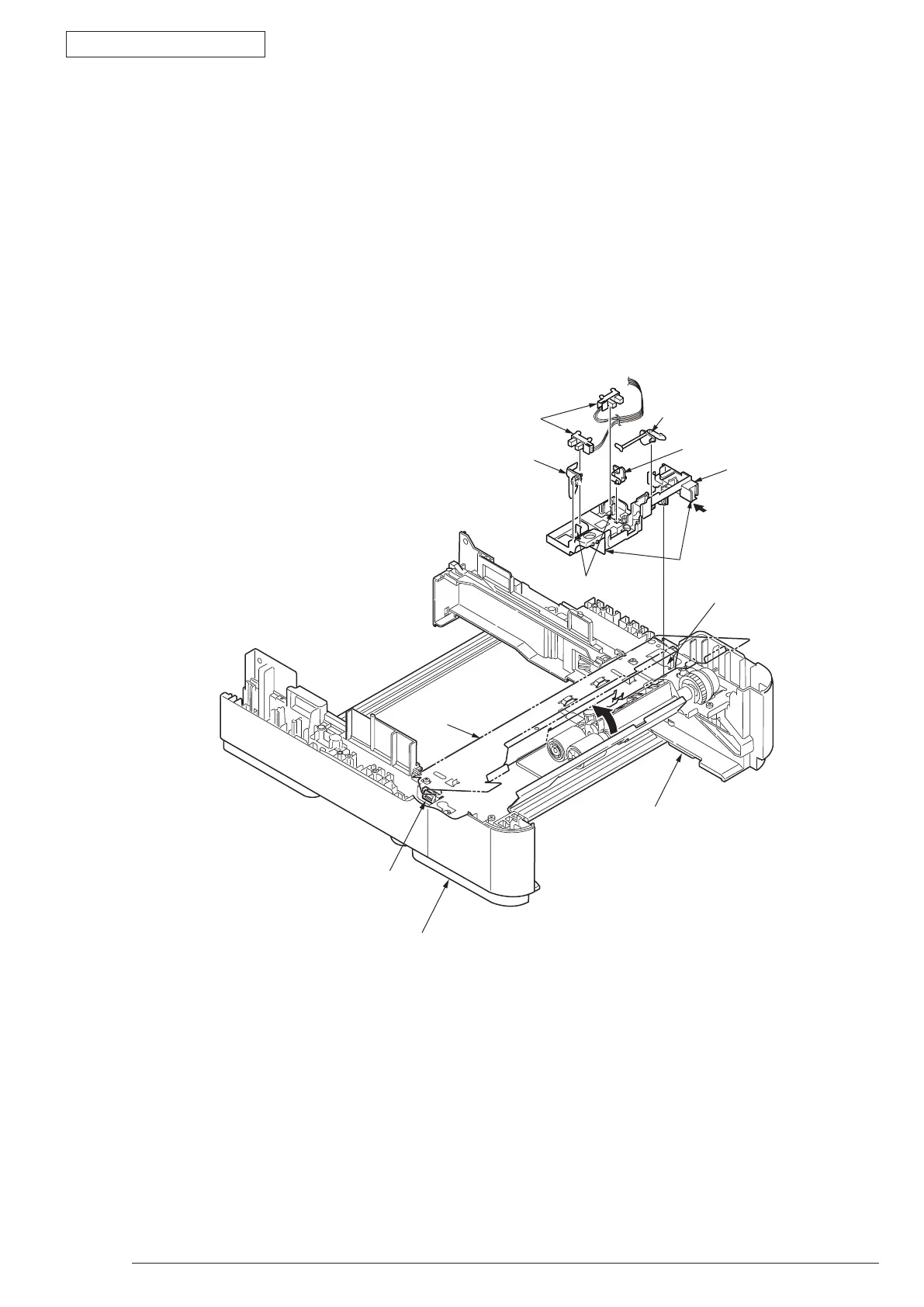

3.3.23 Lever-End/Lever-Duplex/Lever-Cassette/Gear-Assy-Clatch
(1) Remove Frame-Assy-Lower and PCB-Assy.
(2) Press claw
Ⓐ
by the arrow direction. Remove Holder-SNS
①．
(3) P
ress the clamp of Lever-End
②
by the up direction and then remove it.
(4) P
ress the clamp of Lever-Duplex
③
by the up direction and then remove it.
(5) P
ress the clamp of Lever-Cassette
④
by the up direction and then remove it.
(6) O
pen claw
Ⓑ
and remove Photo-Interrupter
❺．
(7) H
old up Plate-Base-Assy
⑥
from the claw of Guide-Cassette-L, Guide-Cassette-R and remove Plate-
Base-Assy
⑥
.
Claw B
Claw A
Claw
Claw
①
③
❺
②
④
⑥
Guide-Cassette-R
Guide-Cassette-L

Oki B410 Specifications

General

Print Technology	LED
Input Capacity	250 sheets
Connectivity	USB 2.0
Memory	32 MB
Duplex Printing	Manual
Maximum Paper Size	A4
Operating Systems Supported	Windows, Mac OS
Power Consumption	450W (average)
Output Capacity	150 sheets
