3. Parts replacement

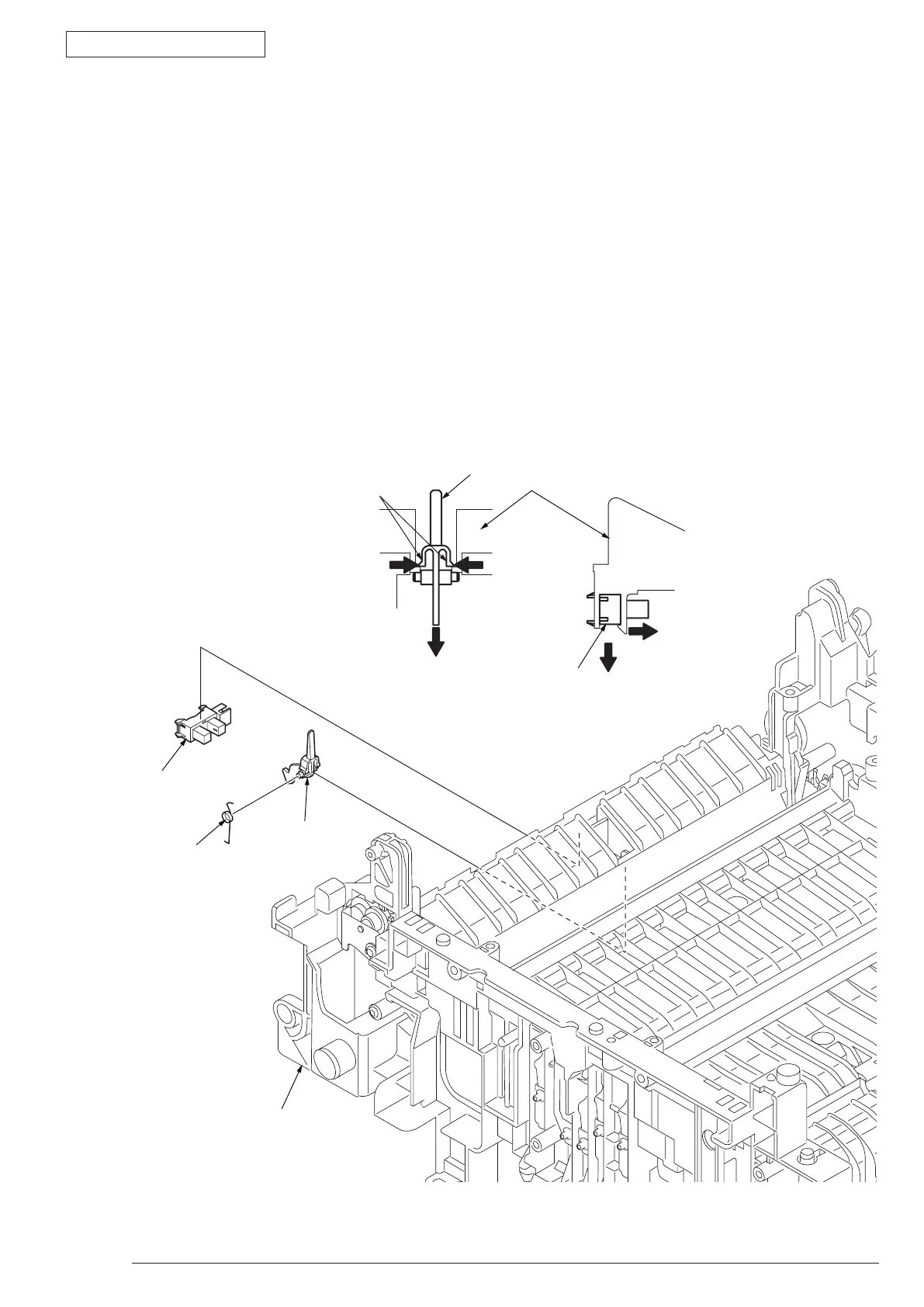

3.2.22 Lever-Eject-Sensor/Photo-Interrupter
(1) Open Rear-Cover-Assy.
(2) Open Stacker-Cover-Assy.
(3) Remove Frame-Assy-Lower. (Refer to 3.3.16)
(4) Press the clamp of Lever-Eject-Sensor
（
Exit
）❶
. Press Lever-Eject-Sensor
❶
as down direction and
remove it. While remove Lever-Eject-Sensor
❶
, beware of not to loss or break Spring-SNS
❷
.
(5) P
ress the claw of Frame-Assy-Lower as the arrow direction. Remove Photo-Interrupter
③
by down
direction.
(6
) Installing is performed by the inverse procedure with removing.
(Note on removing / installing)
1. B
eware of not to touch the DC motor inattentively (Do not rotate motor).
❷
❶
③
③
❶
Frame-Assy-Lower
Frame-Assy-Lower
Clamp
