3. Parts replacement

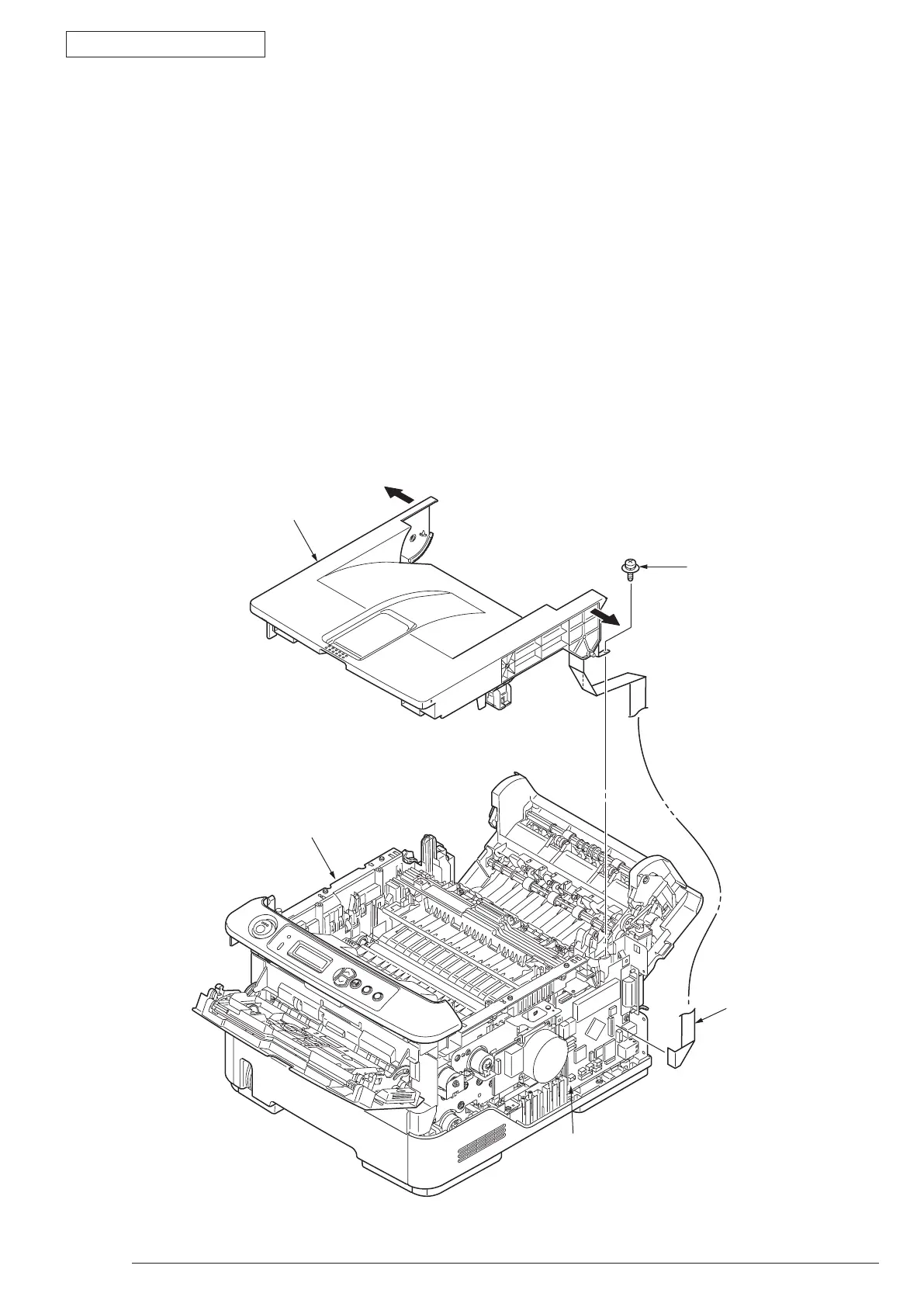

3.3.13 Stacker-Cover-Assy
(1) Open the Rear-Cover-Assy.
(2) Open the Stacker-Cover-Assy.
(3) Remove Cover-Side-R and Cover-Side-L. (Refer to 3.3.3/3.3.4)
(4) Remove Plate-Cover-Shield-CU. (Refer to 3.3.5(2))
(5) Remove film-Core-Holder. (Refer to 3.3.7(5))
(6) Remove LED cable from CU board.
(7) Remove the screw (Silver)
①
.
(8) O
pen the Stacker-Cover-Assy
②
by the arrow direction and remove Stacker-Cover-Assy
②
from the
supporting point of Frame-Assy-Lower.
(9) I
nstalling is performed by the reverse procedure with removing.
(Note on removing / installing)
1. B
eware of not to touch the DC motor inattentively (Do not rotate motor).
①
②
LED cable
CU board
Frame-Assy-Lower
