Oki B410 User Manual

Appendix C Maintenance Manual for Second Tray unit
43984801TH Rev.1
163 /
Oki Data CONFIDENTIAL
SNS
CN3
CN2
CN1
CN3
HCLTGND 2
HCLTON-P 1
Gear-Assy-Clatch
HOP1 1
HOP2 2
HOP3 3
HOP4 4
SCLK-N 1 DATA-N 2 SDP-N 3 OPCNT-N 4 0V 5 +5V 6 0VP 7 +24 8
CN2
CN1
M
Connection to the printer

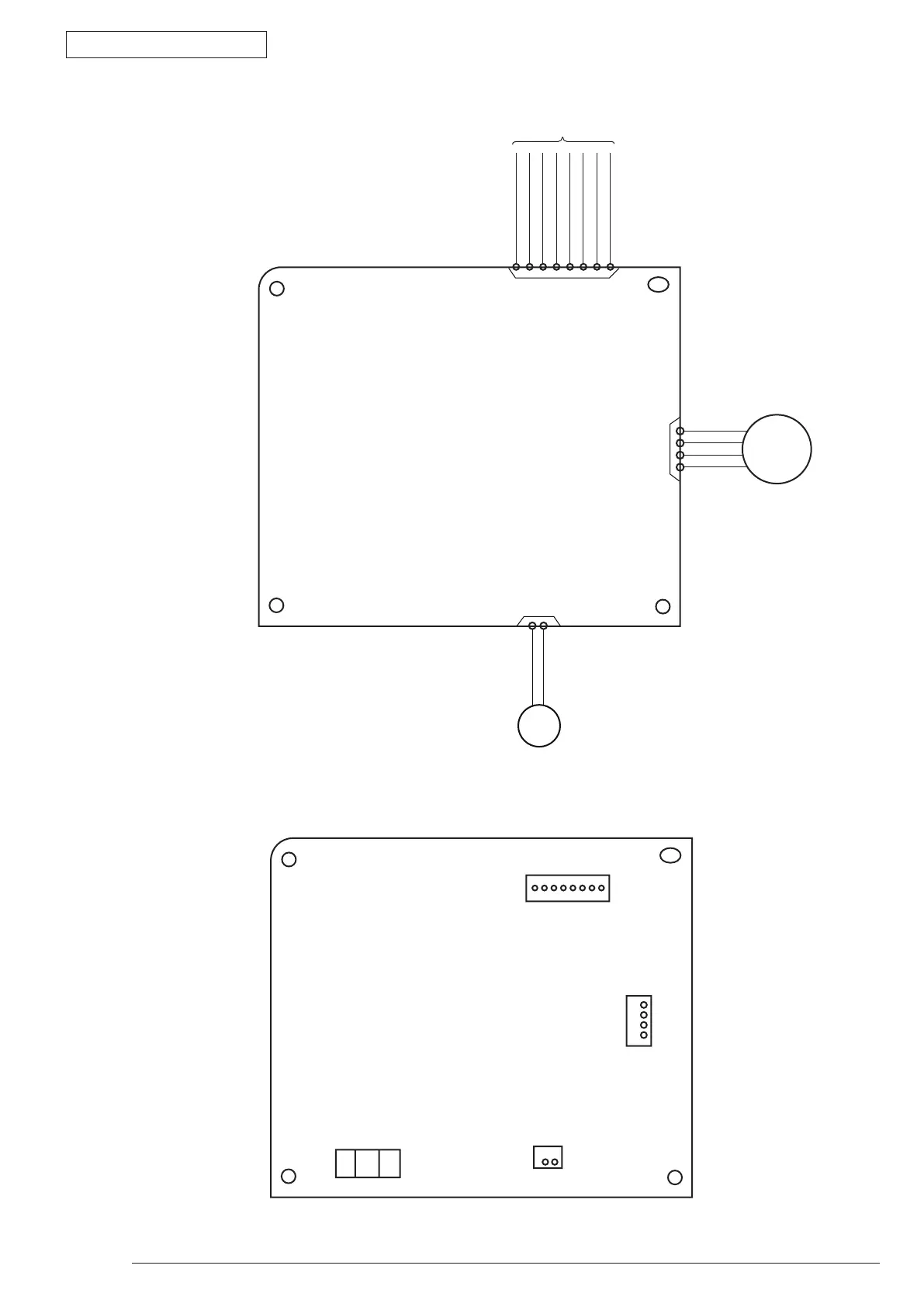

6. Connection Diagram
6.1 Connection diagram
6.2 Board Arrangement
OT7 board
