3. Parts replacement
3.3.12 Guide-Paper-Duplex
(1) Open the Rear-Cover-Assy.
(2) Open the Stacker-Cover-Assy.
(3) Remove Cover-Side-R and Cover-Side-L. (Refer to 3.3.3/3.3.4)
(4) Remove OPE Cover-Assy. (Refer to 3.3.7)
(5) Remove MPT-Assy. (Refer to 3.3.9)
(6) Remove Front-Guide-Assy. (Refer to 3.3.10)
(7) Remove Roller-Assy-Feed. (Refer to 3.3.11)
(8) Remove Duplex-Assy.

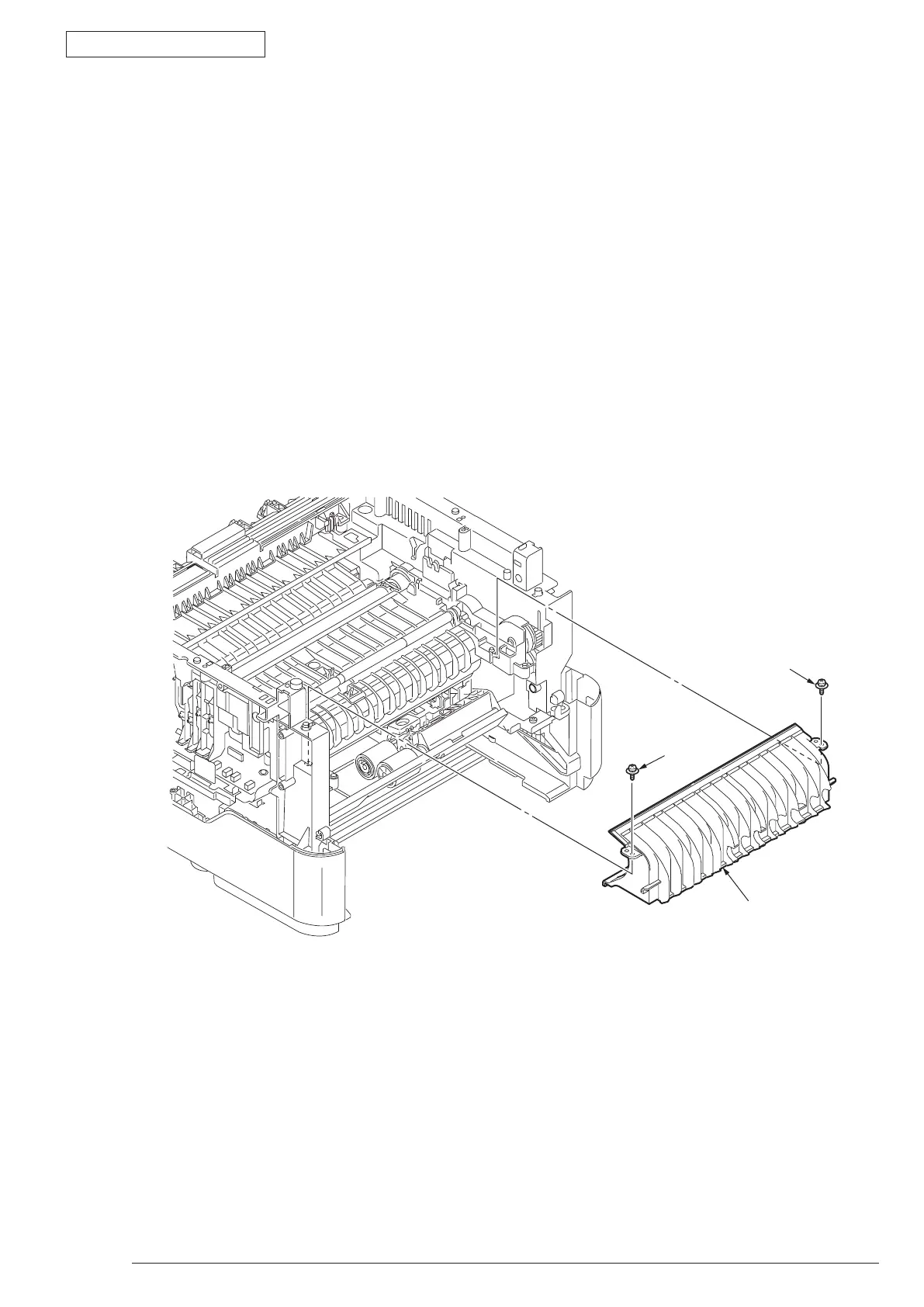

(9) Remove the 2 screws (Black)
①
. Remove Guide-Paper-Duplex
②
.
(10
) Installing is performed by the reverse procedure with removing.
(Note on removing / installing)
1. B
eware of not to touch the DC motor inattentively (Do not rotate motor).
