3. Parts replacement

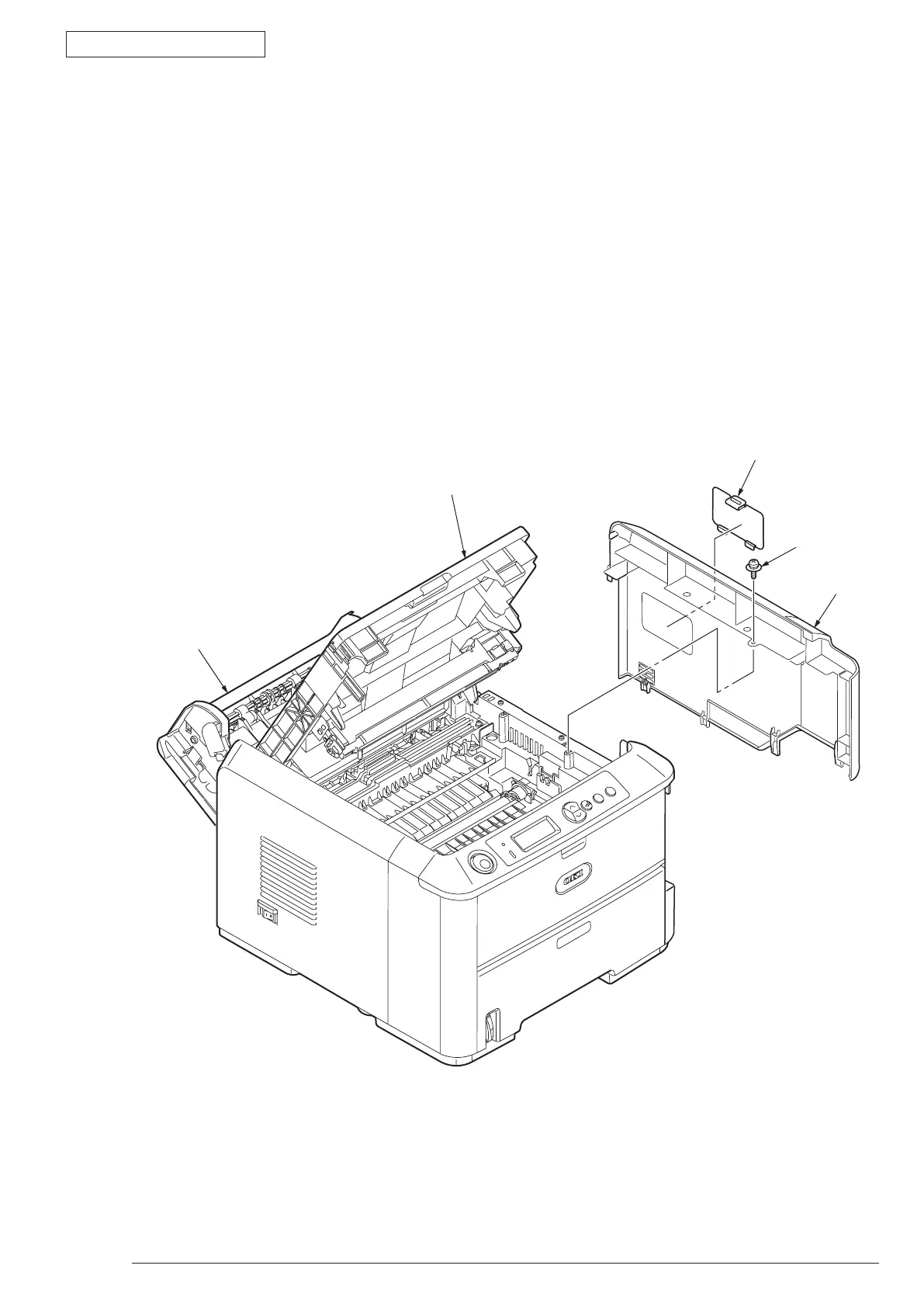

3.3.3 Cover-Side-R
(1) As the power switch shut off, unplug the AC power cord from the inlet of main unit.
(2) Unplug the interface cable from the main unit.
(3) Open the Rear-Cover-Assy.
(4) Open the Stacker-Cover-Assy.
(5) Take out the image drum cartridge.
(6) Remove the Cover-Access
①
.
(7) R
emove the screw (Black)
②
. Remove the Cover-Side-R
③
.
(8) I
nstalling is performed by the inverse procedure with removing.
(Note on removing / installing)
1. B
eware of not to touch the DC motor inattentively (Do not rotate motor).
Rear-Cover-Assy
Stacker-Cover-Assy
①
②
③
