3. Parts replacement

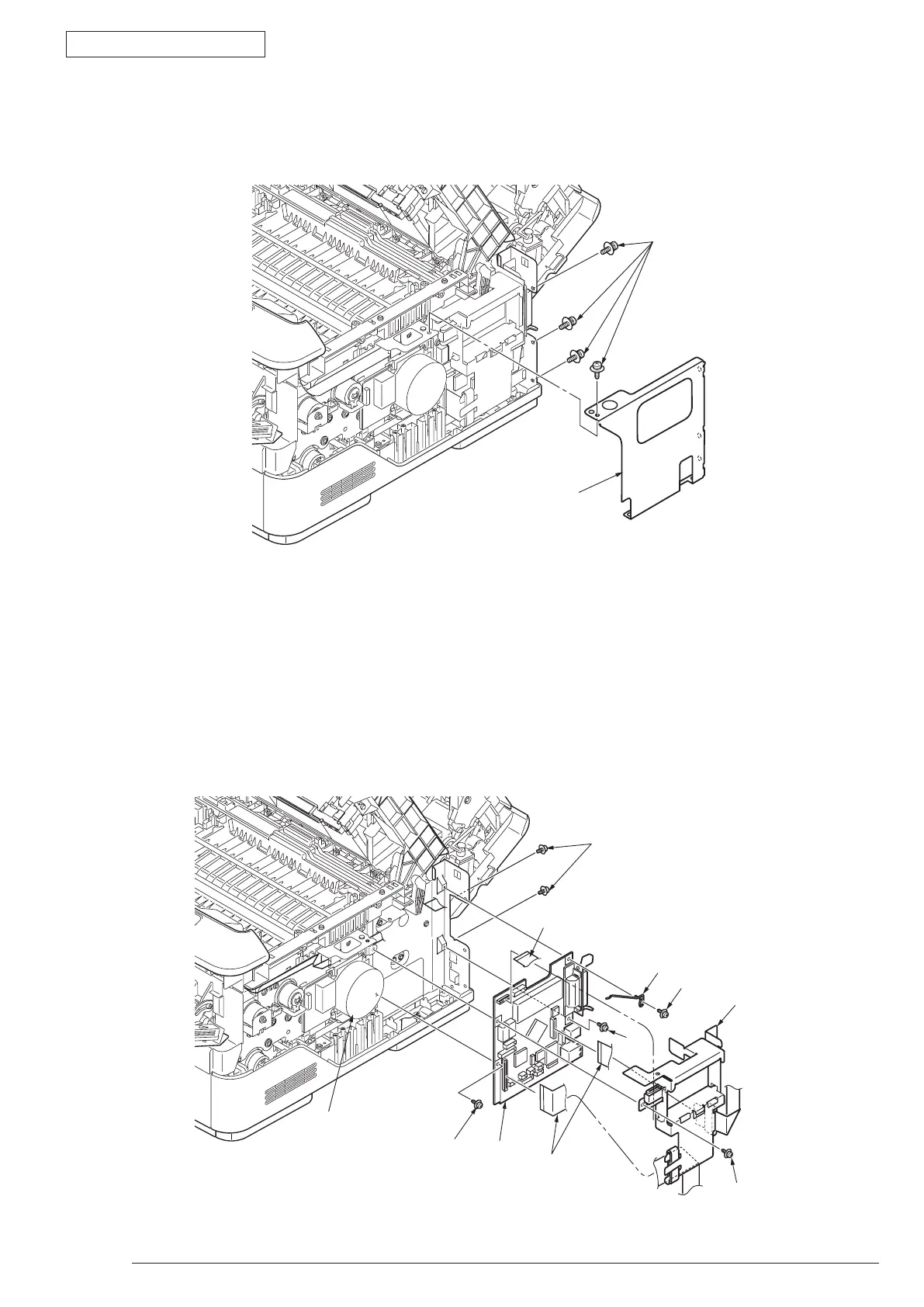

3.3.5 CU Board
(1) Remove the Cover-Side-R. (Refer to 3.3.3)
(2) Remove the 4 pieces of screws (Silver)
①
. Remove the Plate-Cover-Shield-CU
②
.
②
①
⑥
④
⑤
③
⑦
⑨
⑦
DC motor
③
⑤
❽
(3) Remove the 2 pieces of big screws (Silver)
③
. Remove the Film-Core-Holder
④
. In the meantime
remove the cable connector (with core)
⑤
together.
(4) Remove the 2 pieces of small screws (Silver)
⑥
, 2 pieces of big screws (Silver)
⑦
, and cable
connector from the CU board
❽
. Remove the Spring-FG-Solenoid
⑨
and CU board
❽
.
(5) I
nstalling is performed by the inverse procedure with removing.
(Note on removing / installing)
1. B
eware of not to touch the DC motor inattentively (Do not rotate motor).
2. B
eware of not to tuck down the cable while installing the Plate-Cover-Shield-CU
②
.

Oki B410 Specifications

General

Print Technology	LED
Input Capacity	250 sheets
Connectivity	USB 2.0
Memory	32 MB
Duplex Printing	Manual
Maximum Paper Size	A4
Operating Systems Supported	Windows, Mac OS
Power Consumption	450W (average)
Output Capacity	150 sheets
