Appendix 6 Preparing Cables for Computer Connection
A-22

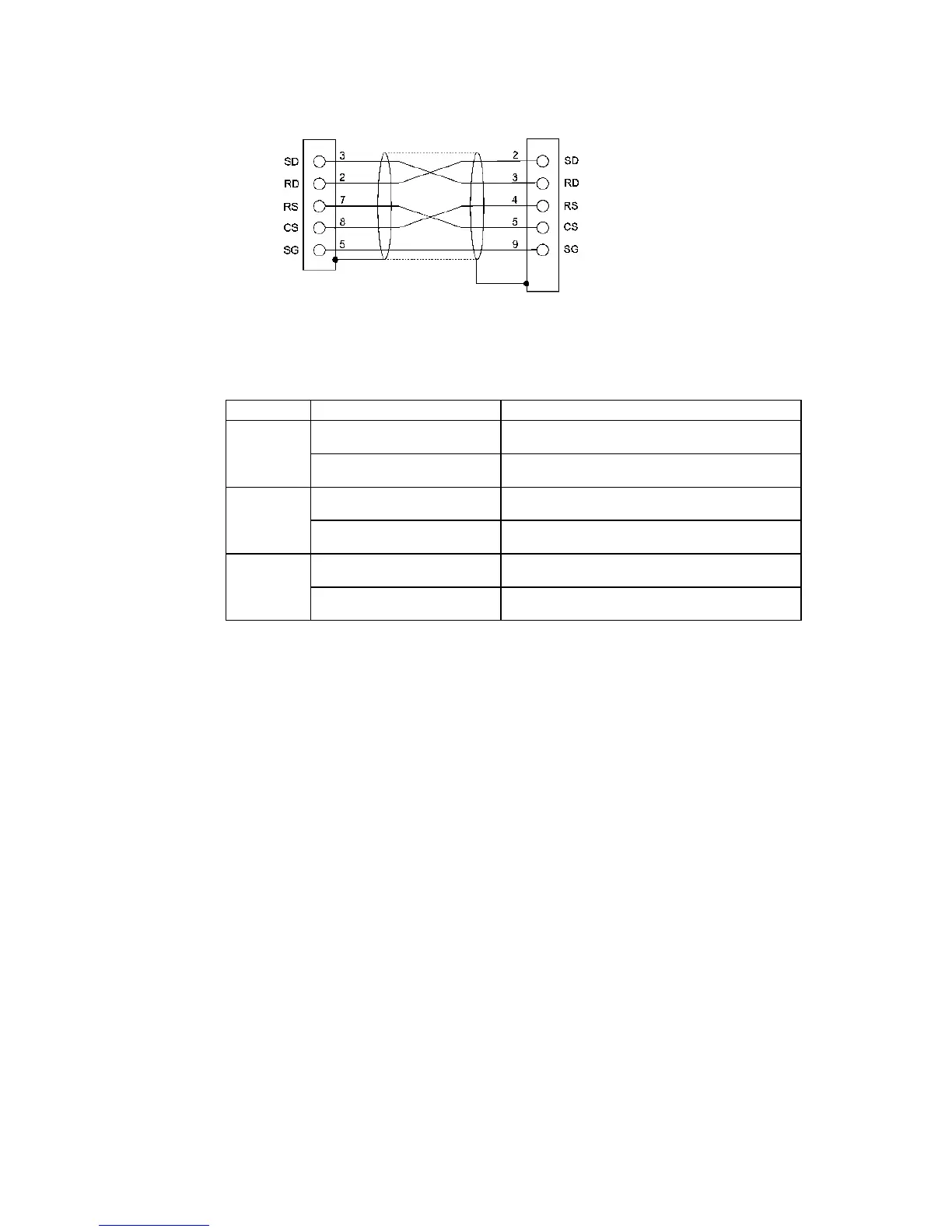

· 9-pin Connector
Use the following products to assemble the connecting cable.
Name Model Details
XM2D-0901 9-pin type
Manufactured by OMRON (computer side)
Connector
XM2A-0901 9-pin type
Manufactured by OMRON (PT side)
XM2S-0911 9-pin type, mm screws
Manufactured by OMRON.
Connector
hood
(See note.)
XM2S-0913 9-pin type, inch screws
Manufactured by OMRON.
AWG28 ´ 5P IFVV-SB Multiconductor shielded cable
Manufactured by Fujikura Densen.
Cable
CO-MA-VV-SB 5P ´ 28AWG Multiconductor shielded cable
Manufactured by Hitachi Densen.
Note: Use a connector hood for the computer that conforms to the standards for the screws of the
computer connector.
Computer
Connector hood
Shield
PT serial port
Connector hood
To Next Page
