3-8 Installing the Controller Link Interface Unit
3-55

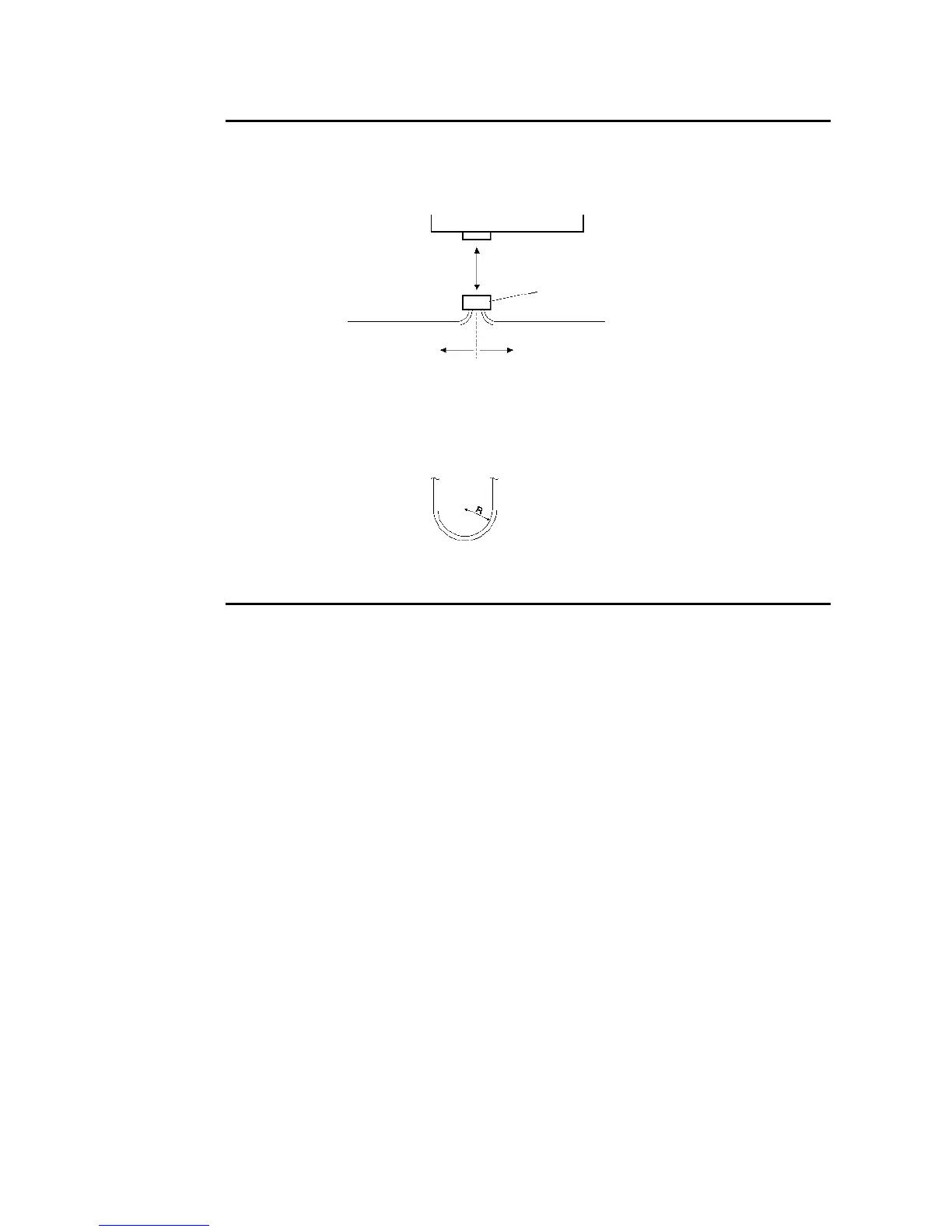

Note
· If the connector becomes disconnected, not only will the Board be unable to perform com-
munications with other nodes in the network, the network will be split into two at the point
of disconnection. Take the utmost care to ensure that the connector does not become dis-
connected during communications.
· Do not pull on the communications cable.
· When bending the communications cable, allow 60 mm or more for the bending radius (R).
· Do not place heavy objects on the communications cable.
· Supply power only after checking the wiring thoroughly.
· Always tighten the screws of connector after connecting the communications cable.
Controller Link Support Board
Communications disabled
Connector
Network split
(communications disabled)
To Next Page
