RS-232C and RS-422A/485 Wiring Section 3-4

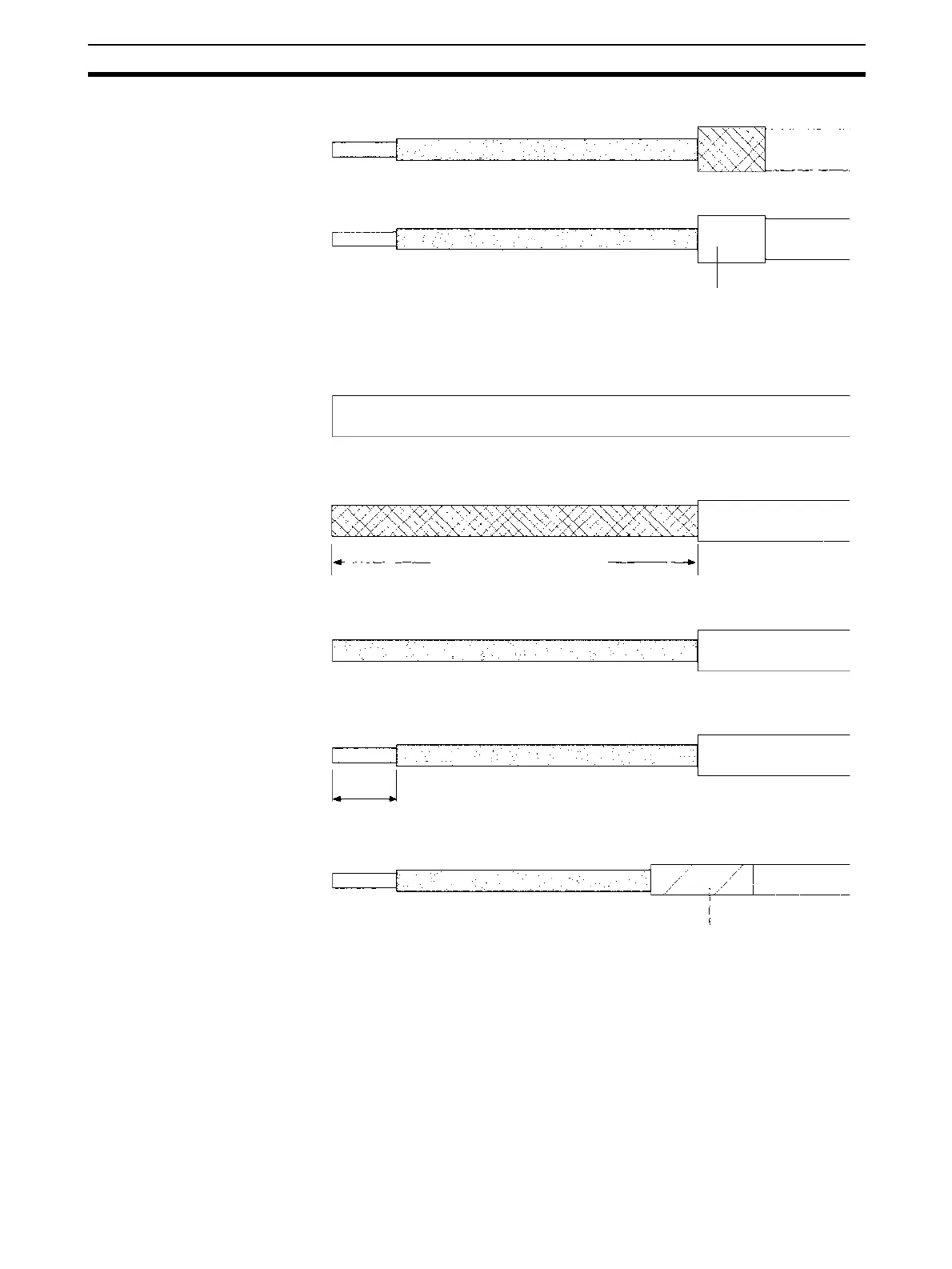

5. Fold back the braided shield.
6. Wrap aluminum foil tape around the folded shield.
Shield Not Connected to Hood (FG)
1,2,3... 1. Cut the cable to the required length.
2. Remove the specified length of the sheath from the cable using a knife. Be
careful not to scratch the braided shield.
3. Trim off all the braided shield using scissors.
4. Remove the insulation from each conductor using a stripper so that the ex-
posed conductor length is 5 mm.
5. Wrap adhesive tape around the conductor from which the braided shield
was removed.
3-4-4 Soldering
1,2,3... 1. Thread a heat-shrinking tube through each conductor.
2. Temporarily solder each conductor to the corresponding connector termi-
nals.
3. Completely solder each conductor.
Aluminum foil tape
25 mm (RS-422A)
40 mm (RS-232C)
5 mm
Adhesive tape
