3 Return to RUN mode
Press the button to move
the digit, press the button to
change the numeric value, and
set the time set to the timer.
to
* If the button is pressed
when the cursor is at the
right-most digit or the
button is pressed when the
cursor is at the left-most digit,
the setting will be canceled.
Press the button to apply
the setting.

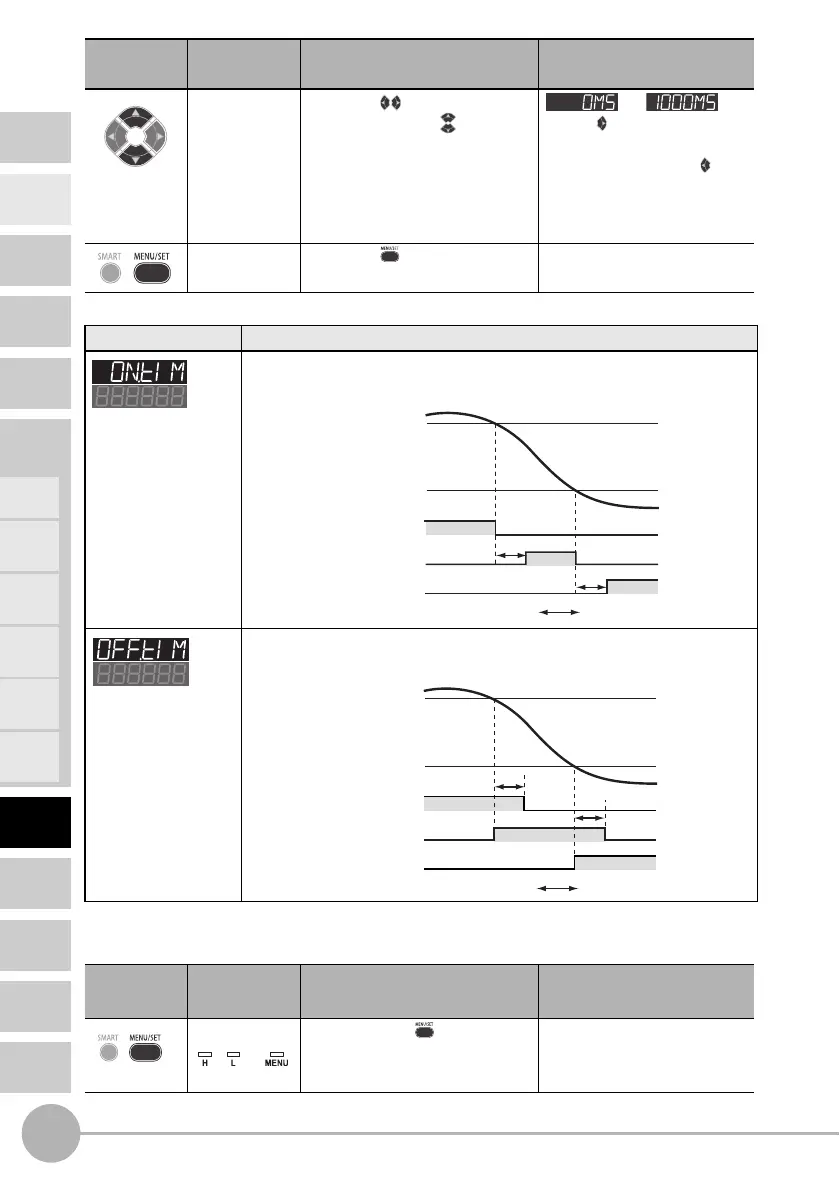

Selection menu Details
(ON-delay timer)
After the measurement result has been confirmed, the timer delays
turning ON of the PASS output for the time set to the timer.
(OFF-delay timer)
After the measurement result has been confirmed, the timer delays
turning OFF of the PASS output for the time set to the timer.
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Hold down the button for
three seconds to switch to the
RUN mode.
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Press to set.
[Change numeric value]
[Move digit]
ON
OFF
Measured value
HIGH threshold
LOW threshold
HIGH output
PASS output
LOW output
:Time set to time
r
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Measured value
HIGH threshold
LOW threshold
HIGH output
PASS output
LOW output
:Time set to time
r
Hold down for
3 seconds
Out
