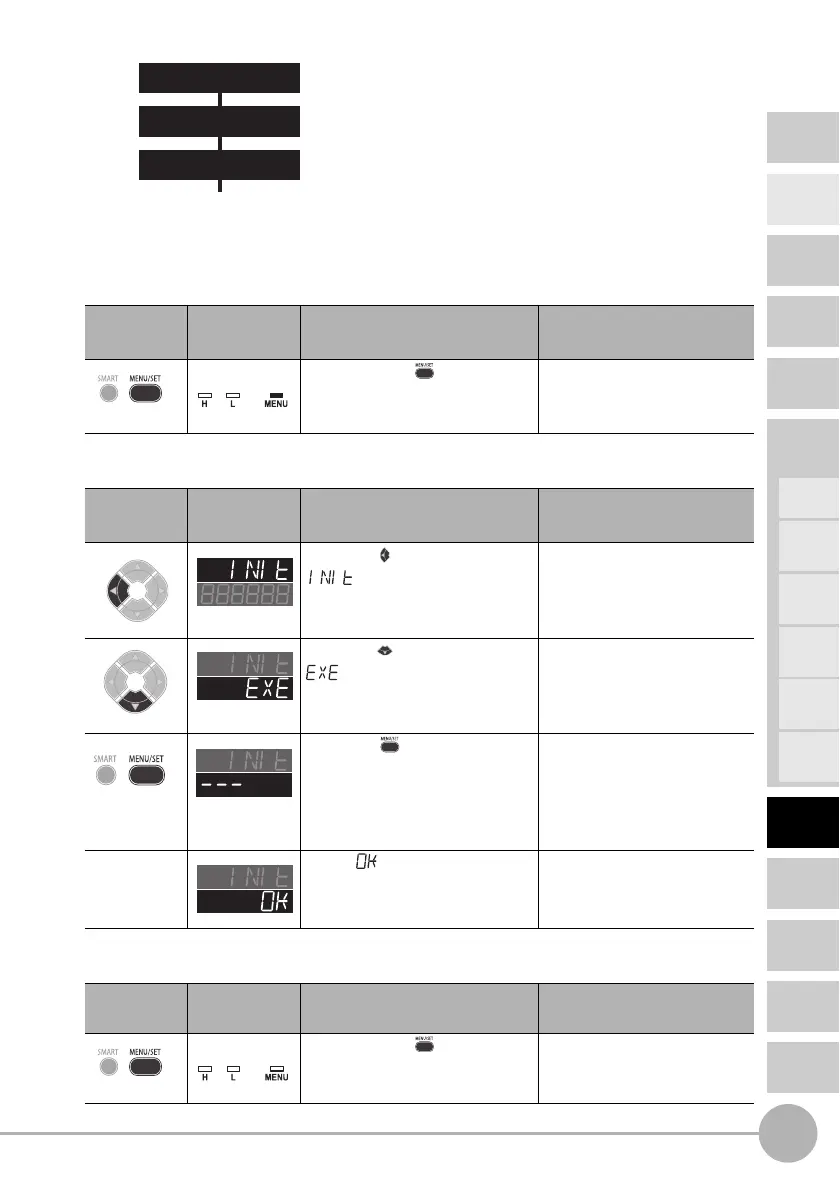

Procedure for initializing settings data
1 Set to the MENU mode
2 Setting data initialization
3 Return to RUN mode
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Hold down the button for
three seconds to switch to the
MENU mode.
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Press the button to display
.
Press the button to display
.
Displayed
1 digit at a time
Press the button.
When is displayed, this
means that initialization is
completed.
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Hold down the button for
three seconds to switch to the
RUN mode.
Setting data initialization
2
Return to RUN mode
3
Set to the MENU mode
1
Setting completed
Hold down for
3 seconds
Lit
Press to display.
Press to display.
Hold down
Hold down for
3 seconds
Out
