3 Return to RUN mode

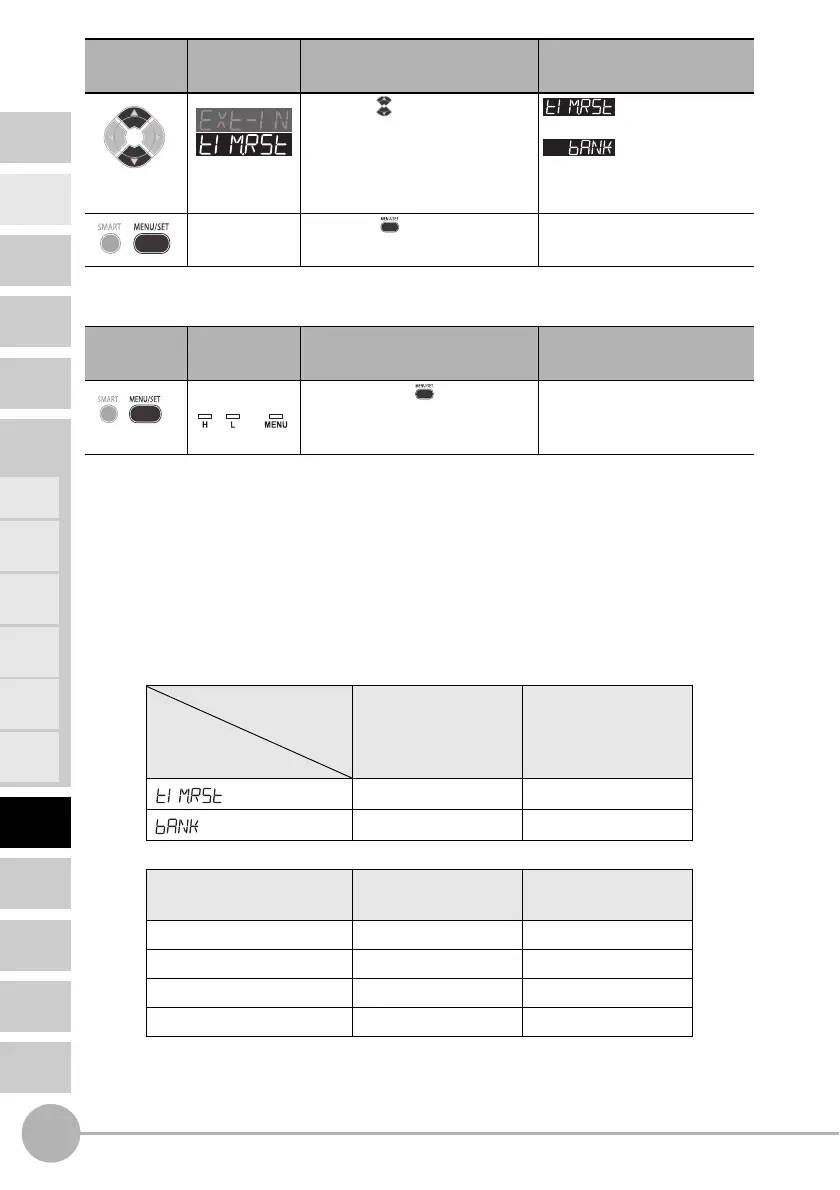

Procedure for executing external input
Each of the functions is executed when signals are input using the external input wire in
table 1 below.
Timing input, reset input and bank switching are executed by a signal input of 4 ms or
more. With bank switching, measurement is performed by the settings of the specified
bank while the signal in table 2 below is being input.
Table 1 External Input Wiring
Table 2 Bank Signal Switching Wiring
(Note) Bank signal switching is enabled only in the RUN mode.
Select the
desired value.
Press the button to select the
external input terminal. timing input/reset input
Bank switching
Press the button to apply
the setting.
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Hold down the button for
three seconds to switch to the
RUN mode.
Amplifier Unit
Connector
Cable Color
Setting
Purple Red
Timing input Reset input
BANK input 0 BANK input 1
BANK input 0
(purple)
BANK input 1
(red)
BANK 0 OFF OFF
BANK 1 ON OFF
BANK 2 OFF ON
BANK 3 ON ON
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Press to select
Hold down for
3 seconds
Out
