Analog Output
Analog output:
This refers to the conversion of measurement results to 4 to 20 mA current output or
to -5 to +5 V/1 to 5 V voltage output.

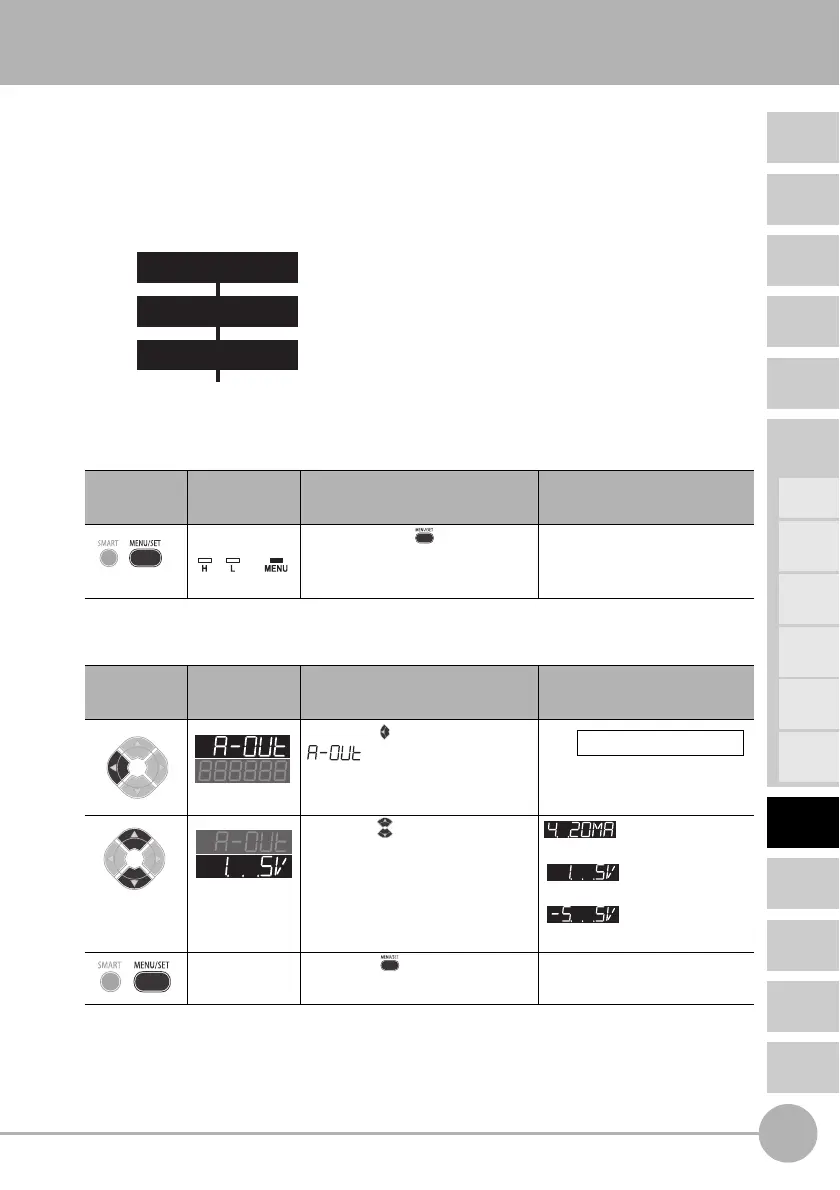

Procedure for setting up analog output
1 Set to the MENU mode
2 Analog output setting
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Hold down the button for
three seconds to switch to the
MENU mode.
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Press the button to display
.
Select the
desired value.
Press the button to select
analog output. Current output 4 to 20 mA
Voltage output 1 to 5 V
Voltage output 5 to +5 V
Press the button to apply
the setting.
Analog output setting
2
Return to RUN mode
3
Set to the MENU mode
1
Setting completed
Hold down for
3 seconds
Lit
Press to display.
Default value: -5 to +5 V
Press to select
