Part Names and Functions
19
ZX2 User’s Manual
INTRODUCTION
BASIC
SETUP
PREPARATION
FOR
MEASUREMENT
TROUBLE-
SHOOTING
INDEX
CONTENTS
SETTING
TRANSITION
CHARTS
FLOW OF
OPERATION
MAIN
APPLICATIONS
& SETTING
METHODS
DETAILED
SETTINGS
SPECIFI-
CATIONS
Height
Double
Sheet
Detection
Positioning
Eccentricity
and Surface
Deflection
Steps
and
Warpage
Thickness

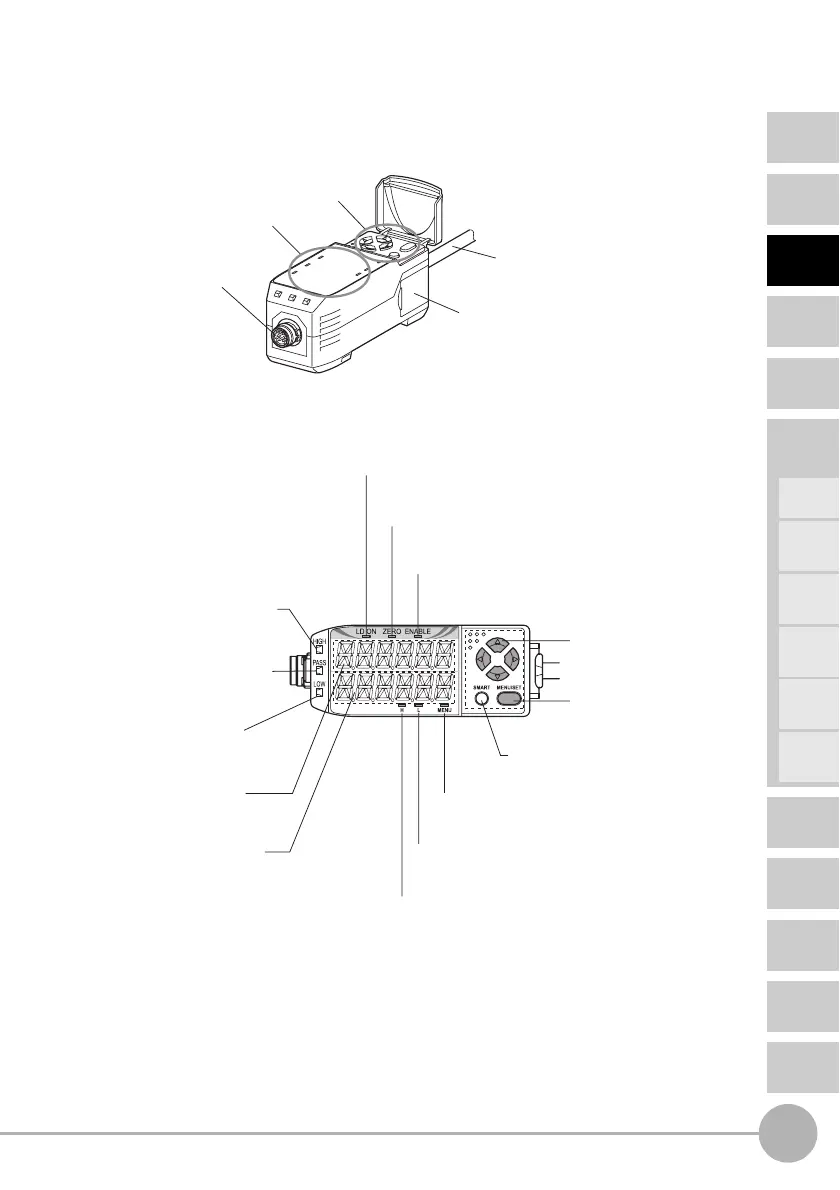

Amplifier Unit
Sensor Head connector
This connector is for connecting
the Sensor Head.
Display section (*)
Operating Section (*)
(*) Operating and Display Sections
Connector (two connectors, one on each side)
This connector is for connecting Calculating Units.
Laser ON indicator (green)
This indicator lights while the Sensor Head
is emitting a laser beam.
Output Cable
This cable is for connecting the power supply
and sync sensors or external devices.
Zero reset indicator (green)
This indicator lights when the zero reset function is enabled.
ENABLE indicator (green)
HIGH indicator (orange)
PASS indicator (green)
LOW indicator (orange)
Main display (red)
Sub-display (orange)
Cursor buttons
MENU/SET button
Smart tuning button
MENU indicator (green)
LOW threshold indicator (orange)
HIGH threshold indicator (orange)
This indicator lights while the Sensor is ready for measurement. It goes out
when measurement is not possible (e.g. when the received light amount is
excessive or insufficient, when the measuring range is exceeded, or when
the Sensor Head is not connected when the power is turned ON).
This indicator lights when the
judgement result is HIGH.
These buttons are used for
switching the display and setting
measurement conditions.
This is used for setting optimum sensing
conditions according to the operating conditions.
This button is used for switching
the mode and confirming settings.
This indicator lights when the HIGH threshold is displayed
on the sub-display.
This indicator lights when the LOW threshold is displayed
on the sub-display.
This indicator lights in the MENU mode.
It goes out in the RUN mode.
This indicator lights when the
judgement result is PASS.
This indicator lights when the
judgement result is LOW.
This display shows measured
values and function names.
This display shows additional
information and function
settings for measurements.
