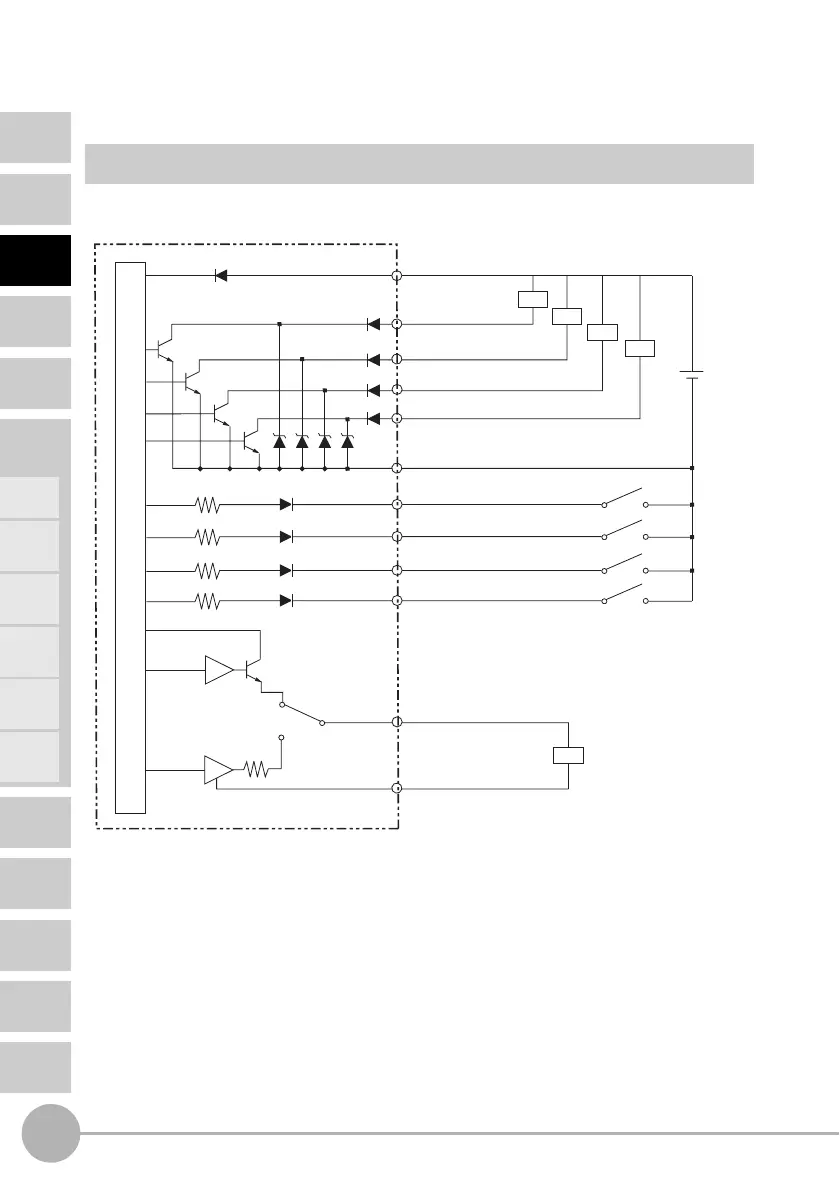

I/O Circuit Diagrams
NPN Amplifier Unit
100 Ω
Brown 10 to 30 VDC
10 to
30 VDC
Load
Load
Load
Load
Load
Blue GND (0 V)
Pink LD-OFF input
Purple Timing input/BANK input 0
Orange Zero reset input
Red Reset input/BANK input 1
Current output
4 to 20 mA
Voltage output
± 5 V
1 to 5 V
Current/voltage
output switch
Black
Shield
Analog output
Analog GND
White
HIGH judgement output
Green PASS judgement output
Gray LOW judgement output
Yellow Error output
Current output: 300 Ω or lower
Voltage output: 10 kΩ or highe
r
Internal circuit
