Smart Tuning
74
ZX2 User’s Manual
INTRODUCTION
MAIN
APPLICATIONS
& SETTING
METHODS
SPECIFI-
CATIONS
INDEX
SETTING
TRANSITION
CHARTS
DETAILED
SETTINGS
FLOW OF
OPERATION
CONTENTS
PREPARATION
FOR
MEASUREMENT
BASIC
SETUP
TROUBLE-
SHOOTING
Height
Double
Sheet
Detection
Positioning
Eccentricity
and Surface
Deflection
Steps
and
Warpage
Thickness
Smart Tuning
Smart tuning:
This setting option sets optimum sensing conditions according to the operating
conditions (response time and color/state of workpiece).

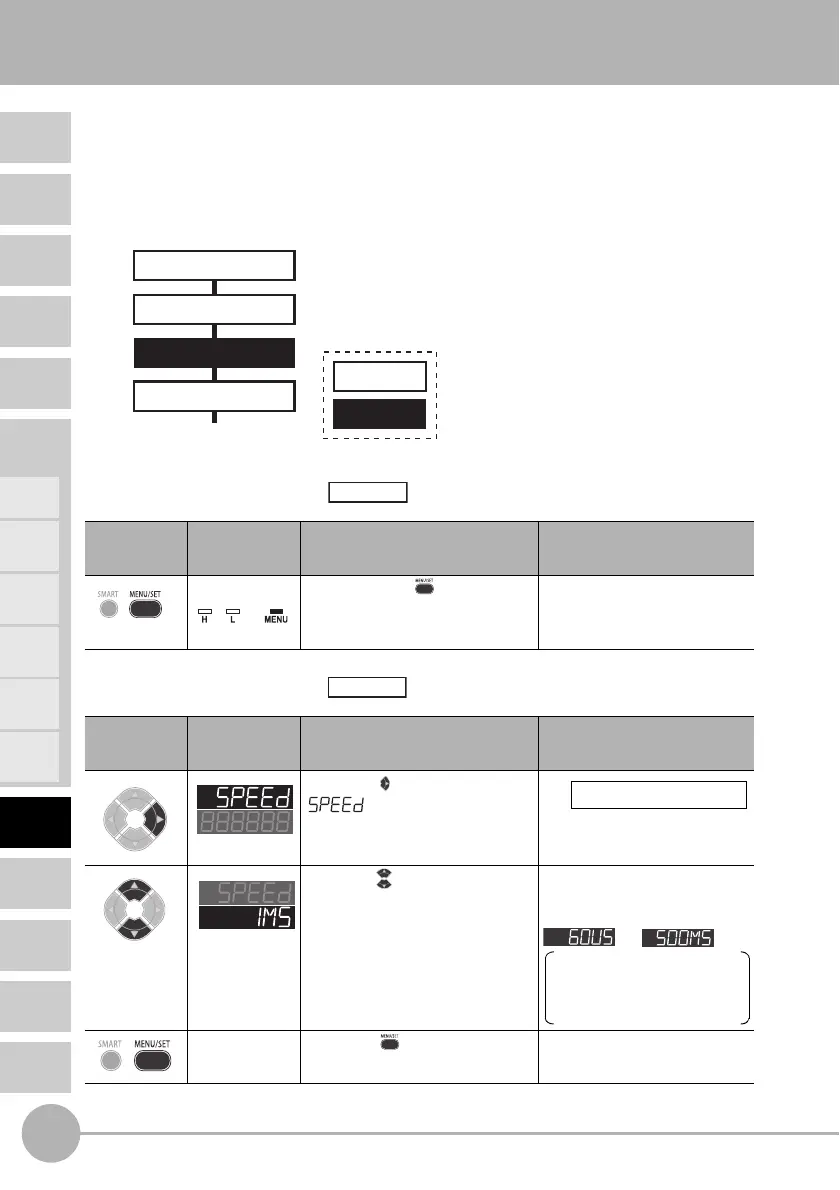

Procedure for setting up smart tuning
1 Set to the MENU mode
2 Response time setting
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Hold down the button for
three seconds to switch to the
MENU mode.
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Press the button to display
.
Select the
desired value.
Press the button to select the
response time.
Select the response time to
match the size and moving
speed of the sensing object.
to
60 µs, 120 µs, 240 µs, 500 µs,
1 ms, 2 ms, 4 ms, 8 ms, 12 ms,
20 ms, 36 ms, 66 ms, 128 ms,
250 ms, 500 ms
Press the button to apply
the setting.
* Steps 1, 2 and 4 are not required when the response time
setting is completed since smart tuning can be performed even
in the RUN mode.
Arbitrary setting
Required setting
Response time setting
2
Smart tuning
3
Set to the MENU mode
1
Return to RUN mode
4
Setting completed
Optional
Hold down for
3 seconds
Lit
Optional
Press to display.
Default value: 500 ms
Press to select
To Next Page
