Omron ZX2 Series User Manual

Eccentricity and Surface Deflection
71
ZX2 User’s Manual
INTRODUCTION
BASIC
SETUP
PREPARATION
FOR
MEASUREMENT
TROUBLE-
SHOOTING
INDEX
CONTENTS
SETTING
TRANSITION
CHARTS
FLOW OF
OPERATION
MAIN
APPLICATIONS
& SETTING
METHODS
DETAILED
SETTINGS
SPECIFI-
CATIONS
Height
Double
Sheet
Detection
Positioning
Eccentricity
and Surface
Deflection
Steps
and
Warpage
Thickness

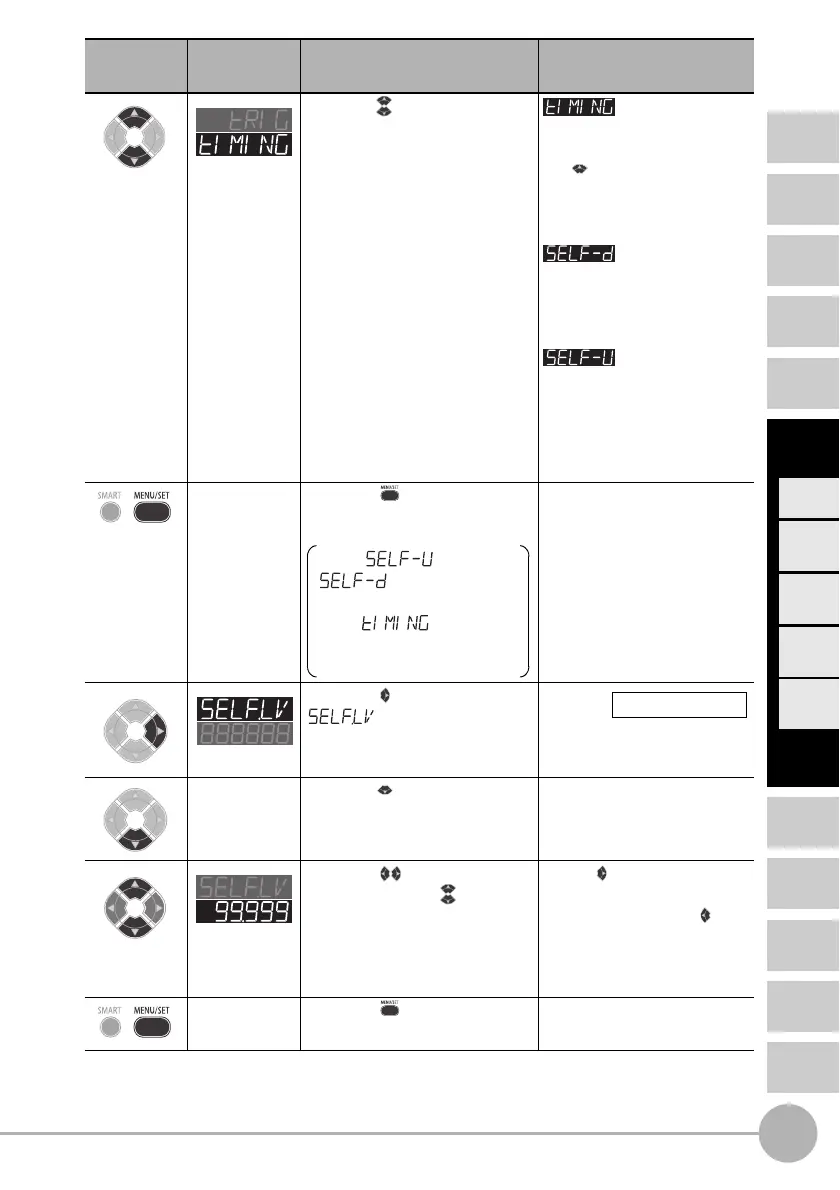

Select the
desired value.
Press the button to select the
trigger conditions. Enter the trigger by using the
timing input or by pressing
the button in the RUN
mode. The period that the
timing signal is ON is the
sampling period.
The sampling period is the
period that the measured
value is lower than the
specified self-trigger level.
The sampling period is the
period that the measured
value is greater than the
specified self-trigger level.
(For details, see page 83.)
Press the button to apply
the trigger conditions.
When and
are selected,
proceed to the next item, and
when is selected,
proceed to "8 Threshold
setting."
Press the button to display
.
Press the button to enable
setting of the self-trigger level.
Set any value.
Press the button to move
the digit, press the button to
change the numeric value, and
set the self-trigger level.
* If the button is pressed
when the cursor is at the
right-most digit or the
button is pressed when the
cursor is at the left-most digit,
the setting will be canceled.
Press the button to apply
the setting.
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Press to select
Press to display.
Default value: 0.000
Press to set.
[Change numeric value]
[Move digit]
