Eccentricity and Surface Deflection
70
ZX2 User’s Manual
INTRODUCTION
MAIN
APPLICATIONS
& SETTING
METHODS
SPECIFI-
CATIONS
INDEX
SETTING
TRANSITION
CHARTS
DETAILED
SETTINGS
FLOW OF
OPERATION
CONTENTS
PREPARATION
FOR
MEASUREMENT
BASIC
SETUP
TROUBLE-
SHOOTING
Height
Double
Sheet
Detection
Positioning
Eccentricity
and Surface
Deflection
Steps
and
Warpage
Thickness

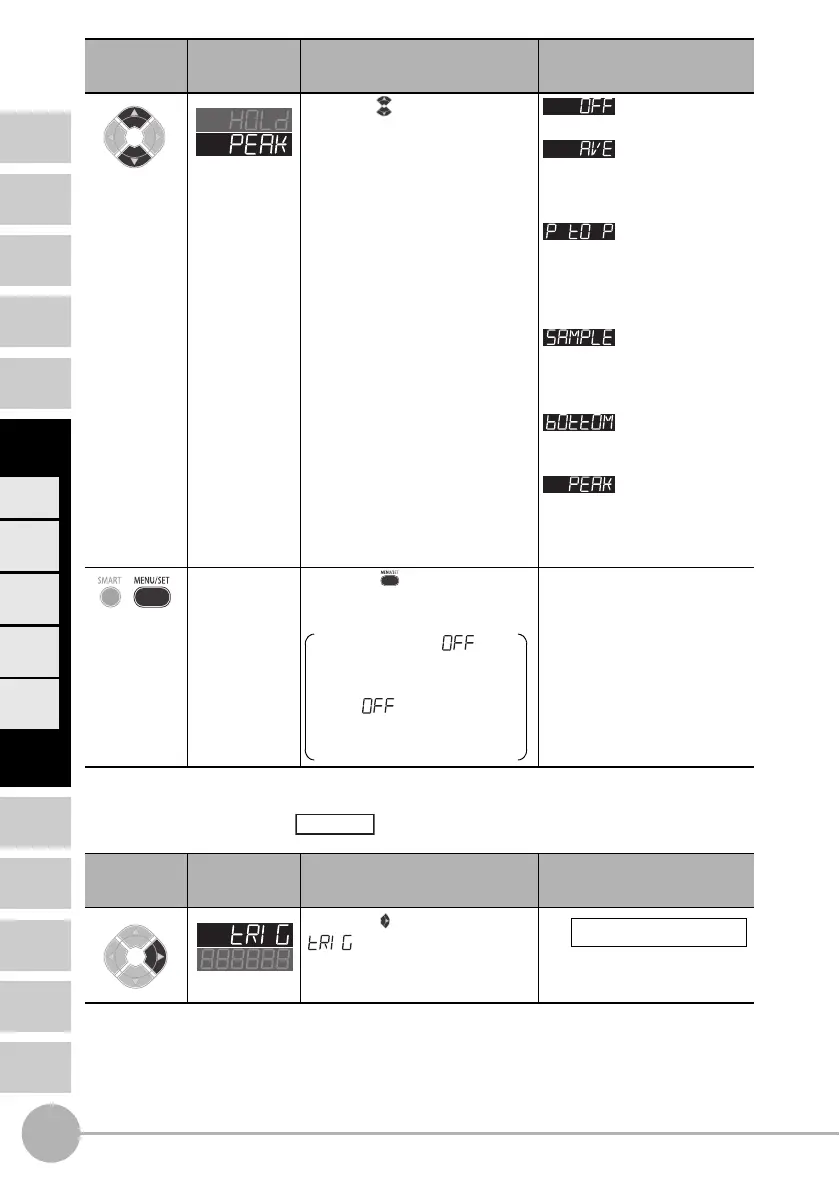

7 Trigger conditions
Select the
desired value.
Press the button to select the
hold conditions. Hold OFF
The average measured value
during the sampling period is
held.
The difference between the
minimum and maximum
values during the sampling
period is held.
The measured value at the
start of the sampling period is
held.
The minimum value during
the sampling period is held.
The maximum value during
the sampling period is held.
(For details, see page 81.)
Press the button to apply
the setting.
When other than is
selected, proceed to "7
Trigger conditions," and
when is selected,
proceed to "8 Threshold
setting."
* The clamp value is output
until the first sampling period
is finished.
(For details on the clamp
value, see page 97.)
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Press the button to display
.
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Press to select
Optional
Set how timing of the hold
measurement period is to be input.
Press to display.
Default value: TIMING
