Installation
24
ZX2 User’s Manual
INTRODUCTION
MAIN
APPLICATIONS
& SETTING
METHODS
SPECIFI-
CATIONS
INDEX
SETTING
TRANSITION
CHARTS
DETAILED
SETTINGS
FLOW OF
OPERATION
CONTENTS
PREPARATION
FOR
MEASUREMENT
BASIC
SETUP
TROUBLE-
SHOOTING
Height
Double
Sheet
Detection
Positioning
Eccentricity
and Surface
Deflection
Steps
and
Warpage
Thickness

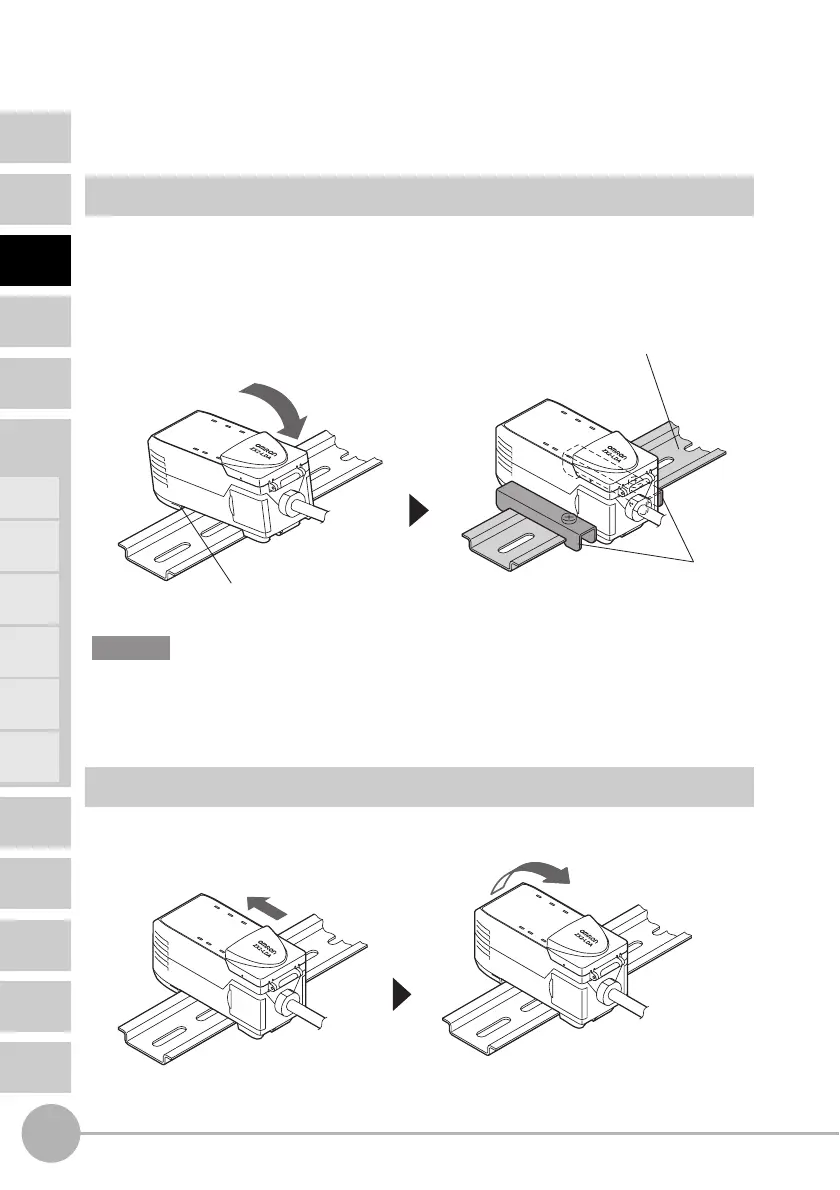

Installing the Amplifier Unit
Amplifier Units can be easily mounted to 35-mm DIN Track.
Installation Method
Hook the connector end of the Sensor Head on the DIN Track, and press in at the bottom
until the Amplifier Unit locks into place. If necessary, fix it in place by the End Plate.
Hook the connector end of the Sensor Head on the DIN Track first. The mounting strength may
decrease if the output cable end is hooked on the DIN Track first.
Removal Method
Push the Amplifier Unit up and pull out from the connector end of the Sensor Head.
DIN Track (Option)
PFP-100N (shallow type/1 m)
PFP-50N (shallow type/0.5 m)
PFP-100N2 (shallow type/1 m)
End Plate (Option)
PFP-M
Hook on the connector end
Important
