Onkyo TX-NR686 User Manual

11
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Front Panel≫ Rear Panel≫ Remote≫

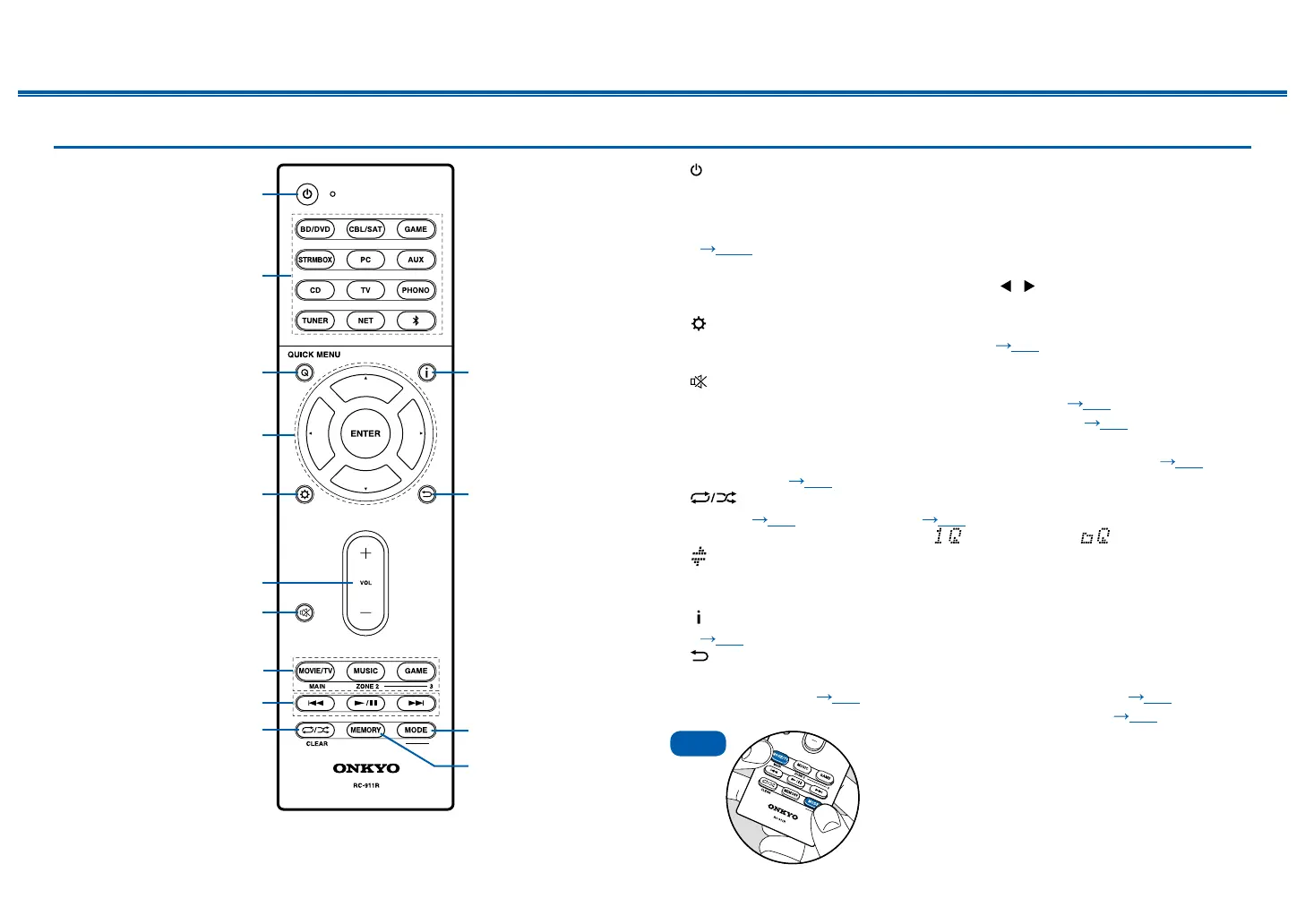

Remote Controller
1. ON/STANDBY button
2. Input selector buttons: Switches the input to be played.
3. Q (QUICK MENU) button: Pressing this button during playback can make
settings such as "Tone" and "Level” quickly on the TV screen while playing.
( p108)
4. Cursor buttons and ENTER button: Select an item with the cursors, and press
ENTER to conrm your selection. Pressing / can switch the screen when a
music folder list or le list is not displayed on one screen on the TV.
5. button: Display advanced setting items on the TV or the display to have a
more enjoyable experience with this unit. ( p86)
6. VOLUME buttons
7. button: Temporarily mutes audio. Press the button again to cancel muting.
8. LISTENING MODE button: Select a listening mode ( p68).
MAIN/ZONE 2 button: Control the multi-zone function ( p65). (The ZONE
3 button cannot be used with this unit.)
9. Play buttons: Used for playback operations for the Music Server ( p53) or
USB device ( p50).
10. button: Used for repeat/random playback operations for the Music
Server ( p53) or USB device ( p50). Each time you press the button,
the mode switches in the order of (1-track repeat), (folder repeat), and
(random).
CLEAR button: Deletes all characters you have entered when entering text on
the TV screen.
11. button: Switches the information on the display and is used to operate RDS
( p64).
12. button: Returns the display to the previous state while setting.
13. MODE button: Used to switch between automatic tuning and manual tuning for
AM/FM stations ( p60), or operate the multi-zone function ( p65).
14. MEMORY button: Used to register AM/FM radio stations. ( p62)
Tips
If the remote controller does not work: The
remote controller may have switched to the mode
for controlling ZONE 2. While pressing and holding
MODE, press the MAIN button for 3 seconds or
more until the remote indicator blinks once, and then
switch it to the mode for controlling the main room.
8
9
bk
1
2
3bl
bm
bn
bo
5
7
6
4

Onkyo TX-NR686 Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Total Harmonic Distortion (THD)	1 %
Power output per channel (1KHz@6 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	7
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) in	2
Line-out	Yes
Connectivity technology	Wireless
Speakers connectivity type	-
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
AM band range	522 - 1710 kHz
FM band range	57.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Optical drive included	No
Supported video modes	2160p
Supported graphics resolutions	3840 x 2160
HDCP version	2.2
Product color	Silver
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital 5.1, Dolby TrueHD
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	570 W
Package weight	12500 g
Package depth	450 mm
Package width	539 mm
Package height	260 mm

Weight and Dimensions

Depth	379.5 mm
Width	435 mm
Height	173.5 mm
Weight	10000 g
