BLUETOOTH
®
Playback
You can wirelessly play the audio on a BLUETOOTH-enabled device, such as a smartphone.
Basic Operations
Perform the following procedure when this unit is on.
Pairing

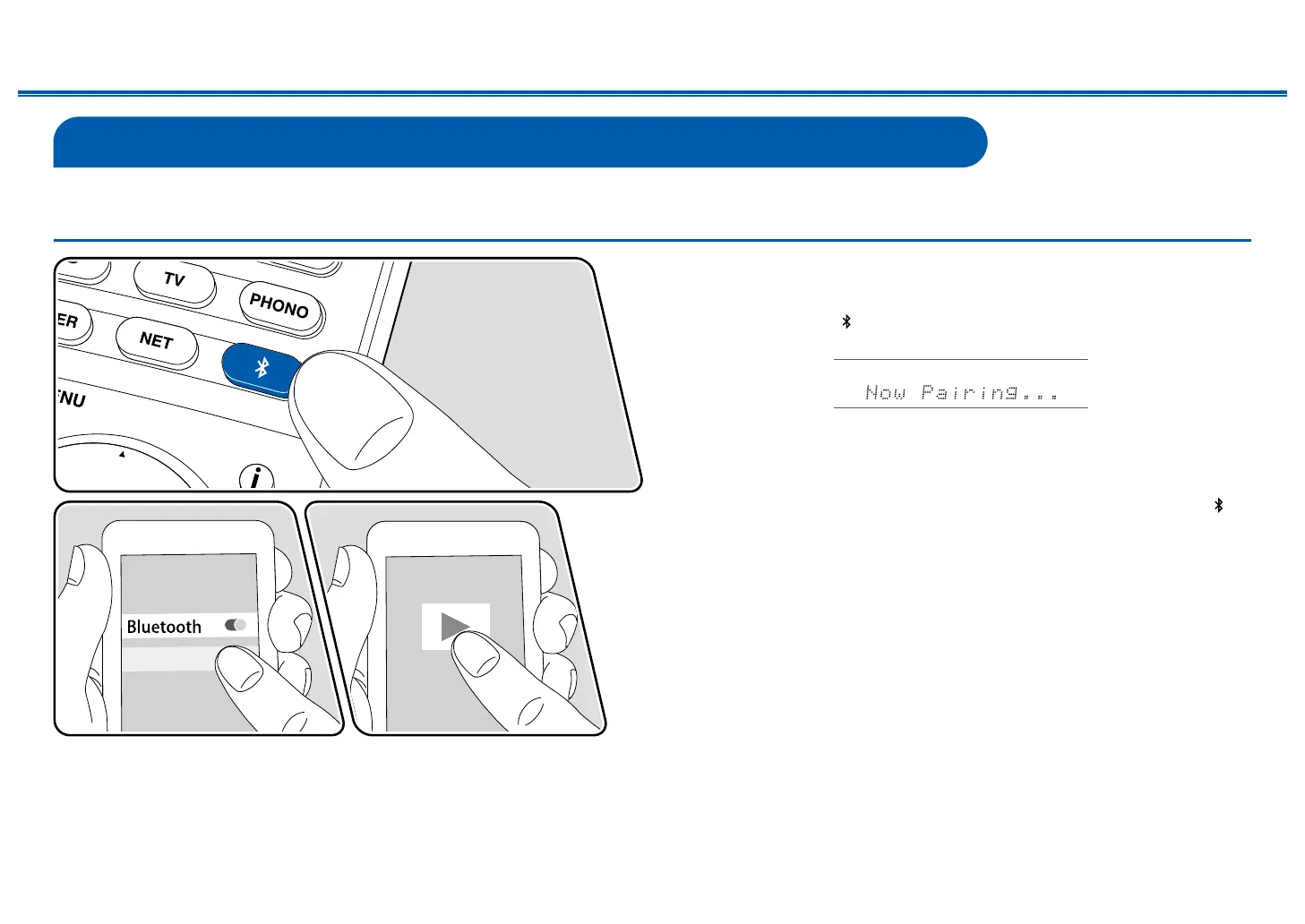

1. When you press the button, "Now Pairing..." is displayed on this unit's
display, and the pairing mode is enabled.
2. Enable (turn on) the BLUETOOTH function of the BLUETOOTH-enabled
device, and then select this unit from among the devices displayed. If a
password is requested, enter "0000".
• This unit is displayed as "Onkyo TX-NR686 XXXXXX".
• To connect another BLUETOOTH-enabled device, press and hold the
button until "Now Pairing..." is displayed, and then perform step 2. This unit
can store the pairing information of up to 8 paired devices.
• The coverage area is approx. 48´/15 m. Note that connection is not always
guaranteed with all BLUETOOTH-enabled devices.
Playing Back
1. Perform the connection procedure on the BLUETOOTH-enabled device.
The input on this unit automatically switches to "BLUETOOTH".
2. Playing the music le.
Turn up the volume of the BLUETOOTH-enabled device to an appropriate
level.
• Due to the characteristics of BLUETOOTH wireless technology, the sound
produced on this unit may slightly be behind the sound played on the
BLUETOOTH-enabled device.
Onkyo TX-NR686 XXX

Onkyo TX-NR686 Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Total Harmonic Distortion (THD)	1 %
Power output per channel (1KHz@6 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	7
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) in	2
Line-out	Yes
Connectivity technology	Wireless
Speakers connectivity type	-
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
AM band range	522 - 1710 kHz
FM band range	57.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Optical drive included	No
Supported video modes	2160p
Supported graphics resolutions	3840 x 2160
HDCP version	2.2
Product color	Silver
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital 5.1, Dolby TrueHD
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	570 W
Package weight	12500 g
Package depth	450 mm
Package width	539 mm
Package height	260 mm

Weight and Dimensions

Depth	379.5 mm
Width	435 mm
Height	173.5 mm
Weight	10000 g
