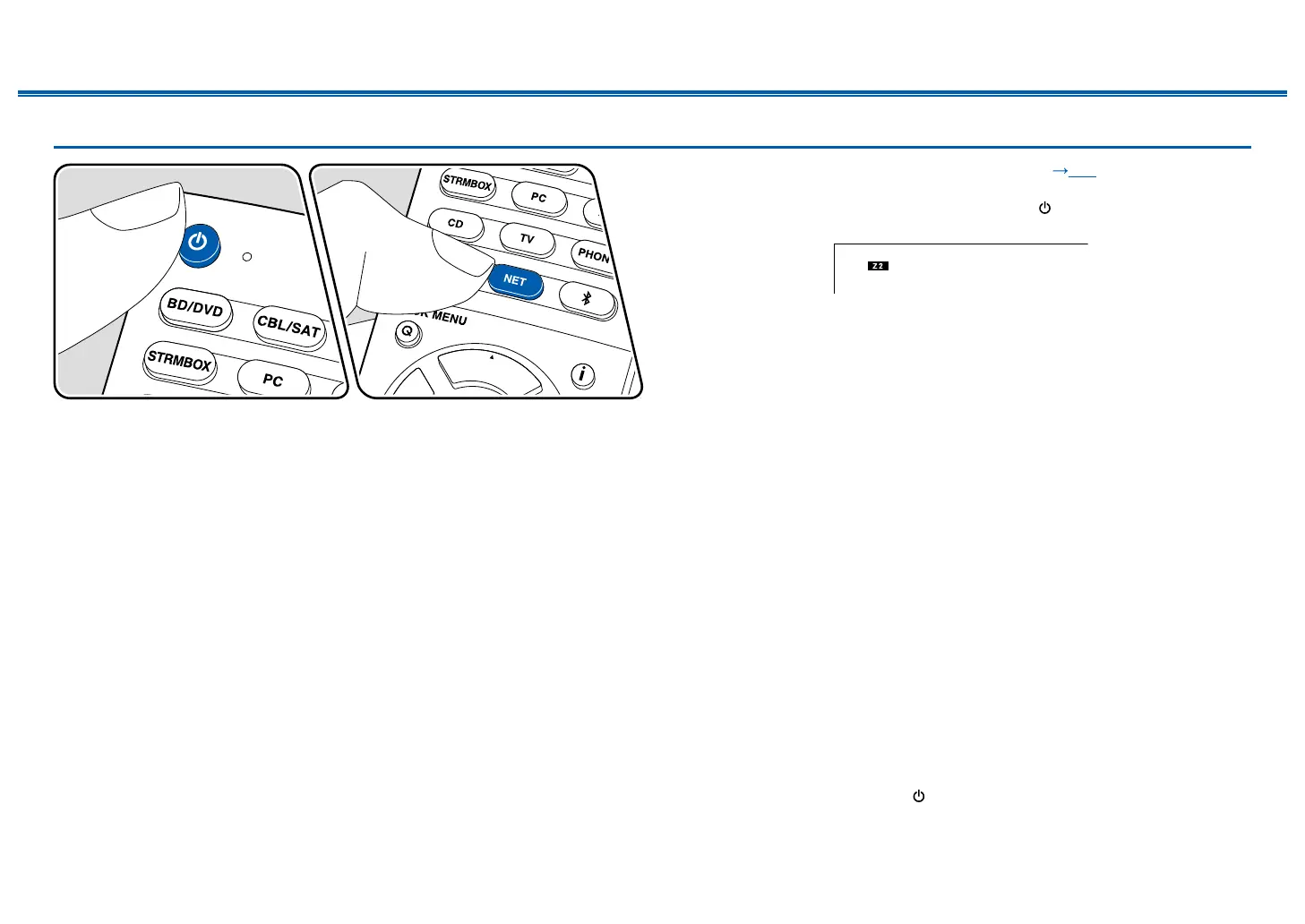

Set the remote controller to the ZONE control mode ( p65), and then perform
the following operations.
1. Point the remote controller at the unit, and press .
• “Z2” on the display of the main unit lights up.
2. Press the input selector of the input source you want to play in the separate room.
To control on the main unit, press ZONE 2, and then within 8 seconds, press the
input selector button of the input to be played in the separate room. To play the same
source in the main room and separate room, press ZONE 2 of the main unit twice.
3. When using the ZONE 2 LINE OUT connection, adjust the sound volume on the
pre-main amplier in the separate room. As for the ZONE speaker output, adjust
the volume on the remote controller. To do this on the main unit, press ZONE 2,
and then within 8 seconds, adjust the volume using the MASTER VOLUME dial.
• If you turn the unit to standby during multi-zone playback, the Z2 indicator is
dimmed, and the playback mode is switched to playback in a separate room
only. Setting ZONE 2 to on while the unit is in standby also switches the
playback mode to playback in a separate room only.
• When audio is being output from the ZONE SPEAKER, surround back
speakers or height speakers cannot play audio.
• The audio from externally connected AV components can be output to ZONE
2 only when the audio is analog or 2ch PCM signal. When the AV component
is connected to this unit with a digital coaxial cable or digital optical cable,
change the audio output of the AV component to the PCM output.
• DSD and Dolby TrueHD audio signals cannot be output to ZONE 2 when
selected with the "NET" input selector.
• If ZONE 2 is on, power consumption during standby will increase.
• If ZONE 2 is turned on when the Pure Audio listening mode is selected in the
main room , the mode will automatically switch to the Direct listening mode.
(European, Australian,Taiwanese and Asian models)
To set the function to o󰀨: Press while the remote controller is in the ZONE
control mode. Alternatively, press the OFF button on the main unit.
