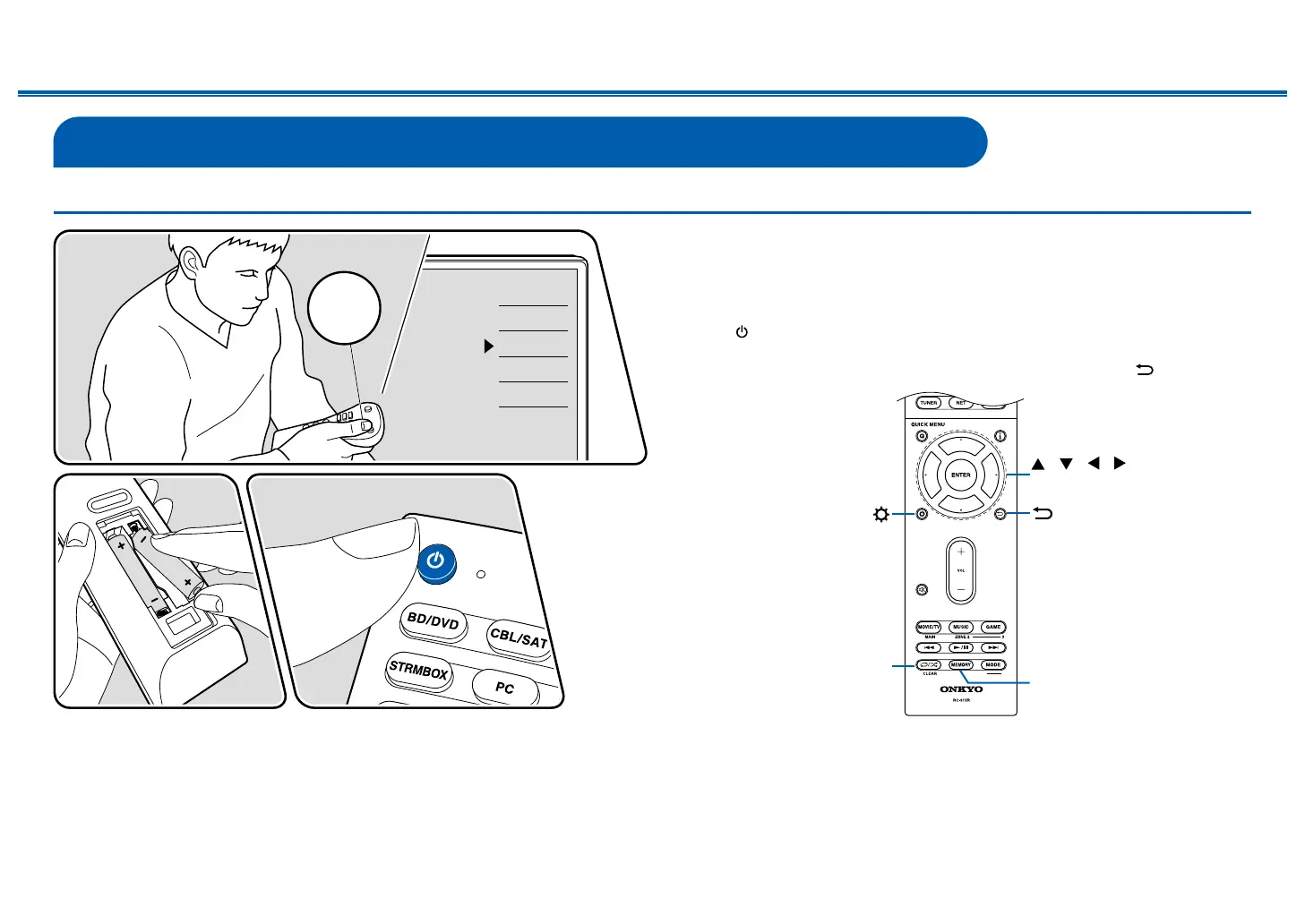

Initial Setup with Auto Start-up Wizard
When you turn the unit on for the rst time after purchase, the Initial Setup screen
is automatically displayed on the TV to allow you to make settings required for
startup using simple operations following on-screen guidance.
1. Switch the input of the TV to the input connected to the unit.
2. Put batteries into the remote controller of this unit.
3. Press on the remote controller to turn the unit on.
4. Select the item with the cursors of the remote controller, and press ENTER to
conrm your selection. To return to the previous screen, press .
MEMORY
/ / /
ENTER
CLEAR
Operations
Inputs
TV
HDMI 1
HDMI 2
HDMI 3
TV
INPUT
TV’s REMOTE
