To ARC TV
If the TV supports the ARC (Audio Return Channel) function (*), use only the
HDMI cable to connect with the TV. Use the ARC-compatible HDMI IN jack of the
TV for connection.
• Another TV or projector can be connected to the HDMI OUT SUB jack. To
switch between MAIN and SUB, press the Q button ( p108) on the remote
controller, and select “Other” - “HDMI Out”. Note that this jack is not ARC-
compatible.
Setup
• Settings are required to use the ARC function. Select “Yes” for “5. ARC Setup”
in Initial Setup ( p116).
• For detailed settings for TV connection, CEC function and audio output, refer
to the instruction manual of the TV.
(*) ARC function: This function transmits the audio signals of the TV via an
HDMI cable, and plays the audio of the TV on this unit. Connection to an ARC-
compatible TV is complete with one HDMI cable. To check if the TV supports the
ARC function, refer to the instruction manual of the TV, etc.

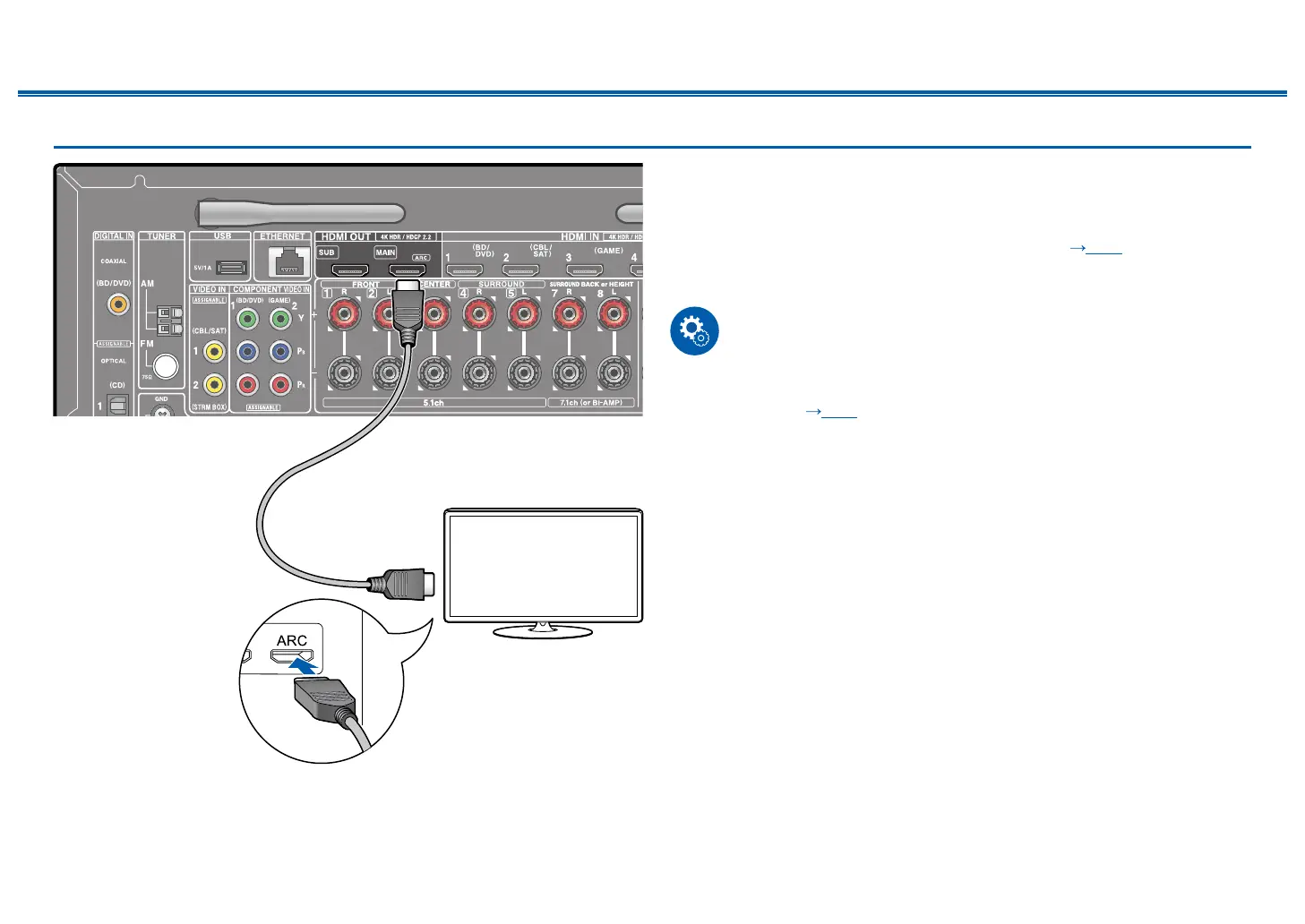

a HDMI cable
a
TV

Onkyo TX-NR686 Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Total Harmonic Distortion (THD)	1 %
Power output per channel (1KHz@6 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	7
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) in	2
Line-out	Yes
Connectivity technology	Wireless
Speakers connectivity type	-
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
AM band range	522 - 1710 kHz
FM band range	57.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Optical drive included	No
Supported video modes	2160p
Supported graphics resolutions	3840 x 2160
HDCP version	2.2
Product color	Silver
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital 5.1, Dolby TrueHD
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	570 W
Package weight	12500 g
Package depth	450 mm
Package width	539 mm
Package height	260 mm

Weight and Dimensions

Depth	379.5 mm
Width	435 mm
Height	173.5 mm
Weight	10000 g
