AirPlay
®
By connecting this unit to the same network as iOS devices, such as iPhone
®
, iPod touch
®
and iPad
®
, you can enjoy music les on iOS devices wirelessly.
• Update the OS version on your iOS device to the latest version.
• Depending on the iOS version, operation screens or operation procedures on the iOS device may be di󰀨erent. For details, refer to the operating instructions for the iOS device.

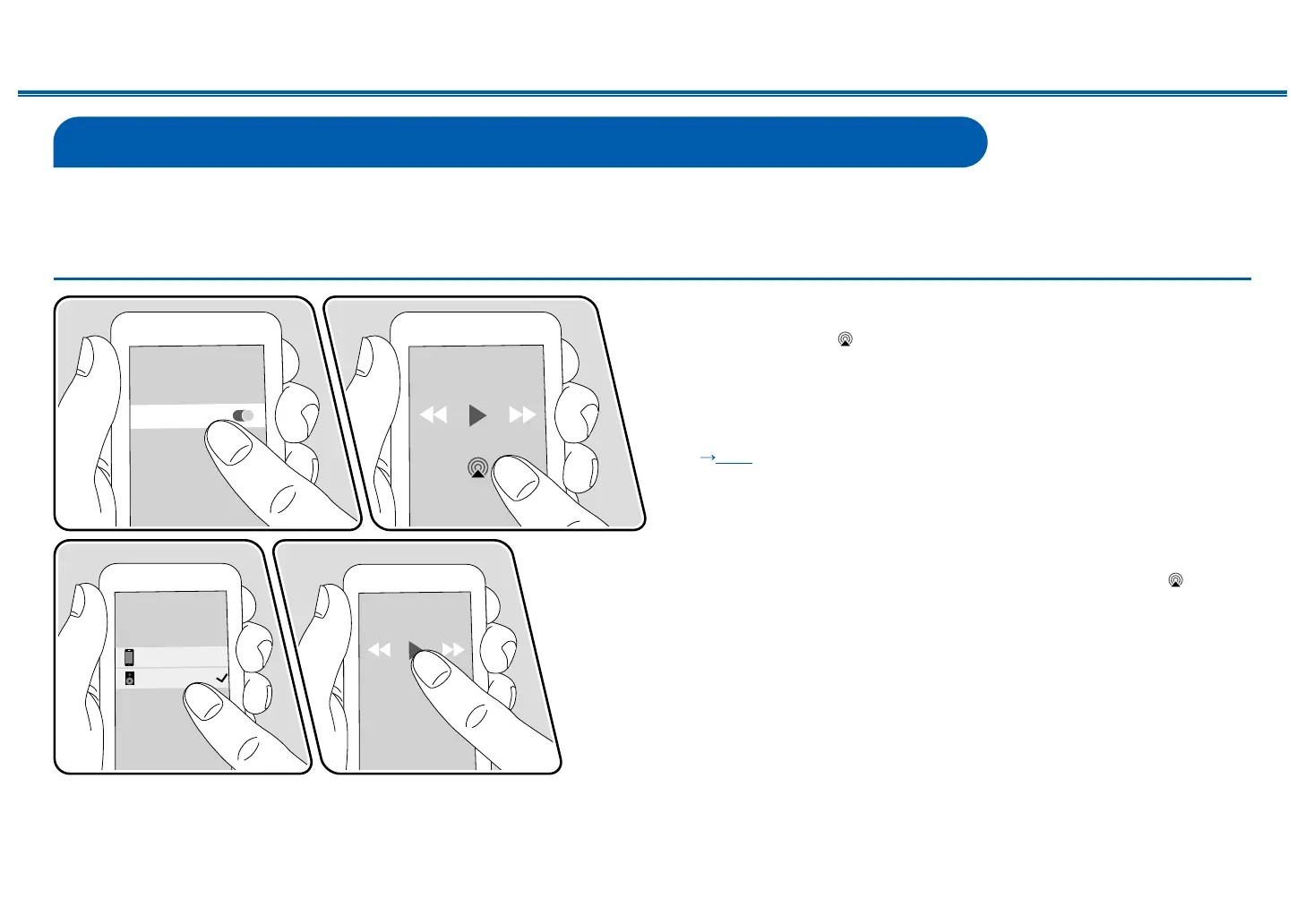

Basic Operations
1. Connect the iOS device to the access point where this unit is connected via
network.
2. Tap the AirPlay icon on the play screen of the music play application on the
iOS device, and select this unit from the displayed devices.
3. Play the music le on the iOS device.
• When “5. Hardware” - “Power Management” - “Network Standby” is set to “O󰀨”
in the Setup menu, turn this unit on manually, and press NET on the remote
controller. In the factory default setting, the Network Standby function
( p105) is set to On.
• Due to the characteristics of AirPlay wireless technology, the sound produced
on this unit may slightly be behind the sound played on the AirPlay-enabled
device.
You can also play the music les on a PC with iTunes (Ver. 10.2 or later)
equipped. Conrm that this unit and the PC are connected to the same network
beforehand. Then, press NET on this unit. Next, click the AirPlay icon in
iTunes, select this unit from the displayed devices, and start play of a music le.
Onkyo TX-NR686 XXXXXX
iPhone
Wi-Fi
e.g., iOS 10

Onkyo TX-NR686 Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Total Harmonic Distortion (THD)	1 %
Power output per channel (1KHz@6 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	7
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) in	2
Line-out	Yes
Connectivity technology	Wireless
Speakers connectivity type	-
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
AM band range	522 - 1710 kHz
FM band range	57.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Optical drive included	No
Supported video modes	2160p
Supported graphics resolutions	3840 x 2160
HDCP version	2.2
Product color	Silver
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital 5.1, Dolby TrueHD
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	570 W
Package weight	12500 g
Package depth	450 mm
Package width	539 mm
Package height	260 mm

Weight and Dimensions

Depth	379.5 mm
Width	435 mm
Height	173.5 mm
Weight	10000 g
