Presetting a Radio Station
Registration Procedure
You can preset up to 40 of your favorite AM/FM radio stations.
After tuning in to the AM/FM radio station you want to register, perform the
following procedure.

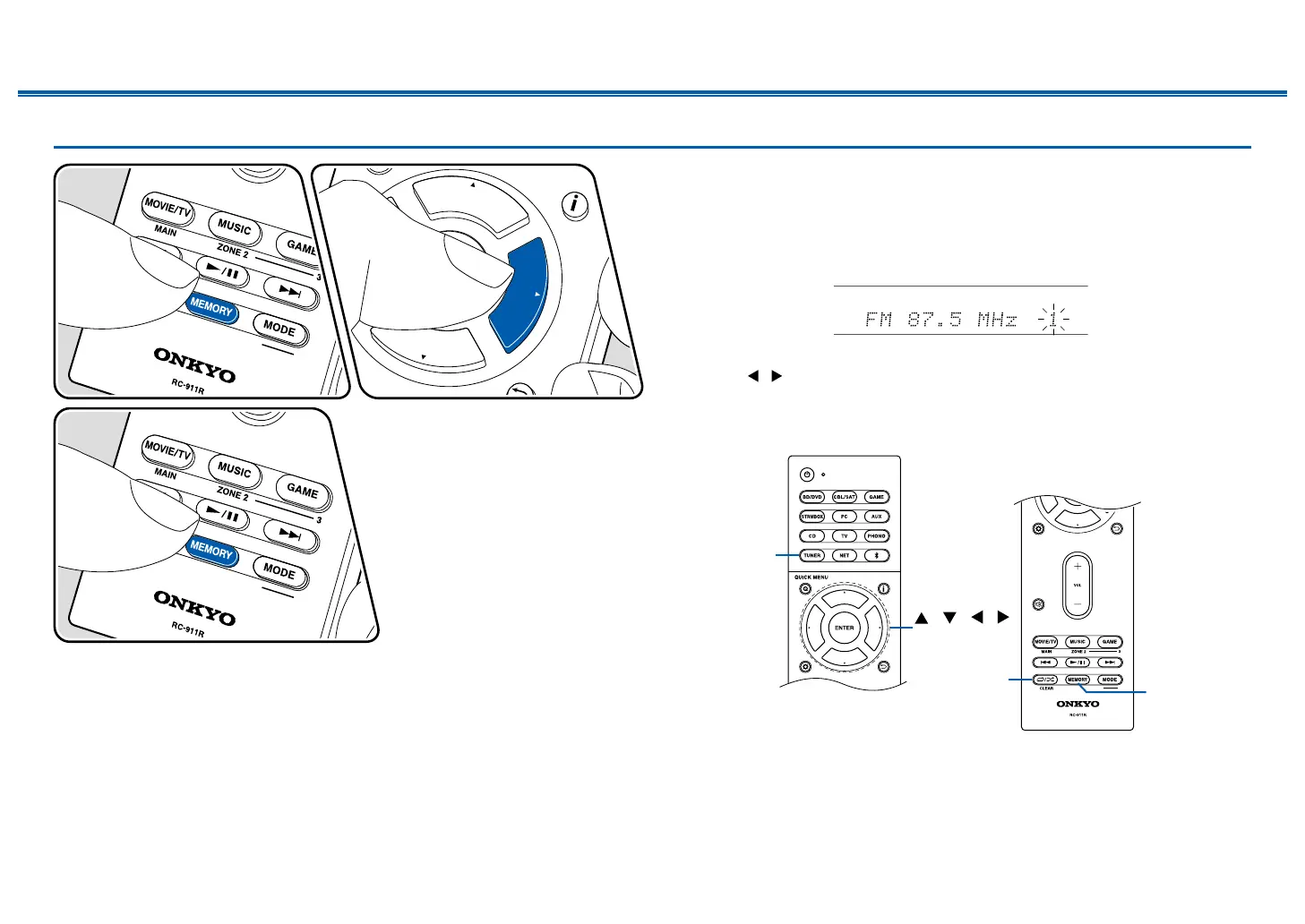

1. Press MEMORY so that the preset number on the display blinks.
2. While the preset number is blinking (approx. 8 seconds), repeatedly press the
cursors / to select a number between 1 and 40.
3. Press MEMORY again to register the station.
When the station is registered, the preset number stops blinking. Repeat this
steps to register your favorite AM/FM radio stations.
TUNER
/ / /
ENTER
CLEAR
MEMORY

Onkyo TX-NR686 Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Total Harmonic Distortion (THD)	1 %
Power output per channel (1KHz@6 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	7
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) in	2
Line-out	Yes
Connectivity technology	Wireless
Speakers connectivity type	-
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
AM band range	522 - 1710 kHz
FM band range	57.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Optical drive included	No
Supported video modes	2160p
Supported graphics resolutions	3840 x 2160
HDCP version	2.2
Product color	Silver
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital 5.1, Dolby TrueHD
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	570 W
Package weight	12500 g
Package depth	450 mm
Package width	539 mm
Package height	260 mm

Weight and Dimensions

Depth	379.5 mm
Width	435 mm
Height	173.5 mm
Weight	10000 g
