Panasonic Lumix DC-BS1H User Manual

- 22 -- 22 -
2. Getting Started - Connecting the external monitor
Connecting the external monitor
Connect the camera to an external monitor or external recorder etc. to output video and audio.
Connecting to the external monitor
Preparation:
●
Turn off the camera, external monitor, or external recorder etc.

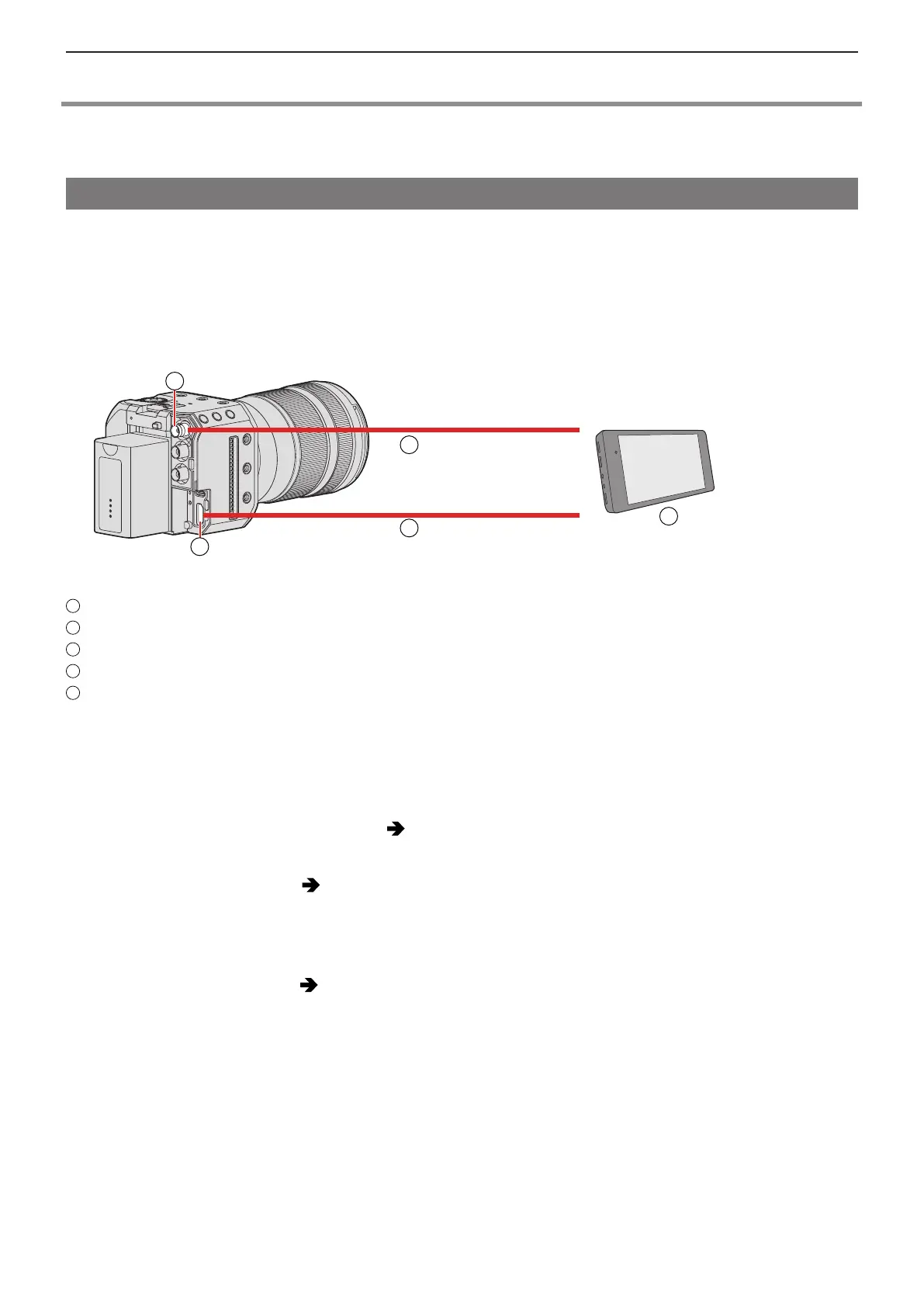

1 Connect the camera and external monitor or external recorder with an HDMI cable or
BNC cable.
A
C
D
B
E
A
[SDI OUT] terminal
B
[HDMI] terminal
C
BNC cable (commercially available)
D
HDMI cable (commercially available)
E
External monitor or external recorder (commercially available)
●
Check the direction of the terminals and plug in/out straight holding onto the plug. (Inserting at an angle can deform the
terminal and cause malfunction.)
●
Do not connect the cable to the wrong terminals. This may cause a malfunction.
■
When the images are not output ( 267 / External device)
■
Settings of the display ( 34 / Display Settings)
●
The recording information or menu screen will only be output to either the HDMI output destination or SDI output
destination. You can set where to display it in [Display Information].
■
Output image settings ( 137 / 7. Output image)
●
Sets the resolution etc. of the footage to be output to the external device during recording.
