4. Recording Videos - Genlock settings

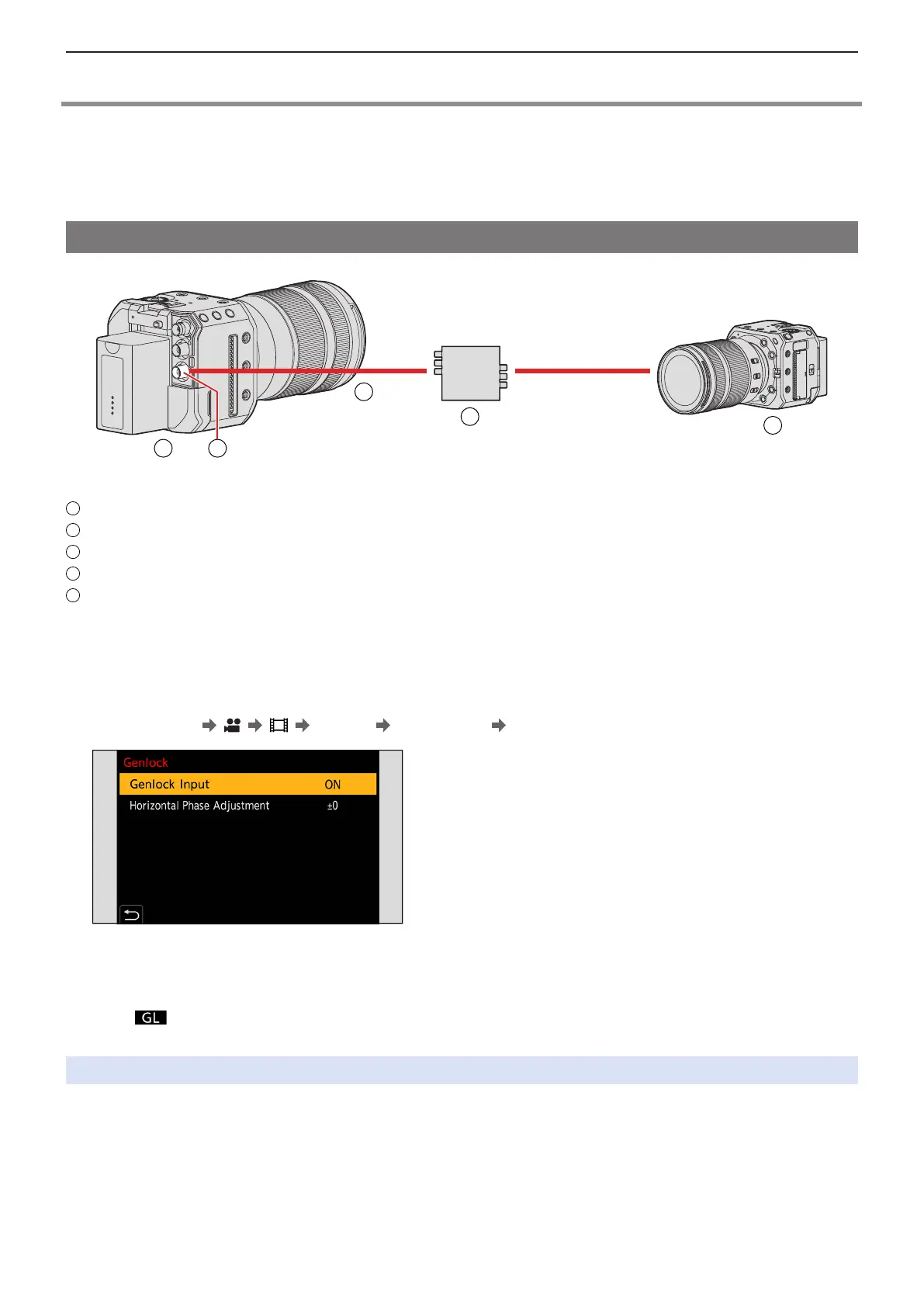

Genlock settings
When using several units of this camera or recording in combination with other recording devices, input the external sync signal
from the [GENLOCK IN] terminal to synchronize the cameras.
The camera is compatible with BBS (Black Burst Sync) and tri-level sync.
Input a sync signal
B
C
D
E
A
A
Camera (Slave)
B
[GENLOCK IN] terminal
C
BNC cable (commercially available)
D
Sync signal generator (Master)
E
External device (Slave)
1 Connect the sync signal generator and camera with a BNC cable.
2 Set [Genlock Input] to [ON].
●
[MENU/SET] [ ] [ ] [Genlock] [Genlock Input] [ON]
3 Output a sync signal with the sync signal generator.
●
A [ ] is displayed on the left side of the screen when the camera and external synchronization signal input from the
[GENLOCK IN] terminal is synchronized.
●
It is recommended to use a double shielded BNC cable equivalent to 5C-FB.

Panasonic Lumix DC-BS1H Specifications

General

Megapixel	24.2 MP
Camera type	MILC Body
Sensor type	CMOS
Sensor format	Full-frame
Image stabilizer	No
Total megapixels	25.28 MP
Image sensor size	- \
Image formats supported	JPEG
Supported aspect ratios	3:2
Maximum image resolution	6000 x 4000 pixels
Image sensor size (W x H)	35.6 x 23.8 mm
Still image resolution(s)	6000x4000, 4272x2848, 3024x2016, 3888x2592, 2784x1856, 1968x1312
Scene modes	-
White balance	Auto, Cloudy, Custom modes, Incandescent, Manual, Shade
Self-timer delay	- s
Tripod mounting supported	Yes
Product color	Black
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
Quantity per pack	1 pc(s)
Battery voltage	- V
Number of batteries supported	1
Light metering	Centre-weighted, Evaluative (Multi-pattern), Highlight-weighted, Spot
ISO sensitivity	50, 100, 200, 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 102400, 204800
Light exposure modes	Aperture priority AE, Auto, Manual, Shutter priority AE
ISO sensitivity (max)	204800
ISO sensitivity (min)	50
Light exposure control	Program AE
Light exposure correction	± 5EV (1/2EV; 1/3EV step)
Number of measurement zones	1728
Fastest camera shutter speed	1/8000 s
Slowest camera shutter speed	1 s
HD type	6K Ultra HD
Video formats supported	MOV, MP4
Maximum video resolution	5952 x 3968 pixels
Audio system	stereo
Compatible memory cards	SD, SDHC, SDXC
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector	USB Type-C
HDMI connector type	Full-size
Headphone connectivity	3.5 mm
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2

Weight and Dimensions

Depth	78.8 mm
Width	93 mm
Weight	585 g
