60 | Hardware Connections
Magellan & Spectra SP • Programming Guide

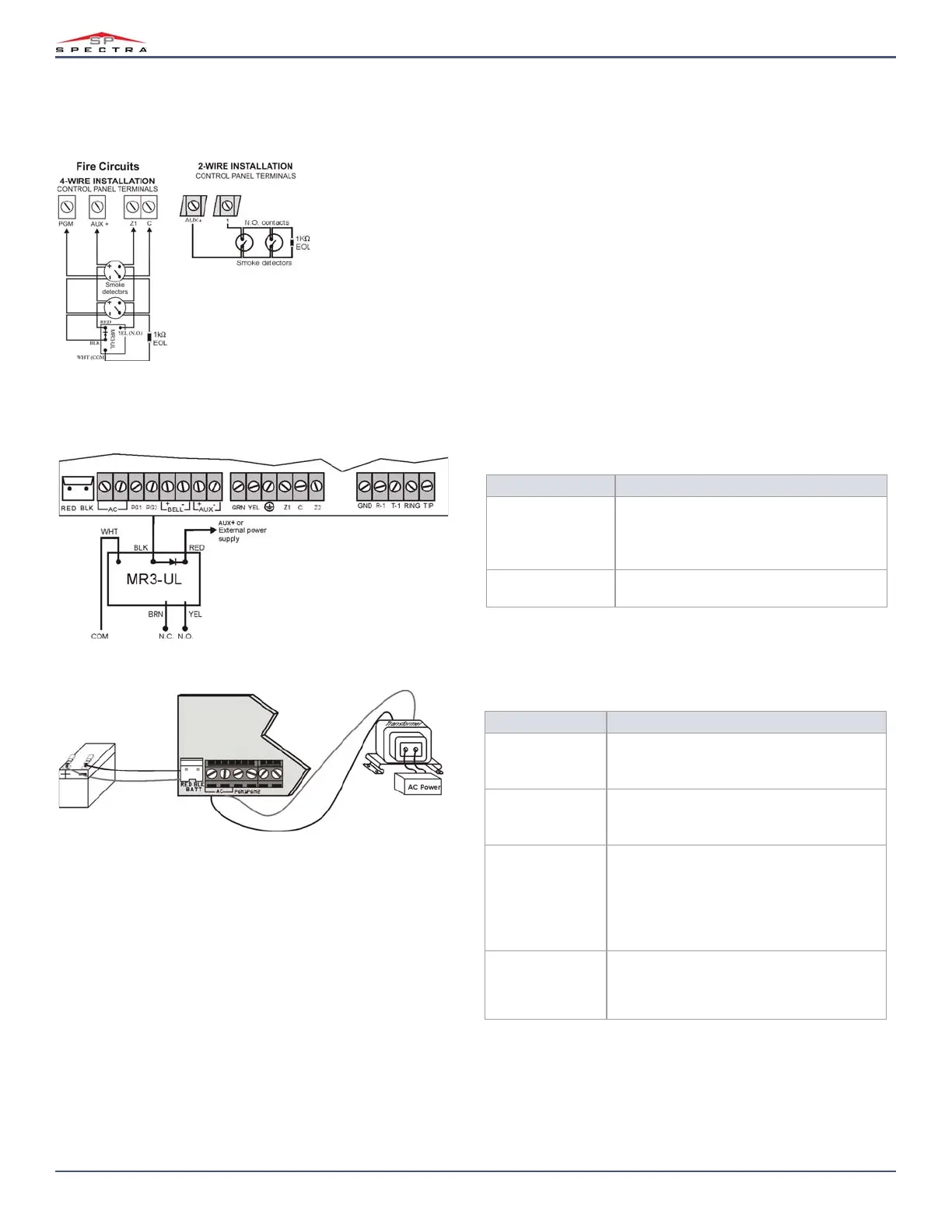

Connecting Fire Circuits
For 4-wire installation, program the activation event so that the smoke detectors can be reset by simultaneously pressing CLEAR and ENTER for three seconds (see
event group 06 on page 21). For 2-wire installation, press
CLEAR and ENTER simultaneously to automatically reset smoke detectors (not applicable to SP5500, SP4000,
SP65).
WARNING: It is recommended that smoke detectors be connected in a daisy-chain configuration. Each control panel, except for the SP4000, SP5500, and
SP65, supports a maximum of five 2-wire smoke detectors.
Alarm Relay and PGM Connections
AC Power & Backup Battery Connections
Demonstration or Emergency System Power-up without an AC Source
To power-up the control panel for demonstration or emergency purposes only, use a standard 12 VDC, 4 Ah/7 Ah backup battery. To power the control panel using
a backup battery:
1. Connect the battery to the control panel's
BATT terminal.
2. Use a wire to short the battery's negative terminal to the panel's
AUX- terminal.
Table 57: PGM power sources
Power Source Description
AUX + terminal • MG5000/MG5050: max. 700 mA
• SP5500/SP6000/SP7000: max. 700 mA
• SP4000: max. 600 mA
• SP65: max. 750 mA
External power supply PGMs cannot exceed 100 mA or the power supply’s
current limit.
Table 58: Transformation requirements
Power Source Description
Transformer • 16 Vac 20 VA* (Amseco XP-1620)
• 16.5 Vac 40 VA (Universal UB1640W)
* not verified by UL
DC power supply rate • MG5000/MG5050: 1.0A
• SP5500/SP6000/SP7000: 1.4A
• SP4000/SP65: 1.1A
Auxiliary supply rate • MG5000/MG5050: typ. 600 mA / max. 700 mA
• SP5500/SP6000/SP7000: typ. 600 mA / max.
700 mA
• SP4000: typ. 450 mA / max. 600 mA
• SP65: typ. 500 mA / max. 750 mA
• UL installations: typ. 200 mA
Acceptable battery
charge current
(see section [700],
option 2, on page 36)
• MG5000/MG5050: 350 mA / 700 mA
• SP5500/SP6000/SP7000: 350 mA / 700 mA
• SP4000/SP65: 1.1A
WARNING: A 12 Vdc / 7 Ah battery is required to comply with UL fire
requirements.
WARNING: Improper connection of the transformer may result in
damage to the system.
WARNING: Disconnect battery before replacing the fuse.
