Paradox Spectra SP7000 User Manual

Magellan & Spectra SP • Programming Guide
Version 4.7/4.92/5.12

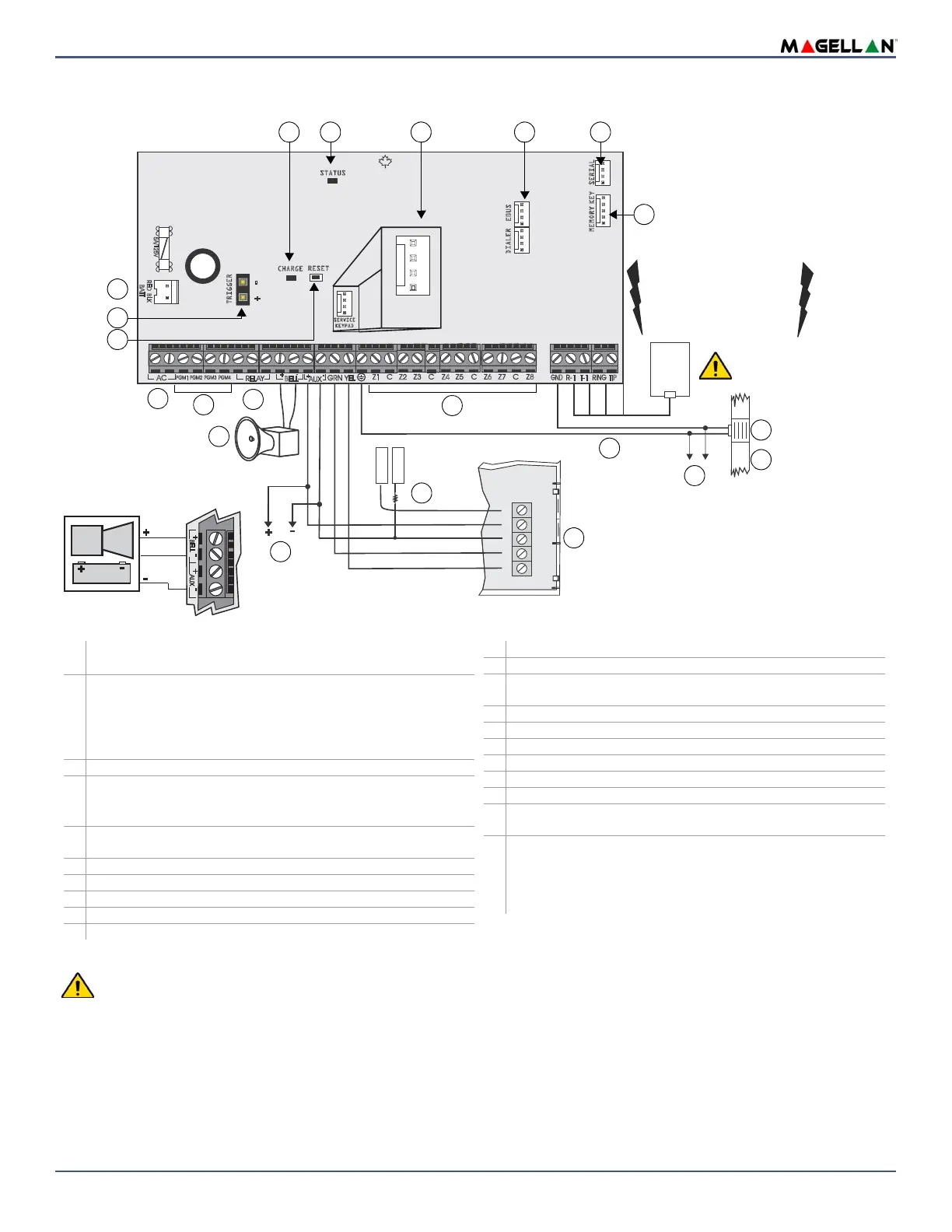

PCB Layouts/Wiring Diagrams | 65
SP6000
RED BLK
5A/125V
AC
PGM1 PGM2
AUX
Z2
C
+
-
R-1 T-1
RING
TIP
GND
RESET
SERIAL
MEMORY KEY
STATUS
BELL
+
-
BATT
GRN
YEL
Z1
DIALER
CHARGE
PGM4PGM3 Z3 C
Z4
Z5
EBUS
RELAY
C
Z7
C Z8Z6
TRIGGER
- +
BRN
GRY
RED
GRN
RJ31X
CA 38A
RED BLK GRN YEL
ZONE
Magellan Keypad
1K
EOL
- +
SERVICE
KEYPAD
SERVICE
KEYPAD
+
AUX
-
GRN YEL
To provide maximum
lightning protection we
strongly recommend having
separate earth connections
for the dialer and zone
ground terminals.
1
6
11
4 53
Disconnect telephone
line before servicing.
7
8
14
15
16
17
18
19
20
21
Self-Contained Bell Connection
BELL
+
-
AUX
+
-
TRIGGER
-
+
SELF-CONTAINED
BELL/SIREN
+
-
2
13
12
9
10
1Charge LED:
•Charging and battery test
2 Status LED:
• Flash once every second: Normal
• Flashes ON 1 sec. and OFF 1 sec.: Any trouble
• Always ON: Panel is using phone line
• Fast flash 6 seconds after power-up: Installer lock enabled
3 Four-pin connector can be used for quick installation of a keypad
4 EBUS and Dialer used with:
• VDMP3 Plug-in Voice Module for voice reporting
• PCS Series GSM Communicator Module
5 Used for connecting the IP100
Internet Module; also used for In-Field
Firmware upgrade through a 307USB Direct Connect Interface
6Paradox Memory Key (PMC-4, PMC5)
7 Refer to Hardware Connections on page 59
8The
BELL output will shutdown if the current exceeds 3A
9 Programmable output relay: max. 5A @ 60 Vdc or 120 Vac
10 Refer to Alarm Relay and PGM Connections on page 60
11 16.5 Vac (50 or 60 Hz), minimum 20 VA (40 VA recommended)
12 Refer to Panel Reset on page 3
13 PGM trigger: this jumper allows you to choose whether the solid state
relay PGMs are grounded (-) or give out 12V (+)
14 Refer to AC Power & Backup Battery Connections on page 60
15 AWG #14 single conductor solid copper wire
16 Ground clamp
17 Cold water pipe grounding
18 To metallic enclosure
19 For the keypad’s zone configurations, see Installer Quick Menu on page 7
20 If EOL is enabled, see section [706] option 2, on page 38; for the keypad’s
zone configurations, see Installer Quick Menu on page 7
21 To connect additional wiring to auxiliary power, use the red (+) and black
(-) keypad connectors; auxiliary power will shut down if current exceeds
1.1A; if the auxiliary output is overloaded and shuts down, you must
disconnect all loads from the output for at least 10 sec. before
reconnecting any load back to the auxiliary output
40 VA transformer strongly recommended.
Max. number of keypads: 15 keypads
Max. aux. current: 700 mA
Max. distance of bus module from panel: 76 m (250 ft.)
Max. total run of wire: 230 m (750 ft.)
This equipment must be installed and maintained by qualified service personnel only.
For UL and C-UL warnings, refer to the UL and C-UL Warnings section at the back of the MGSP Reference & Installation Manual.
The sum of the current drawn from the
BELL and AUX must be limited to 1.3A. Exceeding this limit will overload the panel power supply
and lead to complete system shutdown.
When using an SP6000 in conjunction with an RTX3, all K32 and K10V/H keypads must be versions 2.0 and higher.
