ELECTRICITY
14
Reproduction ou traduction, même partielle, interdite sans autorisation écrite de Peugeot Motocycles

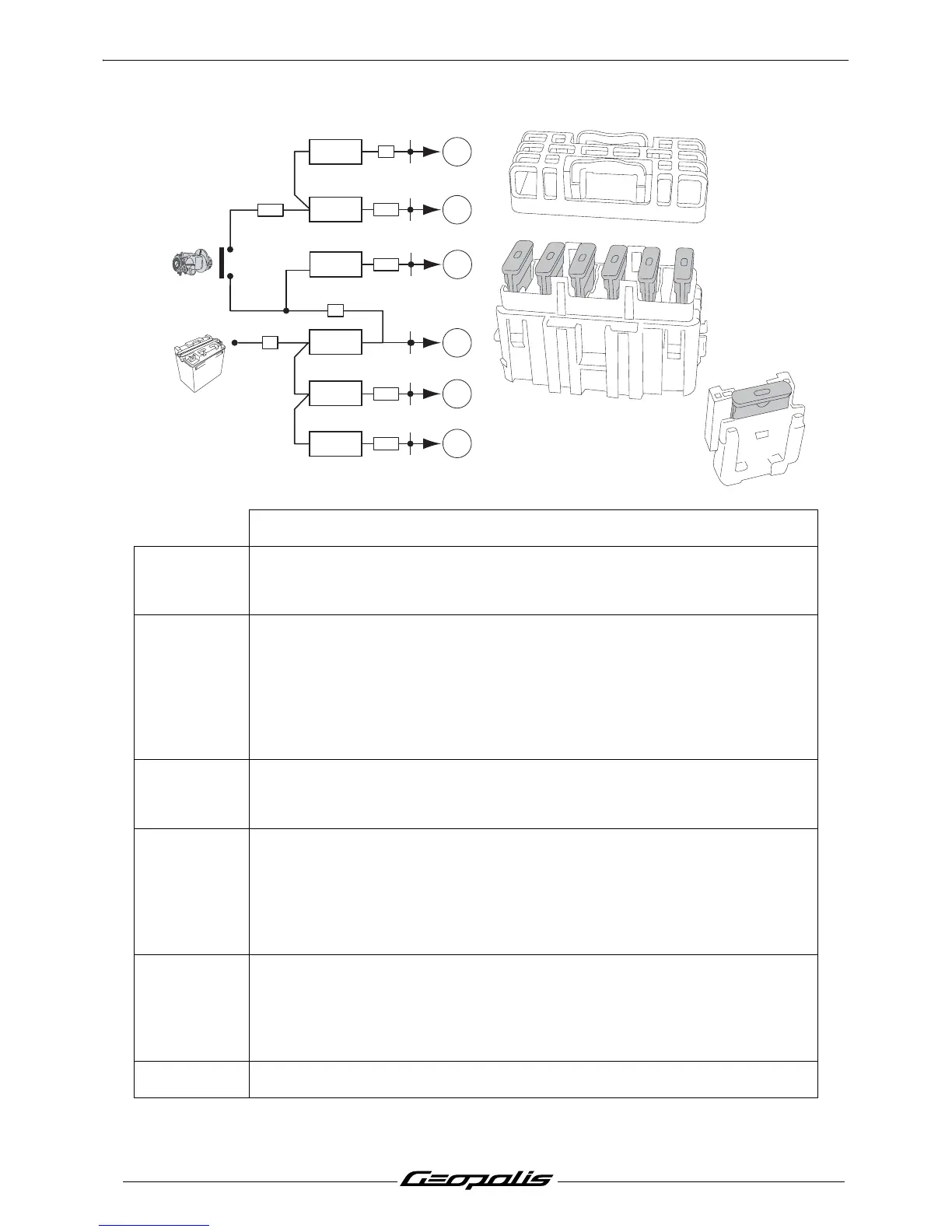

Fuses and energy distribution
Geopolis 250 cc
F1
Regulator.
Ignition switch.
F7.
F2
Injection ECU.
Injection relay:
HT coil.
Petrol injector.
Petrol pump.
Lambda sensor.
Fan relay.
F4
Instrument panel.
Lighting relay.
Fan relay.
F5
Instrument panel.
Dip switch (main/low headlight).
Horn.
Number plate light.
Sidelight.
Stop light contact.
F6
Injection ECU.
Transponder antenna.
Diagnostic plug.
Injection relay.
Lighting relay.
F7 Accessory socket.
RG
GR-BE
GR-RG
GR-RG
+B
-
UPPER LE
VEL
LOW
ER LE
VEL
RG
RG-NR
GR-NR
NR
6
5
1
2
4
7
F1-30A
F6-7,5A
F5-15A
F2-10A
F4-15A
F7-10A
X
X
X
X
X
X
X
X
X
X
X
X
X
X
