PEUGEOT Geopolis 250 Repair Manual

BODY PANELS
21
Reproduction ou traduction, même partielle, interdite sans autorisation écrite de Peugeot Motocycles

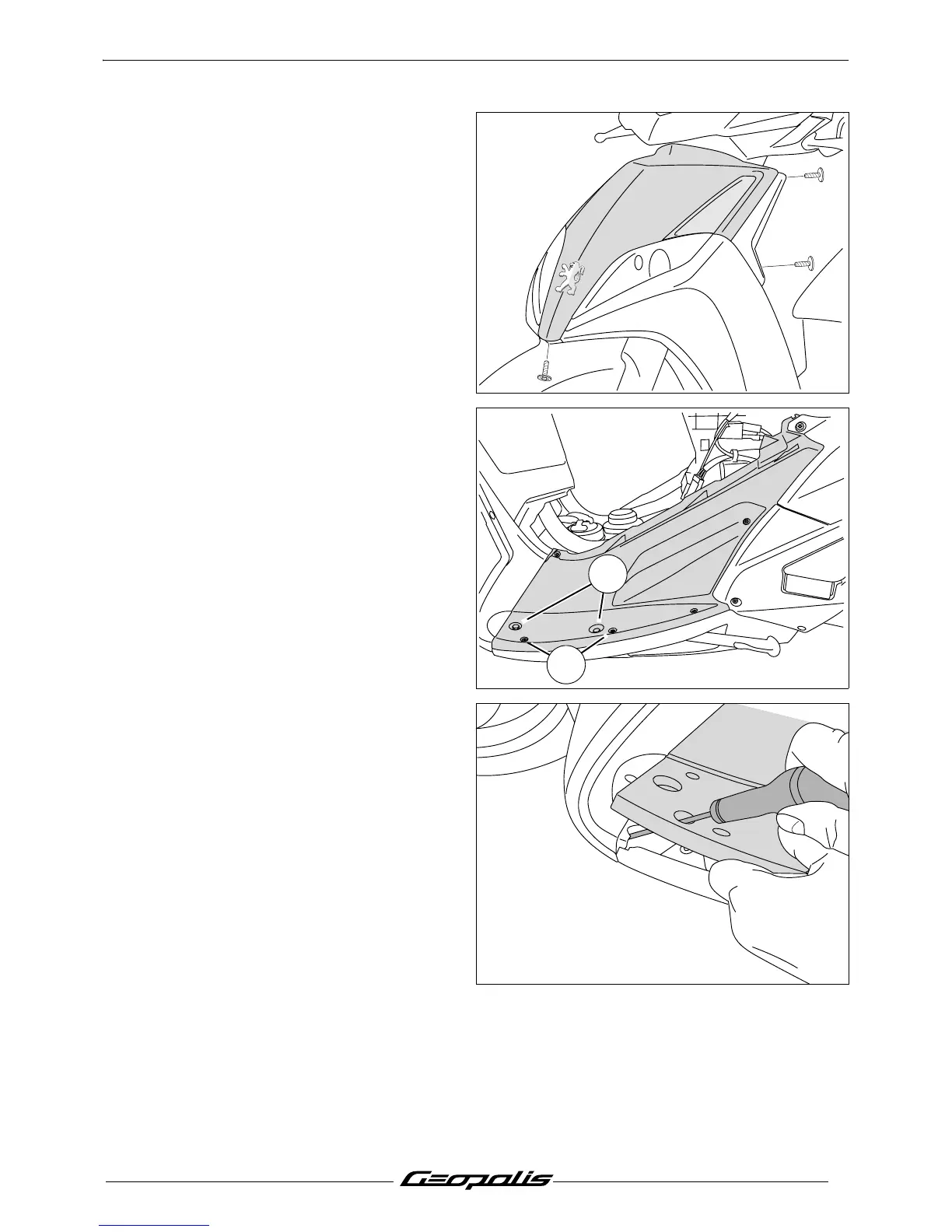

 Removal of the front shield panel
Procedure 5.
- Remove the front top cover panel. (5 screw).
- Remove the footboard mat.
- On each side remove:
• 2 washer head screws. Ø6 mm. (1)
• 2 plastic screws. (2)
- Lift the footboard in order to reach the screw
that secures the shield panel.
2
1

PEUGEOT Geopolis 250 Specifications

General

Displacement	244.3 cc
Cooling System	Liquid cooled
Transmission	Automatic CVT
Front Suspension	Telescopic fork
Rear Suspension	Dual shock absorbers
Engine Type	Single cylinder, 4-stroke
Front Tire	120/70-15
Power	22.5 hp
