PEUGEOT Geopolis 250 Repair Manual

MISCELLANEOUS OPERATIONS
38
Reproduction ou traduction, même partielle, interdite sans autorisation écrite de Peugeot Motocycles

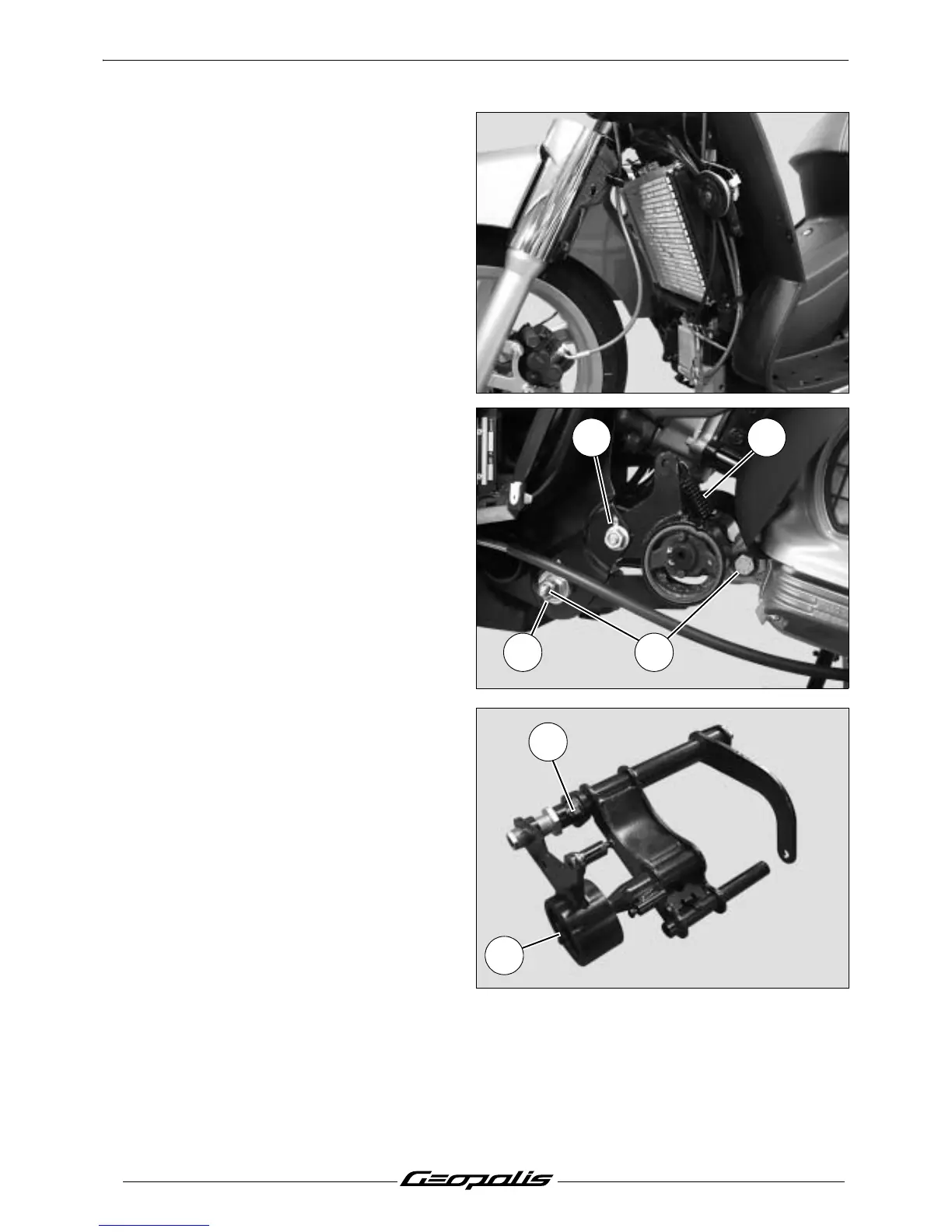

 Removal of the radiator
- Remove the tank cover panel. See:
Procedure 3. page 19.
- Disconnect the fan.
- Remove the front shield panel. See:
Procedure 5. page 21.
- Remove the mudguard.
- Remove the upper fixing bolts.
- Drain the cooling circuit.
- Disconnect the 4 hoses of the radiator's
cooling circuit.
- Remove the radiator.
 Removal of the engine mounting
assembly
- Remove the side fairings. See:
Procedure 2. page 18.
- Remove the bottom panel.
- Suspend or immobilize the machine
securely.
- Remove the tension spring. (1)
- Remove the adjusting ring locknut. (2)
- Remove the screw that secures the silent
block holder. (3)
- Remove the engine 2 pins securing it to
the frame linkrod and engine linkrod. (4)
- Remove the engine mounting assembly.
- Remove the circlip. (5)
- Remove the linkrod connecting pin. (6)
3
4
1
2
6
5

PEUGEOT Geopolis 250 Specifications

General

Displacement	244.3 cc
Cooling System	Liquid cooled
Transmission	Automatic CVT
Front Suspension	Telescopic fork
Rear Suspension	Dual shock absorbers
Engine Type	Single cylinder, 4-stroke
Front Tire	120/70-15
Power	22.5 hp
