CVT filter cleaning (03_12)
1. Wash the sponge with water and mild soap.
2. Dry it with a clean cloth and short blasts of compressed air.
CAUTION
IF THE VEHICLE IS USED ON DUSTY ROADS SERVICE THE CVT FILTER MORE
OFTEN TO AVOID DAMAGING THE ENGINE.
03_13
Cooling fluid level (03_13, 03_14, 03_15, 03_16)
Engine cooling is carried out by a forced-circulation coolant system. The cooling circuit
holds coolant consisting of a mixture of 50% de-ionised water and 50% glycol ethyl-
ene-based antifreeze solution with corrosion inhibitors. Recommended coolant: sup-
plied with the vehicle, already mixed and ready for use. For proper engine functioning,
the coolant temperature must be between the 4th and 7th lit segment, as indicated by
the instrument «D» on the digital instrument panel. When the 9th segment lights up,
the icon and all the segments start flashing; stop the engine, let it cool down and check
the fluid level; if the level is OK, contact an Authorised Service Centre.
Check coolant when the engine is cold as indicated in the scheduled maintenance
table.

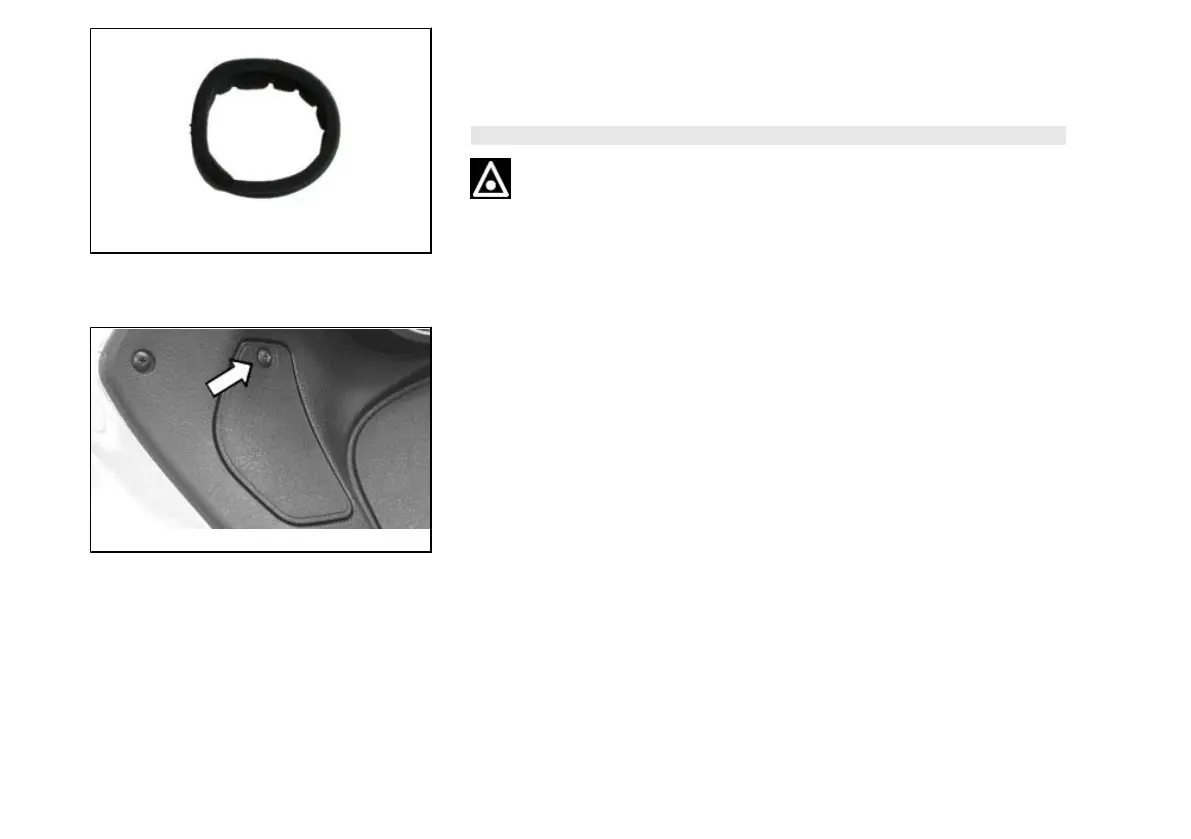

1. Rest the vehicle upright on the stand and remove the screw of the expansion tank
cap shown in the photograph.
2. Remove the expansion tank cap «A» by turning it anticlockwise.
3. Look inside the expansion tank: the fluid level must always be between the min and
the max level
4. If the coolant level is near the minimum mark, top-up when the engine is cold.
