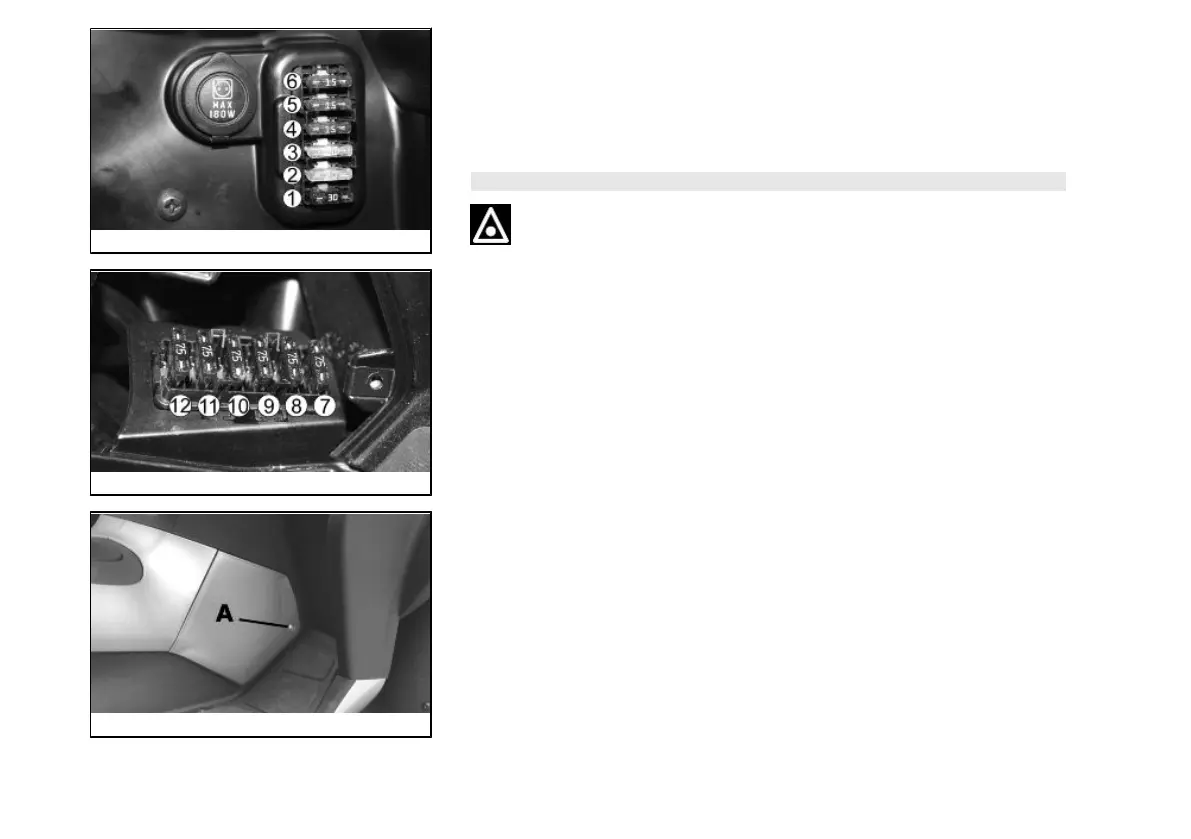

Fuses (03_19, 03_20, 03_21)
The electrical system has twelve fuses to protect the different installation circuits divi-
ded in two fuse boxes. One of them is inside the rear case and the other is inside the
footrest on the right hand. To be able to reach them, loosen the screw "A" and remove
the plastic cover. The chart shows the position and characteristics of the fuses in the
vehicle.
CAUTION
BEFORE REPLACING A BLOWN FUSE, FIND AND SOLVE THE FAILURE THAT
CAUSED IT TO BLOW. NEVER TRY TO REPLACE THE FUSE WITH ANY OTHER
MATERIAL (E.G., A PIECE OF ELECTRIC WIRE).
