Quantity: 4
03_22
03_23
Front light group (03_22, 03_23, 03_24, 03_25, 03_26, 03_27,
03_28, 03_29, 03_30)
To remove the front headlight assembly, proceed as follows:

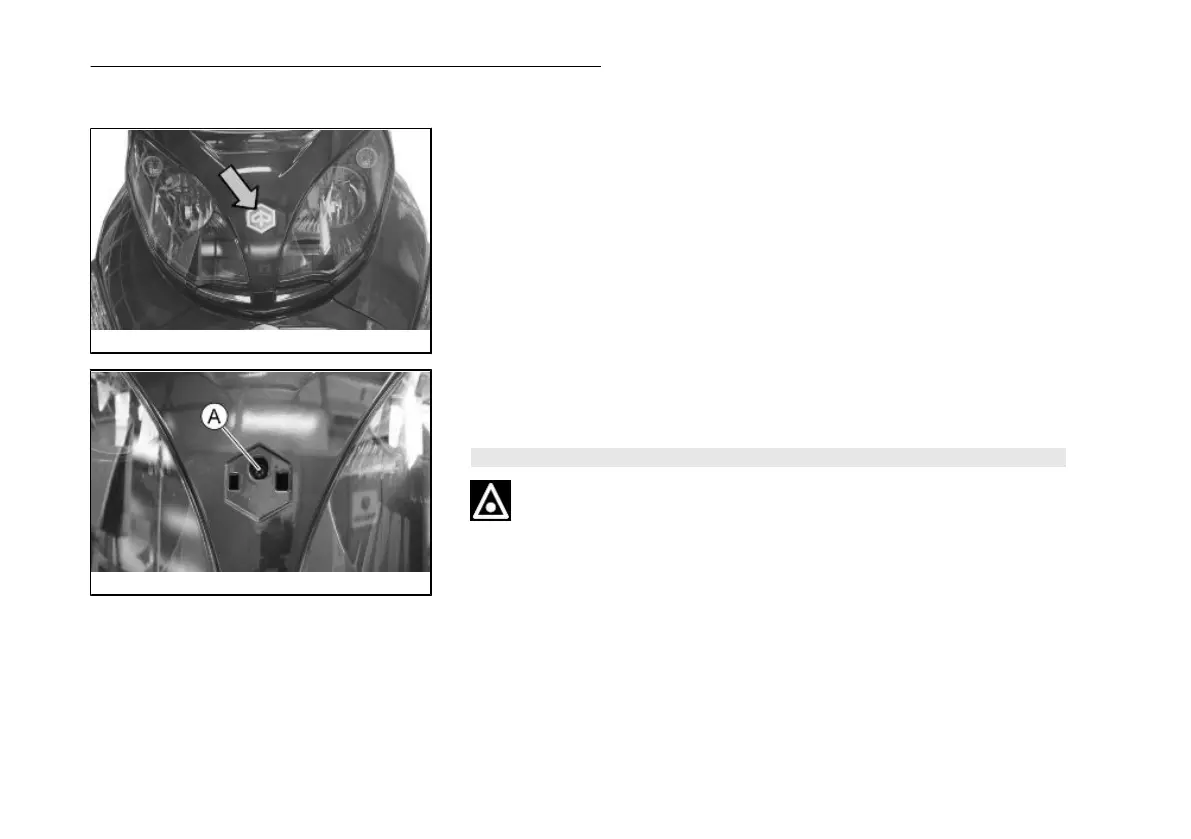

1. Remove the Piaggio clip-on badge
2. Remove the screw «A» and the headlight assembly central cover
3. Remove the two headlamp upper fixing screws «B»
4. Remove the two grille front fixing screws «C »
5. Remove both screws «D» located on the grille and both screws «E» at the
back of the grille.
6. Remove the two screws «F» located inside the front shield
7. Remove the grille
8. Remove the two lower headlight fastener screws «G»
9. Take out the front headlight assembly
Refit the components following the above operations in reversed order
WARNING
HIGH- AND LOW-BEAM BULBS ARE HALOGEN TYPE: DO NOT TOUCH THEM
WITH YOUR FINGERS TO AVOID DAMAGING THEIR FUNCTION.
76
