Checking the brake oil level (03_17)
The front and rear brake fluid reservoirs are both positioned on the handlebar. Proceed
as follows:
1. Rest the vehicle on its centre stand with the handlebars perfectly horizontal;

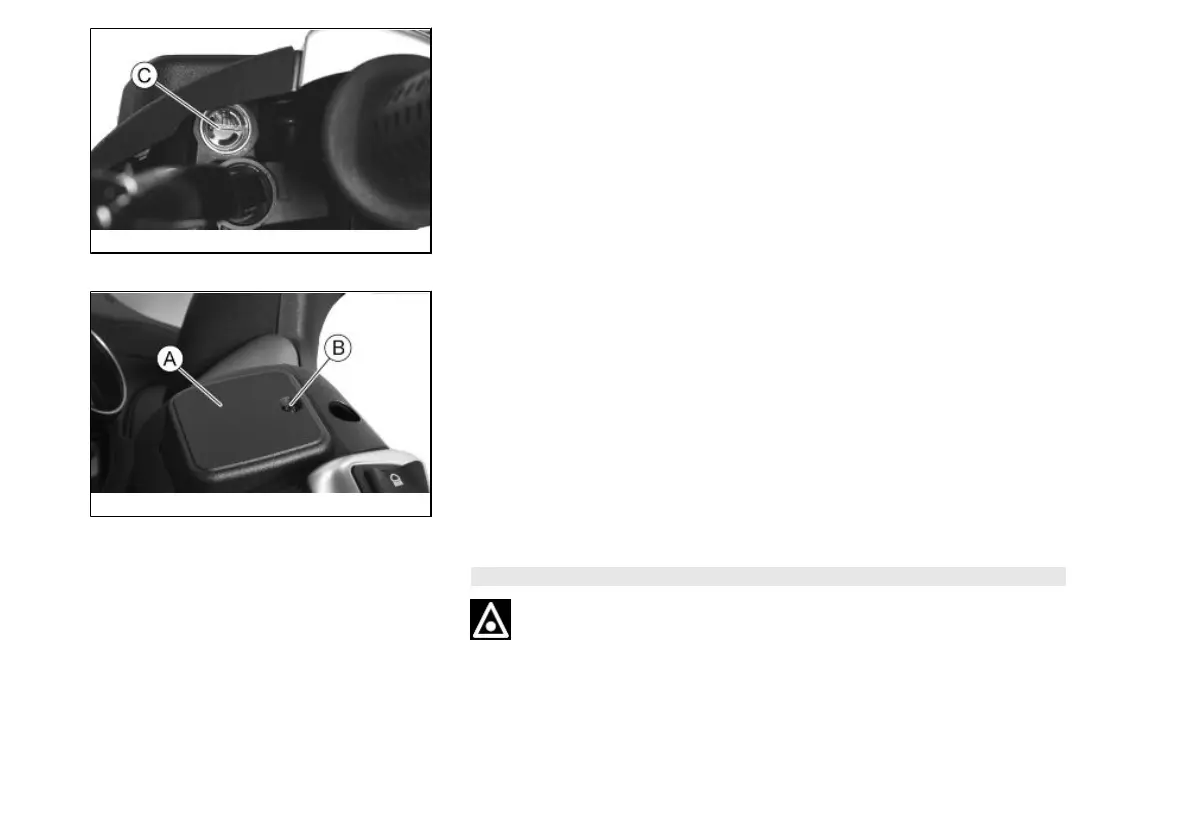

2. Check the liquid through the sight glass «C».
A certain lowering of the level is caused by wear on the brake pads. Should the level
appear to be below the minimum mark, please contact an Authorised Service Centre
or Dealer in order to have the braking system thoroughly checked.
03_18
Braking system fluid top up (03_18)
Proceed as follows:
Loosen the screw «B» and lift the plastic cover «A» in order to access the brake fluid
reservoir. Loosen the two fixing screws and remove the reservoir cover; top-up with
the recommended fluid without exceeding the 'MAX.' mark.
This procedure applies to the rear brake pump top-up operation; follow the same pro-
cedure for the front brake pump.
Under standard climatic conditions, replace fluid as indicated in the scheduled main-
tenance table.
This operation must be carried out by trained personnel; take your vehicle to an au-
thorised Service centre or Dealer.
WARNING
ONLY USE DOT 4 CLASS BRAKE FLUIDS. BRAKING CIRCUIT FLUIDS ARE
HIGHLY CORROSIVE. MAKE SURE THAT IT DOES NOT COME INTO CONTACT
WITH THE PAINTWORK
.
