03_35
03_36
03_37

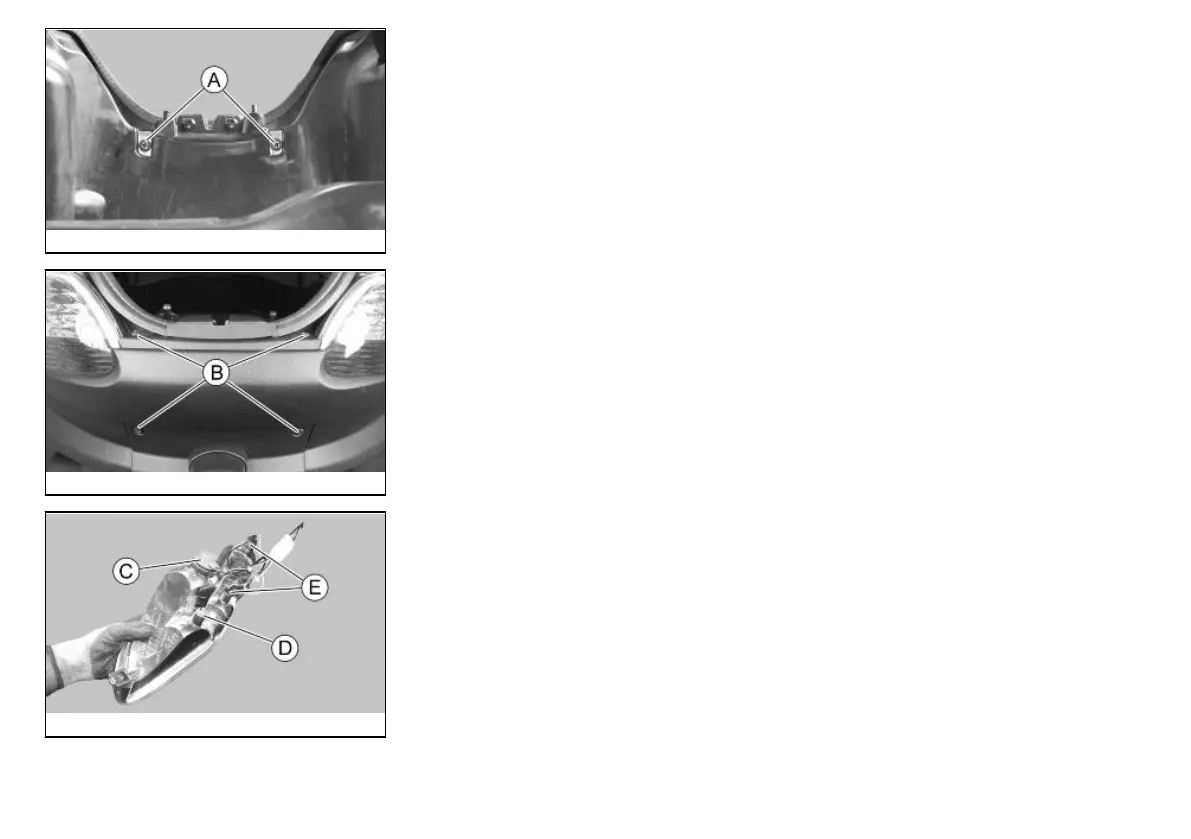

Rear optical unit (03_35, 03_36, 03_37)
To access the bulbs:
- Open the rear case cover and undo the two screws «A».
- Undo the four screws «B» and pull out the headlight assembly from its fitting.
To replace the stop light bulbs «C», hold the bulb holder and turn it anticlockwise. Hold
the bulb and at the same time push it and turn it anticlockwise.
To replace tail light «D» and turn indicator «E» bulbs, remove the rubber bulb holder
paying attention not to damage the cable harness. Hold the bulb and slide it off the
bulb holder.
81
