03_38
03_39

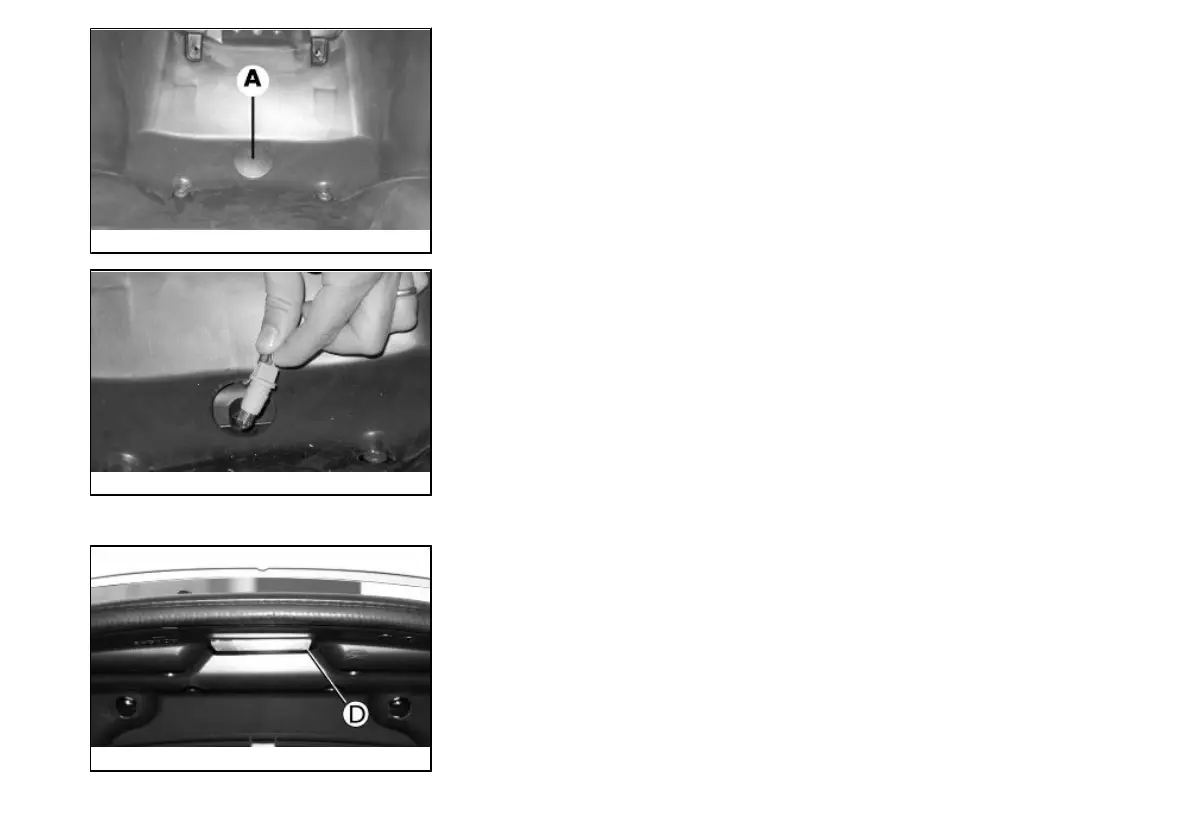

Number plate light (03_38, 03_39)
Open the rear case and remove the rubber «A» shown in the figure without damaging
the plastic parts. Next, slide off the bulb holder.
Remove the bulb afterwards.
03_40
Helmet compartment lighting bulb (03_40)
Open the rear compartment and insert a small plain slot screwdriver in the lateral notch
to detach the snap-on glass «D», then replace the bulb.
82
