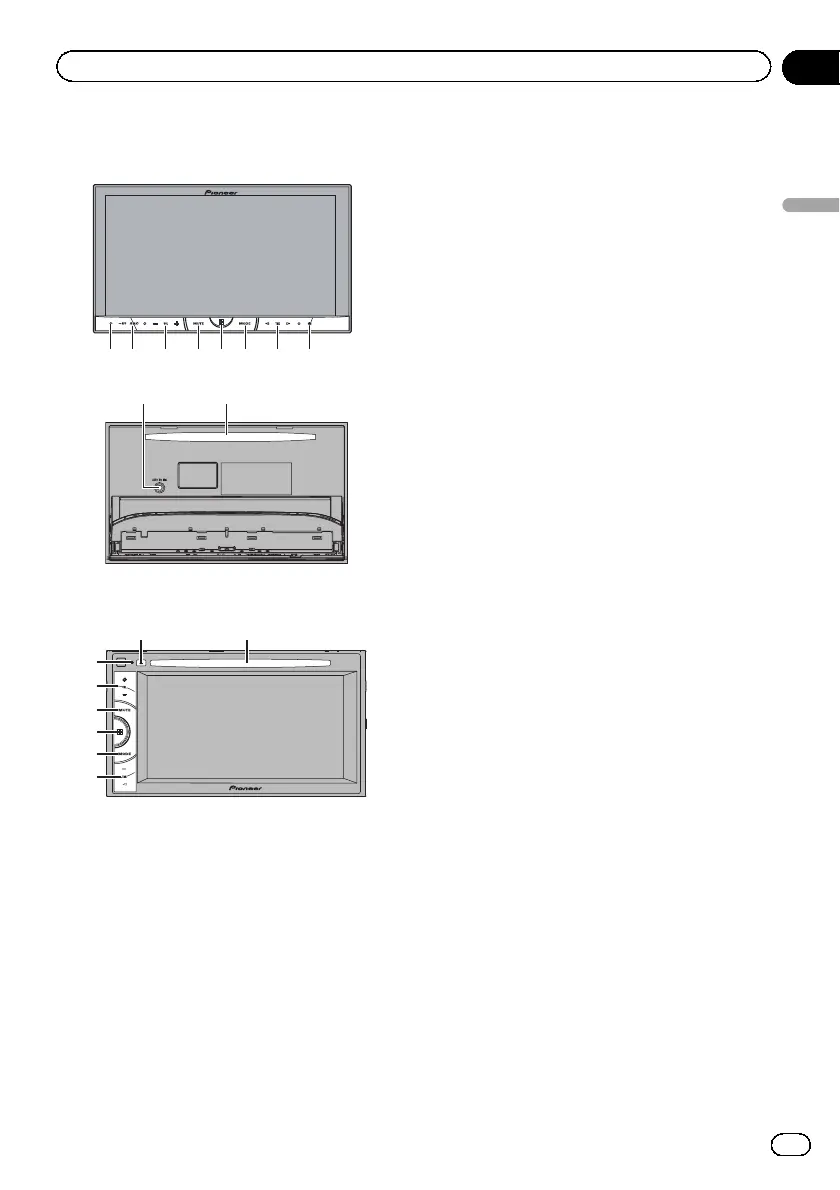

Head unit
AVH-X5600BT
1 2 3 5 6 74
8
9 a
AVH-X3600DAB, AVH-X2600BTand AVH-
X1600DVD
8a
1
3
4
5
6
7
1 RESET
For details refer to Resetting the micropro-
cessor on page 77.
2 SRC/OFF
3 +/– (VOLUME/VOL)
4 MUTE
Press to mute. Press again to unmute.
5 Home button
Displaying the home display.
The display returns to the Launcher screen
while a 3rd-party application is being used
in AppRadio Mode.
Double-clicking the icon on the Launcher
screen returns the display to the home dis-
play.
6 MODE
When RGB input is not used
! Press MODE to turn the display off.
Press MODE again to turn the display
on.
When RGB input is used
! Press and hold MODE to turn the display
off. Press MODE again to turn the dis-
play on.
! When the navigation system is con-
nected, press MODE to switch to the na-
vigation display.
! When an iPhone that is running an appli-
cation that supports AppRadio Mode is
connected, press MODE to switch to the
application display. You can use the ap-
plication by touching the display.
! When a smartphone work with the Mir-
rorLink function is connected, press
MODE to switch to the application dis-
play. You can use the application by
touching the display.
7 c/d (TRK)
8 h (eject)
9 Auto EQ microphone input jack
Use to connect an auto EQ microphone.
a Disc loading slot
Notes
! For details on how to operate a navigation sys-
tem from this unit, refer to its operation man-
ual.
! For details on how to connect an iPod or USB
storage device to this unit, refer to installation
manual.
En
9
Section
03
What’s what
What’s what

Pioneer AVH-X1600DVD Specifications

General

MP3 playback	Yes
CD-R playback	-
Audio formats supported	AAC, MP3, WMA
Video formats supported	DIVX, MPEG1, MPEG2, MPEG4, XVID
Supported radio bands	AM, FM
Preset stations quantity	24
Output power	200 W
Product color	Black
Disc types supported	CD, DVD
Equalizer bands quantity	8
Analog signal format system	NTSC, PAL, SECAM
Aspect ratio	16:9
Display diagonal	6.1 \
Number of OSD languages	9
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FRE, ITA, POR, RUS, TUR
Video in	2
Bluetooth	No
USB version	2.0
Line outputs (RCA)	3
USB ports quantity	1
Cables included	USB
