4.18. Main Battery Pack
There are two Li-ion battery packs available for the HANDY TERMINAL:
Standard Capacity: Li-ion 3.7V/2200mAh/8.1Wh
High Capacity: Li-ion 3.7V/3300mAh/12.2Wh
The Li-ion battery pack is the primary power source for the Handy Terminal as well as for the
internal backup battery.

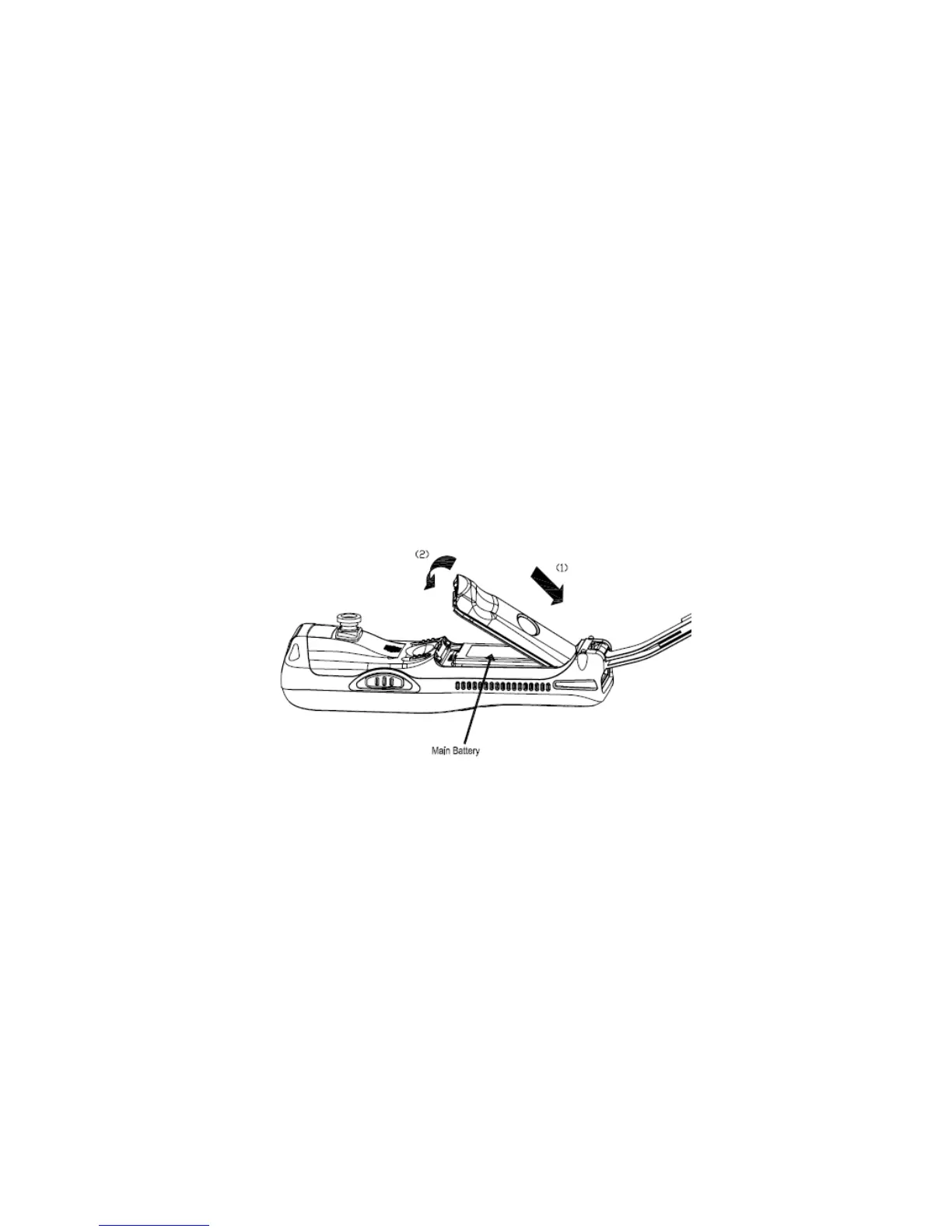

Changing the Main Battery Pack
Before installing a battery pack, press the Power key to put the terminal in Suspend Mode so that
operations are suspended before removing the main power source. Always put the terminal in
Suspend Mode prior to changing the battery. The HANDY TERMINAL is shipped with the battery
separate from the unit. You will need to loosen the hand strap, remove the battery door, insert the
battery, and replace the battery door.
The battery door must be installed prior to booting the unit.
Charging Options
When the battery is installed in the terminal, you can use any of the peripherals listed below to
charge the battery.
• AC Power Supply to DC Power Jack direct.
• Single slot docking cradle/Single slot Ethernet cradle
• Insert the battery in the spare battery charging well in the back of either the Handy Terminal
Docking cradle or Handy Terminal Ethernet cradle.
Charging Time
The standard capacity 2200mAh Li-ion battery pack requires four hours to charge to full capacity,
while the high capacity 3300mAh pack requires six hours.
4.19. Managing Main Battery Power
