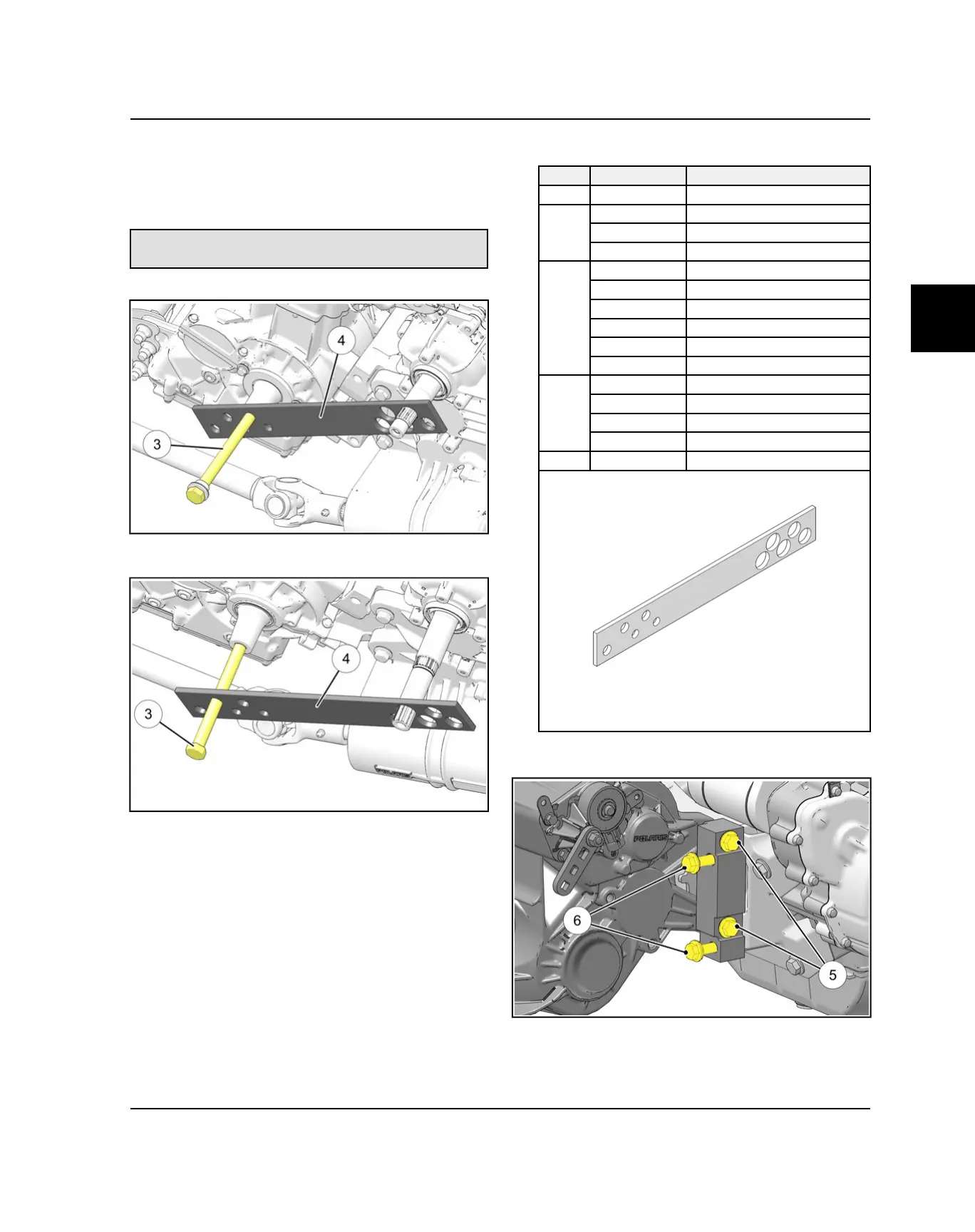

7. Install the Clutch Center Distance Tool onto
transmission input shaft and install the drive clutch
bolt
e
to properly position the clutch center distance.
The pictures below show the tool properly installed
r
.
Clutch Center Distance Tool:
PU-50658-A
2014–2015 Models
2016 Models
PU-50658–A
HOLE
YEAR
VEHICLE DESCRIPTION
1 2012 RZR 570
2
2011-14 RZR 900
2014-15 RZR XP 1000
2013
RANGER 900
3
2014-16 ACE
2015-16
ACE 570
2015-16 RGR ETX
2013–16 RZR 570
2014–16
RANGER 570
2015-16 RANGER 570 Full-Size
4
2014-16
RANGER 900
2015-16 RZR 900
2016 RZR 1000
2016
ACE 900
5 2015-16 RANGER Diesel
i.e. 2015 RZR 900 uses the holes marked with a
4
8. Loosen the two bolts
t
retaining transmission joint
bracket to the transmission on the right side.
9. Align the front transmission mounting holes with
transmission joint bracket mounting holes on engine.
