Park Brake Indicator
This warning is used to notify the operator that the park
brake lever is engaged (if equipped).

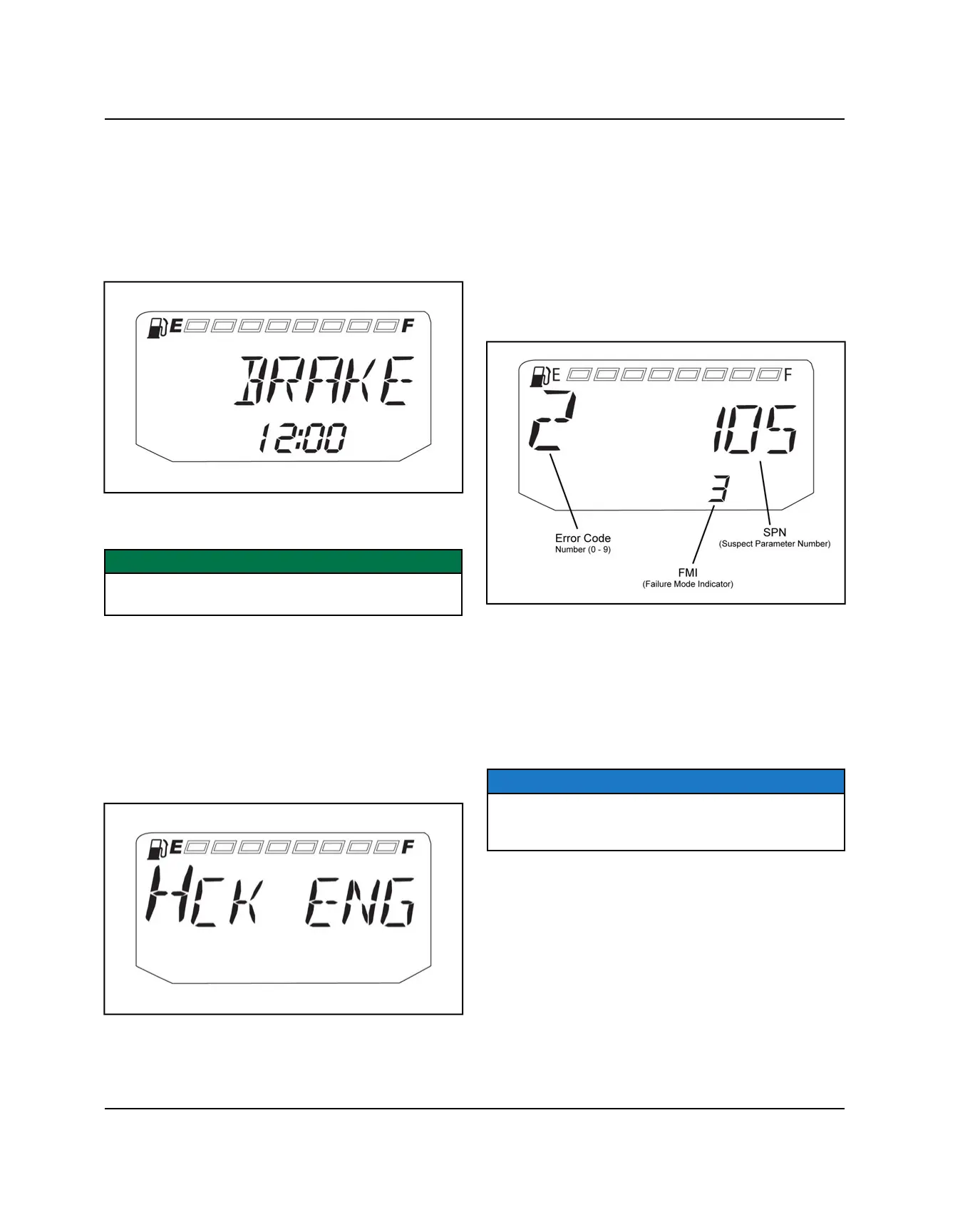

When the park brake is fully engaged, “BRAKE” appears
in the rider information display. Engine speed is limited to
1500 RPM in all gears, except neutral. If throttle is
applied, this limiting feature prevents operation, which
protects the park brake pads from excessive wear.
DIAGNOSTIC MODE
IMPORTANT
Most trouble codes are set as a result of damaged
wiring or a component that was not hooked up correctly.
The diagnostic mode is accessible only when the check
engine MIL has been activated.
Use the following procedure to display diagnostic trouble
codes that were activated during current ignition cycle
causing the MIL to illuminate. Diagnostic trouble codes
will remain stored in the gauge (even if MIL turns off) until
the key is turned off.
1. If the trouble code (s) are not displayed, use the
MODE button to toggle until “CK ENG” displays on
the information display area.
2. Press and hold the MODE button to enter the
diagnostics code menu.
3. A set of three numbers will appear in the information
area.
• The first number (located far left) can range from 0 to
9. This number represents the total number of trouble
codes present (example: 2 means there are 3 codes
present).
• The second number (located top right) can be 2 to 6
digits in length. This number equates to the suspected
area of fault (SPN).
• The third number (located bottom right) can be 1 to 2
digits in length. This number equates to the fault mode
(FMI).
4. Use the trouble code reference table in the EFI
Chapter for a description of each code (see Chapter
4 – Diagnostic Trouble Code List, page ).
5. If more than one code exists, press the MODE button
to advance to the next trouble code.
6. To exit the diagnostic mode, press and hold the
MODE button or turn the ignition key OFF once the
codes are recorded.
NOTE
If there is a diagnostic problem with the power steering
system, the power steering MIL will illuminate and blink
in place of the check engine MIL.
ELECTRICAL
