DRIVE BELT
BELT REMOVAL
NOTE

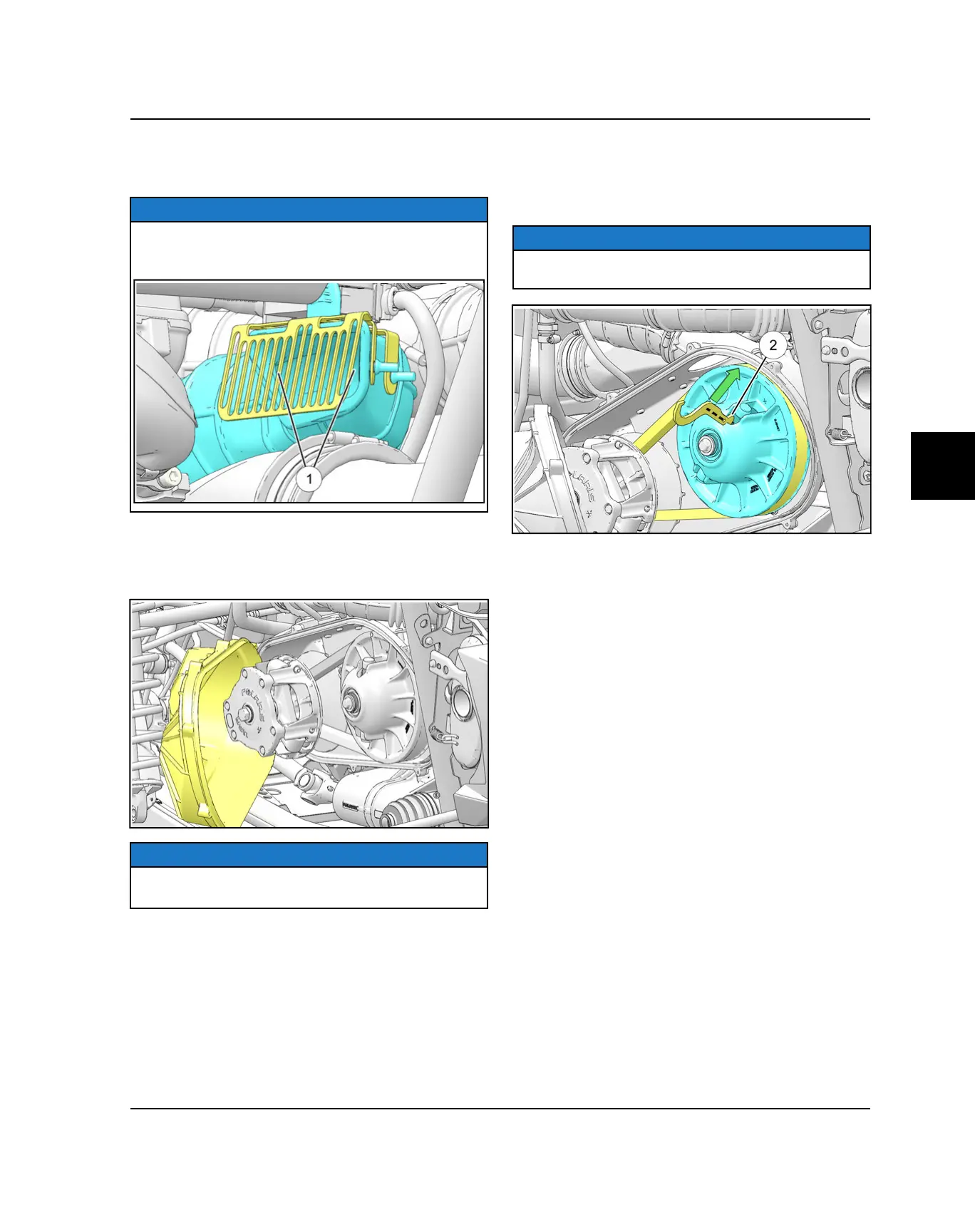

Inspect the entire clutch outlet duct (including the outlet
duct screen) when replacing a drive belt. Remove any
debris found in the outlet duct or outlet duct screen
q
.
1. Remove the eight screws that retain the outer clutch
cover.
2. Maneuver the outer clutch cover outward as shown
below to access the drive belt.
NOTE
Removal of left rear wheel or left rear shock is NOT
necessary for belt replacement.
3. Mark the drive belt direction of rotation so that it can
be installed in the same direction.
4. Insert clutch spreader tool
w
(2877408 or 2878925)
into the driven clutch as shown (tool included with
vehicle’s tool kit).
NOTE
Make sure the tool is square with the moveable sheave
surface of the driven clutch.
5. Rotate tool towards the clutch to open the sheaves.
6. Walk the belt out of the driven clutch and drive
clutch. Remove the belt from the vehicle.
