5. If bearing replacement is required, remove the
retaining ring and heat the stator cover around the
bearing evenly with a heat gun. Tap cover on a soft
work surface to remove the bearing from the
housing. A blind bearing puller can also be used.
Replace bearing if removed.

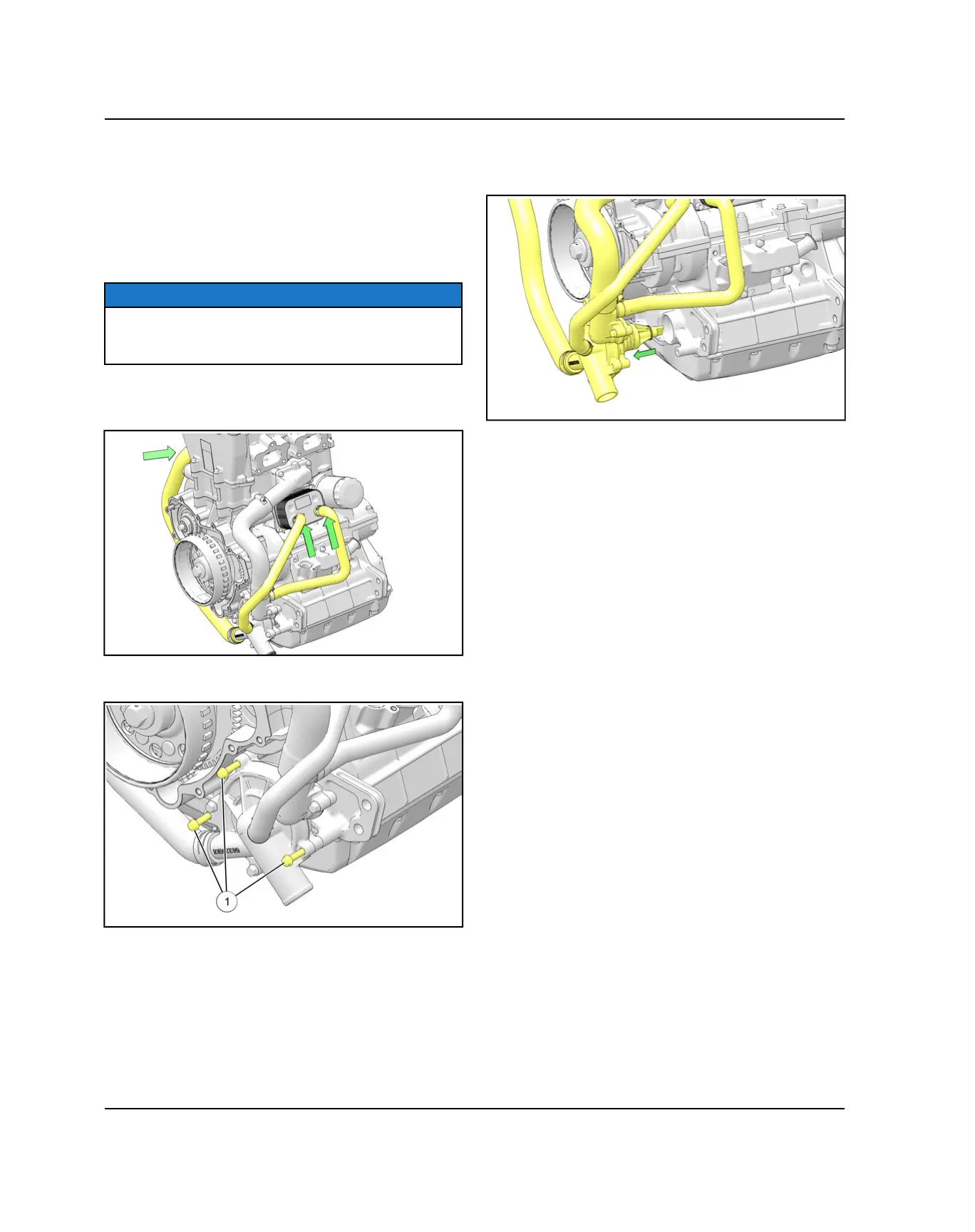

WATER PUMP HOUSING REMOVAL
NOTE
The water pump housing can be serviced with the
engine installed in the chassis (see Chapter 3 – Water
Pump Removal, page 3.21).
1. Remove the coolant lines from the thermostat
housing, cylinder inlet and oil cooler. Leave them all
attached to the water pump housing.
2. Remove the three long gold colored bolts
q
retaining the water pump housing to the engine.
3. Remove the water pump assembly from the engine
by using a twisting motion as you pull out on the
housing.
4. If water pump service is required (impeller or
mechanical seal), refer to Water Pump Service, page
3.23.
